• 7'' Quad AHD DVR TFT Car Monitor Support 4PCS 720P Cameras HDD Recording
  • 7'' Quad AHD DVR TFT Car Monitor Support 4PCS 720P Cameras HDD Recording
  • 7'' Quad AHD DVR TFT Car Monitor Support 4PCS 720P Cameras HDD Recording
7'' Quad AHD DVR TFT Car Monitor Support 4PCS 720P Cameras HDD Recording

7'' Quad AHD DVR TFT Car Monitor Support 4PCS 720P Cameras HDD Recording

Product Details:

Place of Origin: Shenzhen,Guandong
Brand Name: Vanwin Tracking
Model Number: VW702AHD-DVR

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: negotiated
Packaging Details: Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn
Delivery Time: 3-7 working days
Payment Terms: T/T,Western Union,Paypal;
Supply Ability: 5000 pcs per month; 7'' Quad AHD DVR Monitor support 4PCS 720P cameras, TF card and HDD recording
Get Best Price Contact Now

Detail Information

Certification: ISO9001; CE Power Supply: 12V-24V DC Optional
Screen Size: 7 Inch AHD Panel With DVR Quad Picture Resolution: 1024*RGB*600
Screen Type: 16:9 View Angle: Hor. L(70) R(70) Ver. UP(50) DOWN(70)
Placement: Dashboard Car Make: Bus, Truck, Other Special Vehicles
Storage: Hard Disk Cameras: 1~4 720P AHD Cameras
Video Input: 4 Channel AHD Video Input, 1/2/3/4 Image Display Adjustable Trigger: 4 Trigger
High Light:

car video monitors

,

car rear view monitor

Product Description

 7'' Quad AHD DVR Monitor support 4PCS 720P cameras, TF card and HDD recording



The system can work with 1~4 720P AHD cameras to monitor the front, side and back of Truck, Van, Bus, Benz Motor - home, commercial van and can also support 2.5Inch Sata Hard disk (128GB/320GB/500GB/1TB) recording.The resolution is very clear and It's widely used in the Truck and Van for reversing and monitoring.





Specification



Screen 7″digital high definition panel
Aspect Ratio 16:9
Resolution 1024*R.G.B*600
Back light LED, Luminance: 300 cd/m2
Contrast 1000:1
Viewing angle UP—50°,DOWN—70°,LEFT—70°,RIGHT—70°
OSD CONTROL Brightness, contrast, saturation, volume, language (English, simplified Chinese)
System PAL/NTSC automatically
AV input 4 channel AHD video input, 1/2/3/4 image display adjustable, 1 channel audio input, Support 720P@25/30, 720P@50/60, 1080P@25/30
AV output 1 channel HDMI output (Optional)
Panel control Support
Remote control Support
Trigger control 4 channel trigger control
Recording storage device TF card(maximally support 32G),High-capacity SATA 2.5 inch hard driver(128GB)
DVR recording format Support 4 video full-time recording, 1280*720P resolution, 15M per minute for one channel, and 60M for 4 channels, support cyclic covering recording
Video compressed format H.264/MPEG-4 format
Audio recording ADMP compression
Shockproof level 4G
Connector 4PIN or RCA optional
Power supply DC 12V-24V wide voltage power supply, support ACC ignition
Power consumption <8W
Maximum current <800mA
Working temperature -10℃ to 60℃
Storage temperature -20℃ to 70℃
Size 215mm*138mm*65mm
Packing list Power cable, remote control, bracket, hexagon wrench, user manual



Pictures

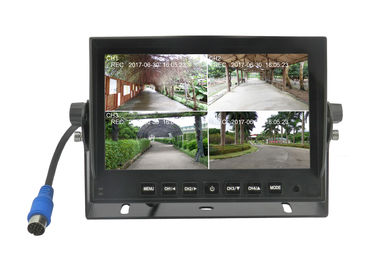

7'' Quad AHD DVR TFT Car Monitor Support 4PCS 720P Cameras HDD Recording 0

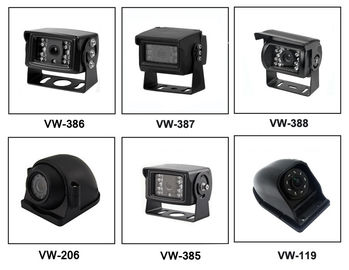

7'' Quad AHD DVR TFT Car Monitor Support 4PCS 720P Cameras HDD Recording 1



BNC and 4-pin cable for optional below

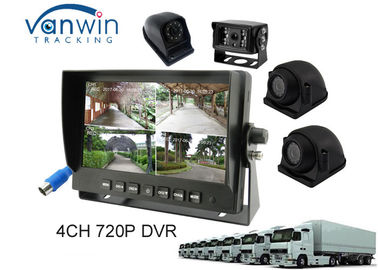

7'' Quad AHD DVR TFT Car Monitor Support 4PCS 720P Cameras HDD Recording 2

7'' Quad AHD DVR TFT Car Monitor Support 4PCS 720P Cameras HDD Recording 3

Packaging & Shipping



1. Box can be color box, white box, OEM



2. Package includes power line, bracket, remote controller, headrest frame, insert card and user manual.



3. Goods will be shipped out within 2~7 days after the receipt of payment.



About US



We are professional manufacturer of 4ch/8ch mobile dvr system with monitors, cameras.They are used for vehicle fleeting management and safety monitoring.The full system are very necessary for buses , truck, school buses,tailer,police cars, bank money carrying cars and so on.

3G remote viewing real time monitoring function let you see what drivers and passengers are doing, where they are with GPS tracking .



Welcome you to test our Quality.
