|Place of Origin:||Shenzhen,China|
|Brand Name:||Vanwin Tracking|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .|
|Delivery Time:||2-3 days for samples,15-30 days for large orders|
|Payment Terms:||T/T or western Union or Paypal|

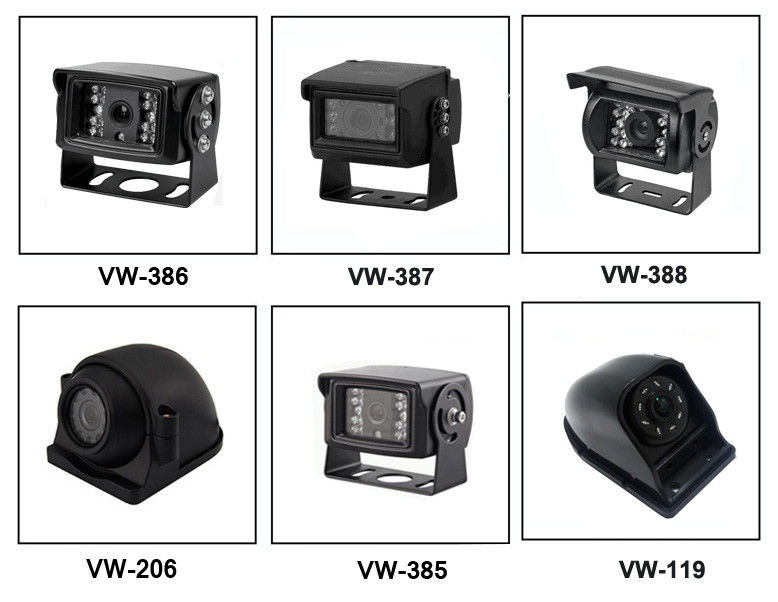

|Supply Ability:||5,000pcs per month; Economical 720P 8CH AHD HDD Mobile DVR with 2TB Hard Disk and 960P cameras|
|Power Supply:||8V-36V||Storage Capacity:||HDD/SSD, Can Support 2TB|
|Basic Function:||8 Cameras Monitoring With 3G Real Time,GPS Tracking,Wi-Fi||Software Support:||Client,Server,Playback Software|
|Applicable:||Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets||Quality:||The World Class Anti-vibration Technology|
|System Upgrading:||Supporting SD Card, Hard Drive Upgrading And Remote Upgrading||Cameras:||1~8 Analog Cameras|
|WIFI Download:||Support||APN:||Can Customize|
|Dimensions:||160(W) X62(H) X200(D) Mm||Operating System:||Linux|
The MDVR supports 8 channel FULL 720P video recording, 3G/4G wireless live video transmission through PC&phone remotely, with GPS tracking on google map, wifi auto downloading, with RJ45, RS232&485, I/O port interface for multiple outer device integration. Its storage (max 2TB) lasts more than 80 days recording.
The complete system includes:
1. H.264 video compression, multi code stream.
2. Support 8CH 720P HD real-time video inputs. Also, support 8CH analog cameras inputs or compound inputs for 4CH HD cameras and 4CH analog cameras.
3. 1CH VGA output is optional.
4. With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable.
5. 8-36V wide voltage power supply, super low power consumption. With overload/ undervoltage/ shortcircuit/ reversing protection, support all vehicles.
6. Support a 1T 2.5 -inch HDD and 1 256G SD card storage
7. With watchdog abnormal restart protection function, it can better protect the machine and video.
8. Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).
9. Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.
10. Support 8CH alarming inputs and 1CH independent alarm input.
11. Optional for 1CH RS232 Serial port or 1CH RS485 extension.
12. Support GPS/G-Sensor.
13. Support remote operation and monitoring by 3G and 4G.
14. Support Wifi and automatic data download.
15. Support ministry of communications agreement, support SMS remote configuration and equipment control.
16. Support voice broadcast, intercom and text schedule dispatch.
17. Support fuel sensor, temperature sensor, POS, LED advertising screen.
18. Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.
19. With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.
20. Support all vehicles, including bus, taxi, truck, school bus, etc.
|Graphics Operation Interface||System parameters can be set through external display and remote controller|
|Security Management||2-level management for user password, administrator password, supporting encrypted transmission|
|Video and||Input||8-channel video input|
|Output||1channel video output; 1.0Vp-p, 75Ω|
|OSD||Character superposition function, information superposition of time and date, device ID &GPS, etc.|
|Compression||H.264. Hisilicon hi-performance processor.|
|Frame Rate||PAL: 200FPS, up to 25FPS/CH; NTSC: 240 FPS, up to 30 FPS/CH|
|Resolution||CIF, HD1 &D1 for option,|
|Quality||Grade 1~ grade 5 for option|
|Audio||Input& Output||8CH input, 1CH output|
|Storage||1PC 2.5”HDD max 2TB&1PC Max 128GB SD card for mirror recording, supporting cycle recording.|
|Recording||File System||Special security file system|
|Video Strategies||Recording at startup by default, support timed recording, recording triggered by alarm and manual recording|
|Video Search||by time, type, storage device and other conditions|
|Input/ Output||8-CH on/off signal alarm input, 2-CH on/off alarm output|
|Alarm||Alarm Recording||Prerecording function 15S before alarm, duration of recording upon alarm is optional from 30s ~ 30min|
|Storage Space Alarm||Supporting alarm for storage space|
|WIFI||Embedded Wi-Fi module;|
|Network||GPS||Support external GPS|
|PTZ Control||Support PTZ control realized by local|
|Power Supply||1. ACC on/off2. Hard drive lock on/off3. Delayed shutdown 4. Timed on/off|
|Input Voltage||DC:+9V ~ +36V|
|Power-off Protection||With patented UPS power supply technology for 3~5S recording uponsudden power cut to ensure video data safety|
|Power Consumption||<10W in normal operation; <0.5W in standby mode|
|Others||Working Temperature||Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃|
|Working Humidity||10% to 95%|
