4CH Dual SD slots digital video recorder 1080P GPS WIFI 4G MDVR with VGA, RJ45, Intercom

4CH Dual SD slots digital video recorder 1080P GPS WIFI 4G MDVR with VGA, RJ45, Intercom

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW616HD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month,
Get Best Price Contact Now

Detail Information

Power Supply: 8V-36V Video Inputs: CVBS Support, 4 Channels Analog, 4CH 1080P
Storage Capacity: SD Card, Max 2*256G, 2* SD Card Car Cameras: Analog Or AHD 720P/960P/1080P
Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Dimensions: 140*116*35MM
OEM/ODM: Support Alarm Inputs: 4CH Level Alarm Inputs
Weight: 0.75kg VGA Port: Support
High Light:

digital video recorder sd card dvr

,

sd card video recorder dvr

Product Description

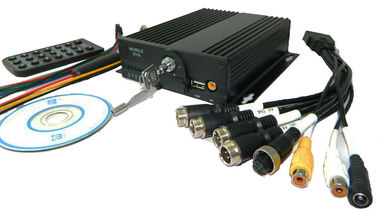

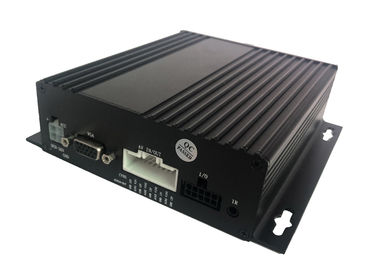

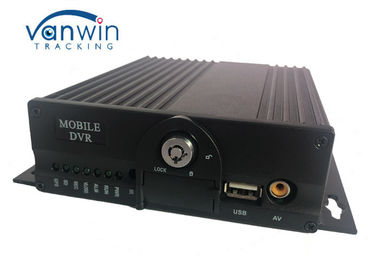

4CH Dual SD slots digital video recorder 1080P GPS WIFI 4G MDVR with VGA, RJ45, Intercom

It is a small device to monitor the vehicles what happens inside and outside.

1. The MDVR case comes with very strong aluminum alloy, very strong and sturdy.
2. It can support both AHD/Analog Camera, 1080P/720P/D1 recording.
3. The MDVR increases Video Protection Trchnology, UPS technology and World Class Anti-Vibration
Technology to protect the DATA when accident. It's very important for the vehicle security monitoring.
4. G-sensor function record the crash level in car accident, thus for people to analyse the reason of car accident.


Main Features

1. H.264 video compression, multi code stream.
2. Support 4CH 1080P HD real-time video inputs.
3. With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite,
SD card data loss and SD card couldn’t be found, keep the data completed and stable.
4. 8-36V wide voltage power supply, super low power consumption. With overload/ undervoltage/ shortcircuit/ reversing protection, support all vehicles.
5. Support SD cards, at maximum 256G for single SD card
6. With watchdog abnormal restart protection function, it can better protect the machine and video.
7. Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).
8. Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.
9. Support 4CH alarming inputs
10. Support voice broadcast, intercom and text schedule dispatch.
11. Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.
12. With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.
13. Support all vehicles, including bus, taxi, truck, school bus, etc.

Main Specifications


 Specifications
Operating SystemLinux
LanguageEnglish, Chinese or Customized language.
Video CompressionH.264
OSDSupport for time, date, vehicle ID, image, etc.
GUIOSD InterfaceCan external connect to LCD and set the system specifications by remote

Video
and Recording

Video Input

4CH 720P AHD/Analog/Compound video input, aviation connector,
1.0Vp-p, 75Ω

Video Output

1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω.
Support 1CH full screen and 4CH division.

Preview

Single/4CH Pictures Preview, support full screen of event trigger or
back view of car reversing

Recording
Resolution

Support 1080P/720P/D1/HD1/CIF, support at maximum 4 Channels 1080P

Recording
Quality

Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest.
Video Rate

PAL:100 fps,CCIR625line,50 scenes
NTSC:120 fps,CCIR525line,60 scenes
CIF:256Kbps - 1.5Mbps,8 grades image quality for optional
HD1:600Kbps - 2.5Mbps,8 grades image quality for optional
D1:800Kbps - 3Mbps,8 grades image quality for optional
720P:800Kbps - 4Mbps,8 grades image quality for optional

Recording Mode

Default automatic video recording, support ignition video recording,
schedule video recording, alarm video recording, etc

AudioAudio Input4CH Aviation connector inputs
Audio Output1CH Aviation connector output,
Compression formatG.726, Speed for 8KB/s
Alarm Input4CH level alarm inputs
Video StorageStorageSupport at maximum 1*256G high capacity SD card

Upgrade
Method

Support SD card local upgrade, remote upgrade automatically
File FormatH.264 general video format
File SystemFAT32 exclusive file system
Video PlaybackVideo SearchSearch recorded video files by recording time and recording method
PlaybackSupport at max 4 channel synchronous playback, suspend, forward, backward
Support 2/4/8/16 times speed forward or backward
Security ManagementUser Password or administrator password management, support screen locked
Expansion functionsSeries port expansionSupport external equipment connecting for advertising screen, PTZ control, fuel sensor, etc

Power and
Consumption

Power Management

Self-adaptive wide voltage input, with protect functions for overload, undervoltage, short circuit, reversing connection, etc


Power and ConsumptionInput VoltageDC:+8V - +36V
Output Voltage+12V/1.5A,+5V/1.5A
ConsumptionNormal working < 14W, standby < 0.5W
Working environmentTemperature-30℃ - +70℃
Humidity20% - 80%
SD Card Type SeriesDimension140*116*35MM
Weight

0.75KG
