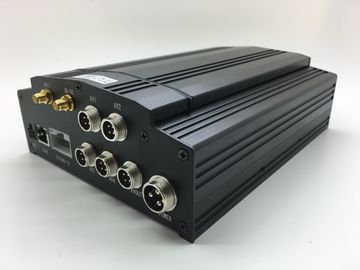

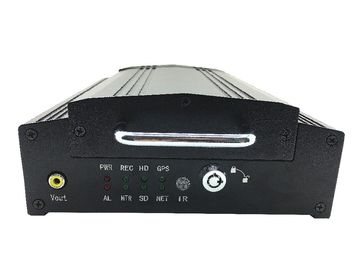

3G / 4G WIFI AHD 4 Channel Vehicle Mobile DVR CCTV Camera Surveillance Systems for bus

3G / 4G WIFI AHD 4 Channel Vehicle Mobile DVR CCTV Camera Surveillance Systems for bus

    • 3G / 4G WIFI AHD 4 Channel Vehicle Mobile DVR CCTV Camera Surveillance Systems for bus
    • 3G / 4G WIFI AHD 4 Channel Vehicle Mobile DVR CCTV Camera Surveillance Systems for bus
    • 3G / 4G WIFI AHD 4 Channel Vehicle Mobile DVR CCTV Camera Surveillance Systems for bus
    • 3G / 4G WIFI AHD 4 Channel Vehicle Mobile DVR CCTV Camera Surveillance Systems for bus
    • 3G / 4G WIFI AHD 4 Channel Vehicle Mobile DVR CCTV Camera Surveillance Systems for bus
  • 3G / 4G WIFI AHD 4 Channel Vehicle Mobile DVR CCTV Camera Surveillance Systems for bus

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW619HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month; 3G / 4G WIFI AHD 4 Channel Vehicle Mobile DVR CCTV Camera Surveillance Systems for bus
    Contact Now
    Detailed Product Description
    Power Supply: 8V-36V Storage Capacity: Any 2.5'' SATA HDD, Like 500GB / 1TB / 2TB HDD
    Basic Function: 4 Cameras Monitoring , 3G GPS WIFI Optional Support: All Softwares And Technology ,Service
    Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets OEM / ODM: Support Or Customize
    Shock Resistance: The World Class Level With Military Use Type: Vehicle Security System
    Warranty: 16 Months IR Port: Support
    Oil Sensor: Optional Size: 160(W) X62(H) X200(D) Mm

    3G / 4G WIFI AHD 4 Channel Vehicle Mobile DVR CCTV Camera Surveillance Systems for bus



         The MDVR allows you to track and view your vehicles in REAL TIME via live video camera streaming from up to 4 cameras on your truck, car ,bus,taxis, police cars, excavators, petorl trucks, law enforcement vehicles, and other various types of vehicles with people counting,RFID card reader,fuel consumption sensor,LED display functions etc.

          Using the Internet, GPS, and Mobile CCTV technology, you can now view your vehicles, drivers and cargo from your office, wherever they are in the country. Our cloud-based Control Room software also allows you track your fleet, identifying speed, location, fuel-level and many more.

    Vehicle Tracking that lets you SEE the FULL picture.

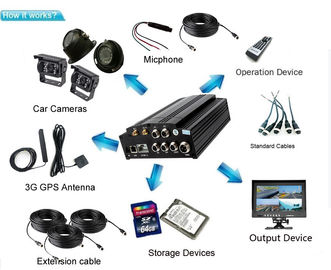

    4 Channel Vehicle Mobile DVR main Features

    • H.264 video code compression, dual stream output;
    • G.726 audio compression format, 4-channel audio input, 1-channel audio output.
    • Power-off protection in emergency, adopting special UPS technology which ensures the device to work for 3-5 seconds after the external power supply is cut, thus ensure complete video data and avoid file damage;
    • Real-time local recording, multiple formats for selection, supporting full screen of single channel or multi-window stitching upon accidents;
    • Switch signal interface, 8-channel alarm input, 2-channel alarm output;
    • PTZ control;
    • Multiple recording modes: record upon startup, timed recording and triggered recording;
    • Special file system: can be played with Special playback software, supporting 1-channel or 4-channel or 8-channel synchronous playback;
    • Data storage, supporting a 2.5” hard drive and 1 SD card with the capacity up to 128G; supporting dual-stream mirror image video recording, SD card recording upon loss of hard drive, supporting hard drive heating, applying drawer-type hard drive box;
    • Wide voltage design, 9-36V DC wide voltage input, suitable for various vehicles; DC 12V/2.5A output;
    • Rapid startup, capable of entering normal working mode within 25 seconds after startup; supporting on/off with key switch, timed on/off and delayed on/off, etc.;
    • Optional functions:

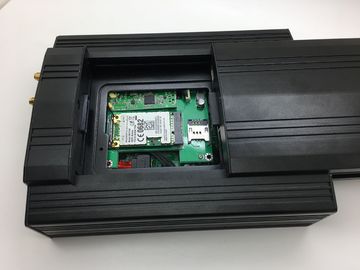

      • 3G/4G wireless transmission;
      • Wi-Fi wireless transmission;
      • GPS, G-sensor acceleration sensor, with precise time correction;
      • IP calling;
      • Dialing;

    4 Channel Vehicle Mobile DVR main Specification

    Item Description
    OS Linux3.0
    Graphics Operation Interface System parameters can be set through external display and remote controller
    Security Management 2-level management for user password, administrator password, supporting encrypted transmission
    Video and Preview Video Input, Output 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω
    OSD Character superposition function, information superposition of time and date, device ID and GPS, etc.
    Video Compression Format Compression coding. Applying Hisilicon hi-performance processor.
    Dual-Stream Supported
    Preview Function Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images
    Frame Rate PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
    Resolution AHD 720P,D1, HD1 ,CIF 4channel
    Quality Grade 1 to grade 8 for selection (1 is the best)
    Bit Rate

    CIF: 300Kbps ~ 1.2 Mbps, 8-level bit rates for selection

    HD1: 500Kbps ~ 1.5 Mbps, 8-level bit rates for selection

    D1: 600Kbps ~ 2Mbps, 8-level bit rates for selection

    720P: 800Kbps ~ 4Mbps, 8-level bit rates for selection

    Audio Audio Input, Output 4-channel input, 1-channel output
    Compression Format G.726 coding
    Recording Storage Medium Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;
    File Format/ System Special file system
    Video Strategies Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
    Video Search Searching by time, type, storage device and other conditions
    Video Playback Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files
    Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
    Alarm Alarm Input/ Output 8-channel on/off signal alarm input, 2-channel on/off signal alarm output
    Alarm Recording duration of recording after alarm can be adjusted from 10s ~ 999S
    Storage Space Alarm Supporting settings for alarm of storage space
    Function Alarm GPS overspeed alarm, acceleration alarm, motion detection alarm
    Communication Ports 485,RS232, RJ45 10M/100M self-adaptable network interface
    Wireless Transmission (Optional) Supporting Wi-Fi;
    GPS (Optional) Supporting external GPS
    PTZ Control Supporting PTZ control realized by local;
    Parameter Configuration Supporting parameter configuration functions for mobile DVR coding channel;
    G-Sensor Embedded
    System Upgrading Supporting SD card, hard drive upgrading and remote upgrading
    Power Supply and Power Consumption Power Supply

    1. ACC on/off

    2. Hard drive lock on/off

    3. Delayed shutdown

    4. Timed on/off

    Input Voltage DC:+9V ~ +36V
    Output Voltage +12V@5*0.5A;
    Power-off Protection With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
    Power Consumption <10W in normal operation; <0.5W in standby mode
    Operating Environment Temperature Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
    Humidity 10% to 95%
    Dimensions 160(W) x62(H) x200(D) mm.
    Weight Net: 2200g, Gross: 3500g







    3G / 4G WIFI AHD 4 Channel Vehicle Mobile DVR CCTV Camera Surveillance Systems for bus

    3G / 4G WIFI AHD 4 Channel Vehicle Mobile DVR CCTV Camera Surveillance Systems for bus
    Application

    1.2.1. Environmental Adaptability

    Applicable to various applications, and the indexes are detailed as follows:


    Item Index
    Upper limit of temperature for storage 65℃
    Upper limit of temperature for operation 55℃
    Lower limit of temperature for storage -40℃
    Lower limit of temperature for operation 0℃, or -25℃ with hard drive heating module
    Working altitude –300 ~ 3048m (10, 000 ft)
    Transmission altitude –300 ~ 12, 192m (40, 000 ft)
    RH 20%~95%
    Max. temperature gradient 20℃/h
    Vibration threshold (Unpowered)

    No greater than 5mm p-p (5 – 22Hz)

    49m/s2 (5.0G) (22 – 500Hz)

    Vibration threshold (Normal operation)

    No greater than 1.0mm p-p (5 - 22Hz)

    9.8 m/s2(1.0G) (22 – 500Hz)

    Impact threshold (Unpowered)

    No greater than 1200G, (11, 760m/s2)

    (duration 1 ms, 1m height, semi sine wave)

    Impact threshold (Normal operation)

    No greater than 500G, (4, 900m/s2)

    (duration 2 ms, semi sine wave)

    IP of enclosure IP54




    Installing tips (we list the school bus solution for exampls)


    1. Install security cameras inside the vehicle so you may monitor and record every seat within the cameras field of view. Depending on the size of your school bus and layout you may need several cameras to accomplish this.

    2. Install cameras on the outside of the bus facing the drivers view towards the road ahead and behid. You also have the option of installing a dashboard camera looking out from the inside to the road ahead or behind.

    3. Consider using cameras to cover blind spots for the driver.

    4. Install a small monitor next to or above the driver so they may monitor the students more closely.
