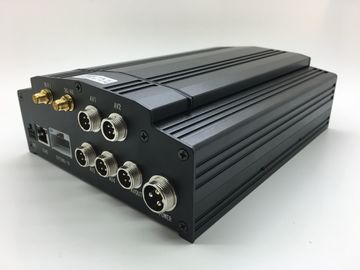

Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles

Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles

    • Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles
    • Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles
    • Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles
    • Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles
    • Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles
  • Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW619HD-GSW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month;
    Contact Now
    Detailed Product Description
    Power Supply: 8~36V Storage Capacity: HDD/SSD, Can Support 2TB
    Functions: 4G 3G, GPS Tracking, Wi-Fi, G-sensor, 6CH Alarm Input, Lan Port Software Support: Client, Server, Playback Software
    Accessories: HDD, Cameras, Extension Cables, Monitor, Sound Pik-up Weight: 2200g
    Network: WCDMA, CDMA2000, TDD-LTE, FDD-LTE Oil Sensor: Support
    People Counter: Option Bus Router: Support
    RS232 / RS485: Support Alarm Inputs: 6channel

    Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles


    We offer 2CH / 4CH / 8CH mobile DVR for any vehicle.
    Our mobile DVRs are designed to withstand the rigors of continuous use in a range of vehicles, on the road and off it.
    Our vehicle DVR comes with advanced features like built-in GPS, Hotspot, video protection technology and world class anti-vibration technology, H.264 compression to save storage space, and various options to easily offload your video evidence.


    Main Features



    4CH, Support 4 cameras

    H.264 compression format

    64GB SD Card

    2.5“ SATA 2TB Hard disk

    GPS tracking

    3G remote control

    Built-in WIFI for option

    6 alarm input, 1 alarm output

    2 way intercom

    Remote oil&power cut-off

    Mirror recording in SD card

    Patent UPS continuously working to protect data upon sudden power-off

    Customized GPS data format sending(optional)

    Built-in Heater(optional)

    Lockable, metal HDD handle, protect HDD efficiently

    Watermark and Time/Date stamp in exported images

    RS232/485 interface;

    Wide applications: this MDVR is used for bus, trucks, trailors, cargo, van, vehicles, forklift, car...



    The complete kit:


    1. One MDVR with 3G GPS WIFI G-sensor for Option
    2. 1~4 cameras with extension cables
    3. One monitor for the driver
    4. HDD 500GB/1TB/2TB
    5. Micphone, Talkback device, Panic button

    1. Standard configuration
    MDVR host 1pc
    Power cable 1pc
    I/O Cable 1pc
    Standard cables 5pcs
    Remote control 1pc
    keys 1pc
    3G/4G Antenna 1pc
    WIFI Antenna 1pc
    GPS Antenna 1pc
    User manual 1pc

    2. Optional configuration
    Cameras
    LCD monitor
    Extension cables
    Storage card
    Talkback device/Micphone
    Oil sensor/People Counter and ect.
    Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles

    Specification



    Item

    Description

    OS

    Linux

    Graphics Operation Interface

    System parameters can be set through external display and remote controller

    Security Management

    2-level management for user password, administrator password, supporting encrypted transmission

    Video and Preview

    Video Input, Output

    4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

    OSD

    Character superposition function, information superposition of time and date, device ID and GPS, etc.

    Video Compression Format

    Compression coding. Applying hisilicon hi-performance processor.

    Dual-Stream

    Supported

    Preview Function

    Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images

    Frame Rate

    PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

    Resolution

    CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most

    Quality

    Grade 1 to grade 5 for selection (descending)

    Bit Rate

    CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

    HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

    D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

    Audio

    Audio Input, Output

    4-channel input, 1-channel output

    Compression Format

    G.726 coding

    Recording

    Storage Medium

    Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology;

    File Format/ System

    ASF/FAT32

    Video Strategies

    Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

    Video Search

    Searching by time, type, storage device and other conditions

    Video Playback

    Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

    Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

    Alarm

    Alarm Input/ Output

    6-channel on/off signal alarm input, 1-channel on/off signal alarm output

    Alarm Recording

    Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

    Storage Space Alarm

    Supporting settings for alarm of storage space

    Function Alarm

    GPS overspeed alarm, acceleration alarm, motion detection alarm








    It can support remote online monitoring by computer and Mobile APP.



    Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles

    Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles







    Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles

                                                                            Back View



    Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles

                                                                                  Side View

    Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles



                                                                      Front View



    Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles

    Compact 4 Channel 3G Mobile DVR With Built-In GPS Mirror Recording In SD Card for Vehicles

    If you're interested in the system above, please be free to get the high-quality solution and system with us.
