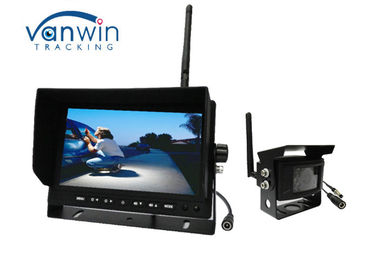

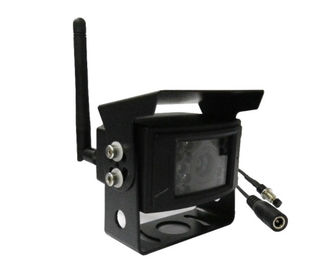

Wireless HD TFT Car Monitor , 24V Wireless Reversing camera Kit for Truck

Wireless HD TFT Car Monitor , 24V Wireless Reversing camera Kit for Truck

    • Wireless HD TFT Car Monitor , 24V Wireless Reversing camera Kit for Truck
    • Wireless HD TFT Car Monitor , 24V Wireless Reversing camera Kit for Truck
    • Wireless HD TFT Car Monitor , 24V Wireless Reversing camera Kit for Truck
  • Wireless HD TFT Car Monitor , 24V Wireless Reversing camera Kit for Truck

    Product Details:

    Place of Origin: Shenzhen,Guandong
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-M710WHD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: negotiated
    Packaging Details: 10 PCS PER CTN; G.W.: 10.41 KGS; SIZE: 54.7*36*21.6 CM
    Delivery Time: 3-7 working days
    Payment Terms: T/T,Western Union,Paypal;
    Supply Ability: 5000 pcs per month; Wireless rearview car 7 inch monitor truck wireless camera kit
    Contact Now
    Detailed Product Description
    Power Supply: 12-24V Screen Size: 7 Inch
    Resolution: 1024*RGB*600 Placement: Dashboard
    Application: Van, Trailer, Truck TV System: PAL&NTSC Automatically
    Video Input: 1Way 2.4G Wireless Video Input,2ways Wire Video Input And 1way Audio Input,4ways Trigger Connector: 4PIN/RCA/BNC
    Brightness: 300cd/m2

    Wireless HD TFT Car Monitor , 24V Wireless Reversing camera Kit for Truck



    The wireless camera kit is widely used for truck, van with its easy installation and stable performance.

    No need the wire, everyone can install it easily. It can support front and rearview cameras inputs,

    make driver drive much safer.



    24V Wireless Reversing camera Kit Specification



    Screen ratio 16:09
    Resolution 1024*R.G.B*600
    Backlight LED, 300 cd/m2
    Viewing angle Hor. L(70) R(70) Ver. UP(50) DOWN(70)
    Working temperature -20~+70 degrees
    Working humidity 85%RH
    Storage temperature -30~+85 degrees
    Power supply DC9-30V
    Delay time 120mS
    Power flow TYPE:300mA, Max.380mA
    Power consumption <5W
    AV input 1 channel 2.4G wireless video signal input
    Trigger 1 trigger control, with parting guide line
    Operating frequency range 2400 ~ 2483.5MHz *
    System PAL/NTSC automatically
    Transmission bandwidth 3Mbps
    Receive sensitivity -88dBm@4MHZ
    Spread spectrum mode Frequency hopping
    2.4G wireless transmission distance 150M in open area
    Shockproof level 4G
    Power cable 5.5female connector+pairing switch
    Weight 0.54KGS
    Size 180mm*121mm*24mm

    The charact-eristicof 2.4G digtal wireless:Highiy secure,use the digital code receiver technology ,
    will not be affected by other similar equipment interference or to interfere with other equipment ,
    the image of good stability, there will have a delay, but does not affect the normal revesing image



    Packaging & Shipping



    1. Box can be color box, white box, OEM

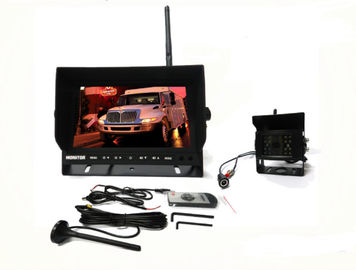

    2. Package includes power line, bracket, remote controller, headrest frame, insert card and user manual.



    3. Goods will be shipped out within 2~7 days after the receipt of payment.



    Application



    It's widely used in truck, van, , Wagon, lorry and ect.



    Wireless HD TFT Car Monitor , 24V Wireless Reversing camera Kit for Truck
