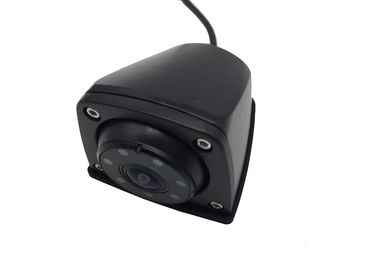

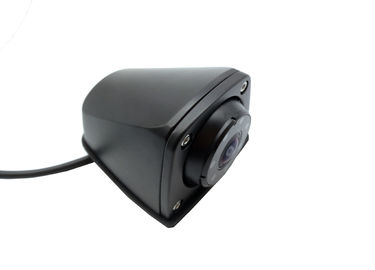

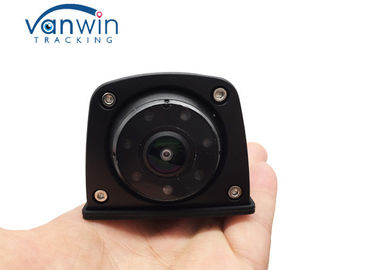

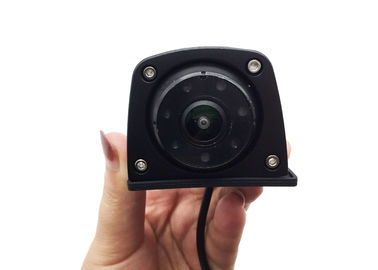

Eyeball Bus Surveillance Camera 7 IR Lights With 1.58mm Waterproof Lens

Eyeball Bus Surveillance Camera 7 IR Lights With 1.58mm Waterproof Lens

    • Eyeball Bus Surveillance Camera 7 IR Lights With 1.58mm Waterproof Lens
    • Eyeball Bus Surveillance Camera 7 IR Lights With 1.58mm Waterproof Lens
    • Eyeball Bus Surveillance Camera 7 IR Lights With 1.58mm Waterproof Lens
    • Eyeball Bus Surveillance Camera 7 IR Lights With 1.58mm Waterproof Lens
    • Eyeball Bus Surveillance Camera 7 IR Lights With 1.58mm Waterproof Lens
  • Eyeball Bus Surveillance Camera 7 IR Lights With 1.58mm Waterproof Lens

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-C390

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiated
    Packaging Details: Neutral carton box package by default
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 5,000 pcs per month; Eyeball Widest Viewing Angle truck / Bus Camera used for side, front, rear with 170 degree
    Contact Now
    Detailed Product Description
    Type: Bus / Truck Camera Image Sensor: CMOS Or AHD For Optional
    TV System: PAL Or NTSC Power: DC12 Or 24V
    Color: Black Warranty: 12 Months
    LED: 7 IR Lights Waterproof: Yes
    Sensor: CCD / CMOS Application: MDVR, DVR Or Reversing System For Any Vehicle

     Eyeball Widest Viewing Angle Truck / Bus Camera used for side, front, rear with 170 degree

    The bus / truck camera is new arrival which can be used for many vehicle, like van, truck, school bus, city bus with good night vision and special design. It can work with mobile dvr, dvr, monitor or other monitoring / reversing system.

    Specifications:


    Image sensor

    Pixel Plus PO3100K CMOS 1/3

    DSP chip

    AVS7110 image correction chip

    Resolution

    480TVL

    Illuminance

    0.1Lux,infrared night vision

    Viewing angle

    1.58mm waterproof lens, 170 degree


    Mirror as default (Could set mirror&non-mirror switchable)

    System

    PAL system as default (Could set PAL&NTSC switchable)

    Reference line

    Off as default (Could be opened by key)

    Display mode

    170 degree wide single image display as default (Could set overlook, horizontal two images, vertical two images, three images display and 170 degree wide single image display switchable)

    Appearance and Application

    Aluminium alloy material, out-hanging design, suitable for bus, truck and small vehicles

    Waterproof level

    IP67

    Shockproof level

    4G

    Connectors

    4PIN or RCA

    Power supply

    DC12-24V

    Power consumption

    About 1.8W

    Maximum current

    150MA

    Key control

    Support single key adjustment

    Output

    1 channel CVBS output

    Working temperature

    -20℃ to 70℃

    Storage temperature

    -30℃ to 80℃

    Size

    67*55*43.5mm

    Weight

    About 170G

    Accessories

    Extension cable, DC 5.5 male connector extension cable, hexagon screws, bracket, user manual


    Outline Drawing
    Eyeball Bus Surveillance Camera 7 IR Lights With 1.58mm Waterproof Lens

    Eyeball Bus Surveillance Camera 7 IR Lights With 1.58mm Waterproof Lens
    Eyeball Bus Surveillance Camera 7 IR Lights With 1.58mm Waterproof Lens

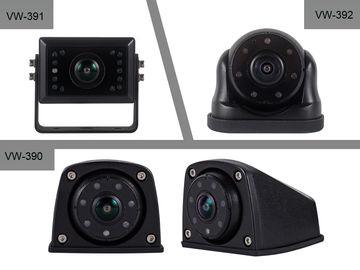

    Other Wide Cameras Models for Option

    Eyeball Bus Surveillance Camera 7 IR Lights With 1.58mm Waterproof Lens
