130 Degree Bus Surveillance Camera , AHD Vehicle DVR Camera With 12 Months Warranty
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-C392 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000 pcs per month; AHD 720P Mini Car Dome Cameras with Mirror/Non-mirror ON or OFF, 130 Degree |
|
Detail Information |
|||
| Type: | Bus / Truck Camera | Image Sensor: | 1/3" CMOS |
|---|---|---|---|
| TV System: | PAL Or NTSC | Power: | DC12 Or 24V |
| Style: | Dome Camera | Warranty: | 12 Months |
| LED: | 7 IR Lights | Sensor: | CCD / CMOS |
| Lens: | 2.1mm | IR Distance: | 10M |
| High Light: | mobile surveillance cameras,car reversing camera |
||
Product Description

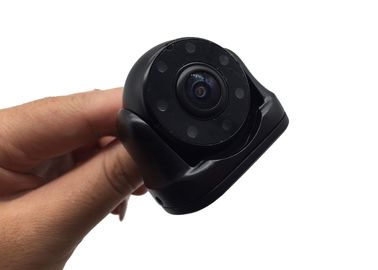

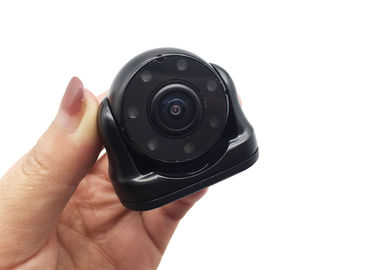

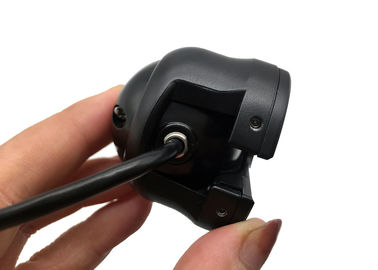

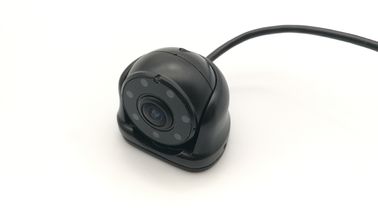

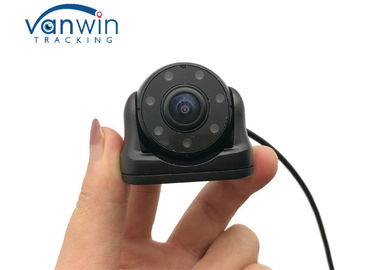

AHD 720P Mini Car Dome Cameras with Mirror / Non-mirror ON or OFF, 130 Degree
The bus / truck camera is new arrival which can be used for many vehicle, like van, truck, school bus, city bus with good night vision and special design. It can work with mobile dvr, dvr, monitor or other monitoring / reversing system.
Main Features
- Image sensor: CMOS 1/3
- Definition: 960H
- Effective pixels: 976(H)*592(V)
- System: PAL or NTSC or PAL&NTSC adjustable
- Viewing angle: horizontal 130 degree
- Image mode: mirror or non-mirror or mirror&non-mirror adjustable
- Parking guide line: without or with or adjustable
- Appearance: aluminium alloy material, out-hung design
- Waterproof level: IP69K
- Power supply: DC12V
- Application: suitable for car, bus, truck
Specifications
| SPECS | Model No.:VW-C392 |
| Image sensor | PixelPlus PO3100K CMOS 1/3 |
| DSP chip | AVS7110 image correction chip |
| Resolution | 480TVL |
| Illuminance | 0.1Lux,infrared night vision |
| Viewing angle | 2.1 mm waterproof lens, 170 degree |
| Image | Mirror as default (Could set mirror&non-mirror switchable) |
| System | PAL system as default (Could set PAL&NTSC switchable) |
| Reference line | Off as default (Could be opened by software) |
| Appearance and Application | Aluminium alloy material, out-hanging design, suitable for bus, truck and small vehicles |
| Waterproof level | IP67 |
| Shockproof level | 4G |
| Connectors | 4PIN or RCA |
| Power supply | DC12-24V |
| Power consumption | About 1.8W |
| Maximum current | 150MA |
| Key control | Support single key adjustment |
| Output | 1 channel CVBS output |
| Working temperature | -20℃ to 70℃ |
| Storage temperature | -30℃ to 80℃ |
| Size | 67*55*43.5mm |
| Weight | About 170G |
| Accessories | hexagon screws, user manual |
Outline Drawing
