Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle

Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle

    • Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
    • Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
    • Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
    • Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
    • Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
  • Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-C391

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiated
    Packaging Details: Neutral carton box package by default
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 5,000 pcs per month; 170 degree wide horizontal angle bus / Truck / Trailer Camera for Front, side and back view
    Contact Now
    Detailed Product Description
    Type: Bus / Truck Camera Image Sensor: 1/4" CMOS
    TV System: PAL Or NTSC Power: DC12 Or 24V
    Waterproof: IP69 Warranty: 12 Months
    LED: 12 IR Lights Sensor: CMOS
    Lens: 2.1mm IR Distance: 10M
    Resolution: 720P, 1.0MP Application: Bus, Truck, Van, Trailer, Ship And Ect.

    170 degree wide horizontal angle bus / Truck / Trailer Camera for Front, side and back view

    The wide bus / truck camera is new arrival which can be used for many vehicle, like van, truck, school bus, city bus with good night vision and special design. It can work with mobile dvr, dvr, monitor or other monitoring / reversing system.



    Main Features

    1. Image sensor: CP7210 CMOS 1/4
    2. Resolution 720P, 1.0MP
    3. Effective pixels: 1280(H)*720(V)
    4. System: PAL or NTSC or PAL&NTSC adjustable
    5. Viewing angle: horizontal 170 degree
    6. Image mode: mirror or non-mirror or mirror&non-mirror adjustable
    7. Parking guide line: without or with or adjustable
    8. Appearance: aluminium alloy material, out-hung design
    9. Waterproof level: IP69K
    10. Power supply: DC12V
    11. Application: suitable for car, bus, truck

    Specifications



    SPECS Model No.:VW-C391
    Image sensor

    CP7210 CMOS 1/4

    DSP chip AVS7110 image correction chip
    Resolution

    720P / 1.0MP

    Illuminance 0.1Lux,infrared night vision
    Viewing angle 2.1 mm waterproof lens, 170 degree
    Image Mirror as default (Could set mirror&non-mirror switchable)
    System PAL system as default (Could set PAL&NTSC switchable)
    Reference line Off as default (Could be opened by software)
    Appearance and Application Aluminium alloy material, out-hanging design, suitable for bus, truck and small vehicles
    Waterproof level IP67
    Shockproof level 4G
    Connectors 4PIN or RCA
    Power supply DC12-24V
    Power consumption About 1.8W
    Maximum current 150MA
    Key control Support single key adjustment
    Output 1 channel CVBS output
    Working temperature -20℃ to 70℃
    Storage temperature -30℃ to 80℃
    Size 67*55*43.5mm
    Weight About 170G
    Accessories hexagon screws, user manual


    Outline Drawing

     Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle

    Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle

    Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle

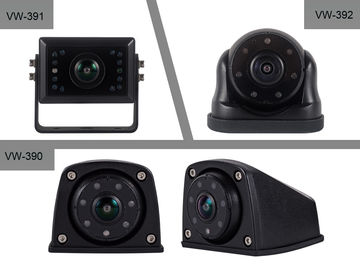

    Other Wide Cameras Models for Option

    Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
