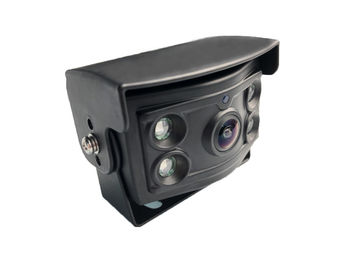

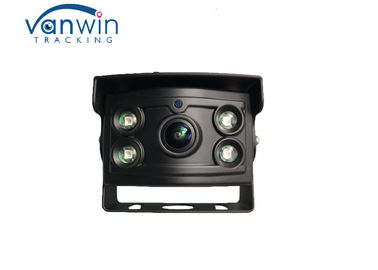

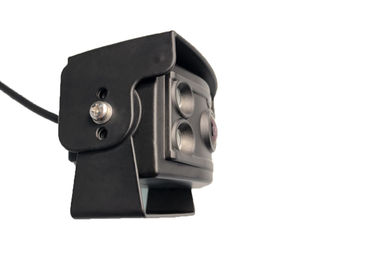

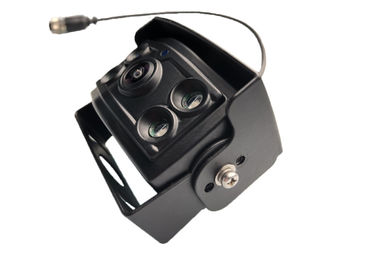

Wide Angle Bus Surveillance Camera , Waterproof Car Reversing Camera With Night Vision
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-C393 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000 pcs per month; New Arrival HD wide angle night vision Waterproof Backup reverse Rearview Camera for Bus Truck Van |
|
Detail Information |
|||
| Type: | Backup Camera | Image Sensor: | CCD / CMOS |
|---|---|---|---|
| TV System: | PAL Or NTSC | Waterproof: | IP69 |
| Warranty: | 12 Months | LED: | 4 IR Lights |
| IR Distance: | 10M | Resolution: | 960P, 1.3MP |
| Application: | Bus, Truck, Van, Trailer, Ship And Ect. | Connector: | Aviation And RCA Connector For Option |
| High Light: | mobile surveillance cameras,car reversing camera |
||
Product Description
New Arrival HD wide angle night vision Waterproof Backup reverse Rearview Camera for Bus Truck Van
Main Specifications
| Sensor | 1/3 PC1099CMOS | 1/3 SONY CCD | 1/3 AHD 0130/H65 |
| Resolution | 976(H) x 592(V) | N:752×494 pixels P: 752×582 pixels | AHD 960P 1.3MP |
| TV line | 700TVL | 600TVL | 1200TVL |
| LENS | 1.78mm | 1.78mm | 1.78mm |
| Min illumination | 0Lux (LED ON) | 0Lux (LED ON) | 0Lux (LED ON) |
| IR led | 4pcs | 4pcs | 4pcs |
| Night Vision distance | 35ft | 35ft | 35ft |
| Waterproof | IP68 | IP68 | IP68 |
| View angle | 145° | 150° | 155° |
| Power voltage | 12V | 12V | 12V |
| Operation Temp | -20℃~+70℃ | -20℃~+70℃ | -20℃~+70℃ |
| Reverse guide | optional | optional | optional |
Main Features
- Image sensor:1/3 AHD 0130/H65
- Resolution AHD 960P 1.3MP
- Effective pixels: 1280(H)*960(V)
- System: PAL or NTSC or PAL&NTSC adjustable
- Viewing angle: horizontal 155 degree
- Image mode: mirror or non-mirror or mirror&non-mirror adjustable
- Parking guide line: without or with or adjustable
- Appearance: aluminium alloy material, out-hung design
- Waterproof level: IP69K
- Power supply: DC12V
- Application: suitable for car, bus, truck

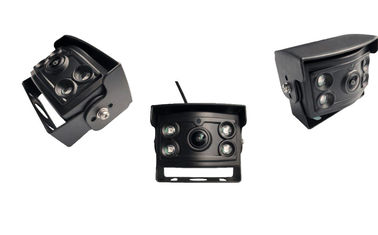

Other Wide Cameras for Option
The wide bus / truck camera is new arrival which can be used for many vehicle, like van, truck, school bus, city bus with good night vision and special design. It can work with mobile dvr, dvr, monitor or other monitoring / reversing system.
Want to Know more details about this product
