Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW618HD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month, 720P H.264 SD Card Car Security AVI Mobile DVR Recorder with GPS
Get Best Price Contact Now

Detail Information

Features: 3G And GPS Optional,basic Monitoring Power Supply: 8V-36V
CVBS: Support Storage Capacity: 2*128G SD Cards
I/O Cables: Yes, 6CH Alarm Inputs And 2CH Alarm Output AHD Cameras: 720P/960P
Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets RJ45 Port: Support
Dimensions: 141(L)×133(W)×43(H)mm WIFI Download: Support
IR Port: Support AVI Format: Support
High Light:

digital video recorder sd card dvr

,

sd card video recorder dvr

Product Description

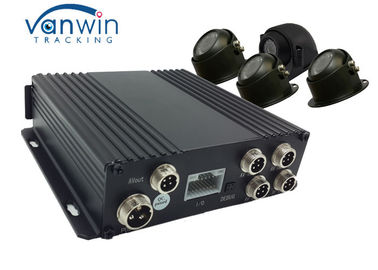

720P H.264 SD Card Car Security AVI Mobile DVR Recorder with GPS



It is a small device to monitor the vehicles what happens inside and outside.



1. The MDVR case comes with very strong aluminum alloy, very strong and sturdy.
2. It can support both AHD/Analog Camera, 720P/D1 recording.
3. The MDVR increases Video Protection Trchnology, UPS technology and World Class Anti-Vibration Technology to protect the DATA when accident. It's very important for the vehicle security monitoring.
4. G-sensor function record the crash level in car accident, thus for people to analyse the reason of car accident.

The complete system:

1. One MDVR with 3G GPS WIFI G-sensor for Option
2. 1~4 cameras with extension cables
3. One monitor for the driver
4. Dual SD cards optional, 2*128GB
5. Micphone, Talkback device, Panic button



Main Features

  • SD card for storage, max 2*128G
  • GPS tracking  and 3G remote control realtime monitoring optional
  • UPS technology to protect sudden power off
  • The Power and mainboard are integrated with much better quality
  • G-sensor ,RS232/485 interface,RJ45 lan port,6ch alarm input
  • Mini size and light on weight
  • World class anti-vibration technology for over 8 years lifetime
  • High end products for Military dep or government usage



Main Specifications





Item

Description

OS

Linux

Graphics Operation Interface

System parameters can be set through external display and remote controller

Security Management

2-level management for user password, administrator password, supporting encrypted transmission

Video and Preview

Video Input, Output

4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

OSD

Character superposition function, information superposition of time and date, device ID and GPS, etc.

Video Compression Format

Compression coding. Applying Hisilicon hi-performance processor.

Dual-Stream

Supported

Preview Function

Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images

Frame Rate

PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

Resolution

CIF, HD1 and D1 for selection, max 4*720P

Quality

Grade 1 to grade 5 for selection (descending)

Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

Audio

Audio Input, Output

4-channel input, 1-channel output

Compression Format

G.726 coding

Recording

Storage Medium

Supporting dual SD card, which supports up to 32G

File Format/ System

ASF/FAT32

Video Strategies

Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

Video Search

Searching by time, type, storage device and other conditions

Video Playback

Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

Alarm

Alarm Input/ Output

6-channel on/off signal alarm input, 1-channel on/off signal alarm output

Alarm Recording

Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

Storage Space Alarm

Supporting settings for alarm of storage space

Function Alarm

GPS overspeed alarm, acceleration alarm, motion detection alarm

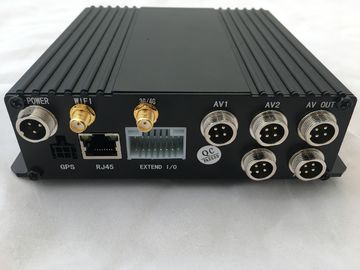

Communication Ports

RS232, RJ45 10M/100M self-adaptable network interface

Wireless Transmission (Optional)

Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection;

Compatible with GPRS, EDGE;

Embedded Wi-Fi module;

GPS (Optional)

Supporting external GPS

Remote Data Transmission Channel Selection

Supporting 3G, Wi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies;

PTZ Control

Supporting PTZ control realized by local ad client software;

Parameter Configuration

Supporting parameter configuration functions for mobile DVR coding channel;

G-Sensor

Embedded

System Upgrading

Supporting SD card and remote upgrading

Power Supply and Power Consumption

Power Supply

1. ACC on/off

2. Delayed shutdown

3. Timed on/off

Input Voltage

DC:+8V ~ +36V

Output Voltage

+12V@4*0.5A; +5V@0.5A

Power-off Protection

With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

Power Consumption

<10W in normal operation; <0.5W in standby mode

Operating Environment

Temperature

Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

Humidity

10% to 95%

Dimensions

141(L)×133(W)×43(H)mm





FAQ



1.Q: Does the MDVR support Hard drive and SD card?

A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.

The storage capacity can be from 32GB to 2TB.



2. Q: Is it difficult to install MDVR into the vehicle?

A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.

And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.

3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,

is it available?

A: Definitely yes!

The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.

In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,

PTZ camera, and so on.



4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?

A: Yes, we have SDK ready and welcome your OEM customized order!



RJ45 Port 720P SD Card Mobile DVR , Security AVI Mobile DVR Recorder With GPS 0RJ45 Port 720P SD Card Mobile DVR , Security AVI Mobile DVR Recorder With GPS 1

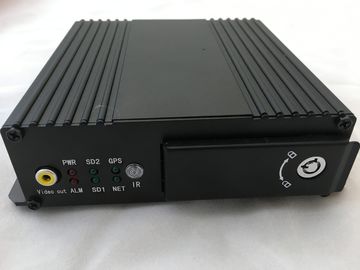

How to install the HDD/SD card&SIM Card?



RJ45 Port 720P SD Card Mobile DVR , Security AVI Mobile DVR Recorder With GPS 2

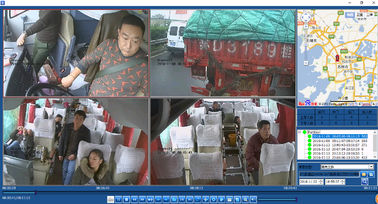

The player software to playback in PC



RJ45 Port 720P SD Card Mobile DVR , Security AVI Mobile DVR Recorder With GPS 3



It can support 3G /4G GPS WIFI for option



RJ45 Port 720P SD Card Mobile DVR , Security AVI Mobile DVR Recorder With GPS 4

CMS for PC&Mobile Phone



In the CMS platform, you can see the live real-timely video, GPS information, customization,

alarm logs, speed and ect.



RJ45 Port 720P SD Card Mobile DVR , Security AVI Mobile DVR Recorder With GPS 5



More details, pls freely contact us.
