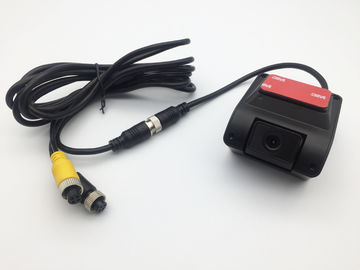

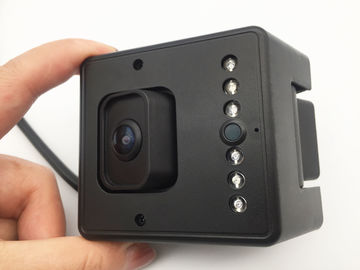

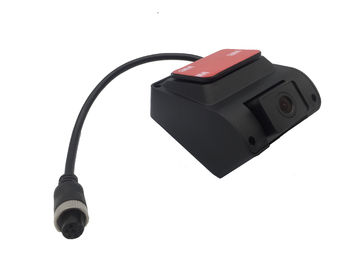

Windscreen Dual Lens Inside Vehicle Hidden Camera Surveillance Recorder System

Windscreen Dual Lens Inside Vehicle Hidden Camera Surveillance Recorder System

    • Windscreen Dual Lens Inside Vehicle Hidden Camera Surveillance Recorder System
    • Windscreen Dual Lens Inside Vehicle Hidden Camera Surveillance Recorder System
    • Windscreen Dual Lens Inside Vehicle Hidden Camera Surveillance Recorder System
    • Windscreen Dual Lens Inside Vehicle Hidden Camera Surveillance Recorder System
  • Windscreen Dual Lens Inside Vehicle Hidden Camera Surveillance Recorder System

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-518

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiated
    Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
    Delivery Time: 2-3 days for samples, 5-10 days for large orders
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 5,000pcs per month; Windscreen dual lens inside car cameras surveillance recorder system with 6IR good night vision
    Contact Now
    Detailed Product Description
    Type: Inside Car Camera Resolution: CCD 600TV L/ 720P / 960P Optional
    TV System: PAL Or NTSC IR Cut: YES
    Chip Mode: AHD Camera Or Analog Camera IR Lights: 6PCS
    Material: Metal Housing Lens: 2.8MM & 2.1MM
    Power: 12V DC Angle: 105 Degree / 140 Degree

    Windscreen dual lens inside car cameras surveillance recorder system with 6IR good night vision



    Main Features



    • Dual camera with one body Mini vehicle wide view Car Camera;

    • It can record in the front of car(outside) and cab inside at the same time;

    • Special design for Taxi /car /Suv/Truck inside use.

    • Horizontal view angle:130 degree,can synchronous take driver and passenger’s video recording;

    • Excellent night-vision,clear image,little noise

    • When IR light is ON,it won’t have infrared visible line,so that won’t distract driver’s sight, so it can be safe driving.

    • 960P/720P AHD, 2.8mm/2.1mm lens(100&150 degree)



    Main Specifications



    Model VW-518 dual car Cameras
    Image Sensor 960P AHD 960P AHD AR0130+NVP2431H
    Synchronization INT
    Scanning 2:1 Interlace
    Horizontal Resolution 1280(H)x960(V)
    Horizontal angle 130 degree(wide view)
    IR LED 6pcsΦ8 IR LED
    IR Distance 5m
    Front View Cam High-resolution CMOS,2.8m lens
    Inside View Cam High-resolution CMOS,2.1m lens
    Audio With Audio
    Minimum Illumination 0Lux(IR ON)
    Gamma modification 0.45
    Gain control Auto
    White Balance Auto
    Electronic shutter 1/60(1/50)~1/100,000 sec
    Video output 1.0Vp-p Composite Video Output,75ohm
    S/N Ratio More than 48dB
    Operational Voltage DC12V
    Operational Temperature (- 25℃~+85℃)
    Application use Vehicle include taxi, bus, car inside use.
    Body size 82.7x69x39mm



    The inside car camera is working with MDVR or monitor system.



    Windscreen Dual Lens Inside Vehicle Hidden Camera Surveillance Recorder System

    Windscreen Dual Lens Inside Vehicle Hidden Camera Surveillance Recorder System

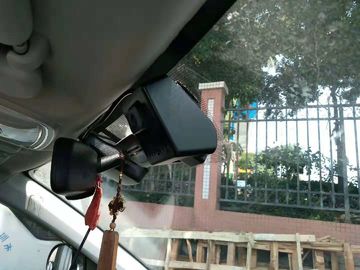

    Effect Picture



    Windscreen Dual Lens Inside Vehicle Hidden Camera Surveillance Recorder System

    Windscreen Dual Lens Inside Vehicle Hidden Camera Surveillance Recorder System
