360 Degree SD Card Mobile DVR High Definition Mini Basic 4CH AHD With 128GB TF Card

360 Degree SD Card Mobile DVR High Definition Mini Basic 4CH AHD With 128GB TF Card

    • 360 Degree SD Card Mobile DVR High Definition Mini Basic 4CH AHD With 128GB TF Card
    • 360 Degree SD Card Mobile DVR High Definition Mini Basic 4CH AHD With 128GB TF Card
    • 360 Degree SD Card Mobile DVR High Definition Mini Basic 4CH AHD With 128GB TF Card
    • 360 Degree SD Card Mobile DVR High Definition Mini Basic 4CH AHD With 128GB TF Card
    • 360 Degree SD Card Mobile DVR High Definition Mini Basic 4CH AHD With 128GB TF Card
    • 360 Degree SD Card Mobile DVR High Definition Mini Basic 4CH AHD With 128GB TF Card
  • 360 Degree SD Card Mobile DVR High Definition Mini Basic 4CH AHD With 128GB TF Card

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-412AHD-DVR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month;360 degree High Definition Mini Basic 4CH AHD Mobile DVR with 128GB TF Card, 4 wide angle cameras
    Contact Now
    Detailed Product Description
    Power Supply: DC9V-24V Storage Capacity: TF High Speed Card (class10), 64G Or 128G Above
    Application: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Trigger Control: Support 4 Channel Trigger Control
    Mini USB Port: Support Mouse Control Or U Flash Disk Video Format: H.264/MPEG-4\AVI Format
    Resolution: 1280*720P Resolution Cameras: 4 AHD 720P/960P Cameras

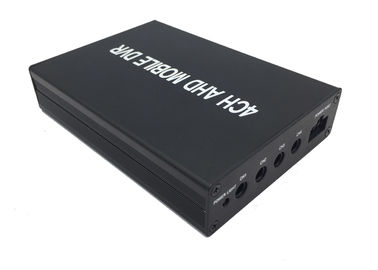

    360 degree High Definition Mini Basic 4CH AHD Mobile DVR with 128GB TF Card, 4 wide angle cameras​



    The Basic 4CH AHD Mobile DVR is very welcomed with its mini size (107*75*22mm), can support

    4pcs 720P/960P AHD cameras, TF high speed card (class10), 64G or 128G above and AV out (Monitor/Screen). Very portable and convenient to record what happens in the car/truck/bus.



    Main Features



    1. Easy installation

    2. Mini size, very portable

    3. 4 channel 1280*720 (720P) AHD input or 4 channel 960H (CVBS) input

    (All the cameras need to be the same video signal)

    4. Support mouse control or U flash disk



    Main Specifications



    Master control program Hi3520-V200 ARM A9 660MHZ
    Decoding chip Nextchip NVP6124B
    Image display 1/2/3/4 images display adjustable
    OSD Menu Brightness, contrast, color,volume, mode,language
    System PAL or NTSC
    Video input 4 channel 1280*720 (720P) AHD input or 4 channel 960H (CVBS) input (All the cameras need to be the same video signal)
    Audio input 4 channel audio input
    Video output 1 channel HDMI output
    DVR recording Support 4 channel AV recording at the same time, 1280*720P resolution
    Video compressed format H.264/MPEG-4AVI format
    Audio recording ADMP compression(ADPCM)
    Storage device TF high speed card (class10), 64G or 128G above
    Key control Key control for image display switchover
    Remoter control Support
    ACC ignition Support ACC ignition startup and off ACC to shut down the unit
    Trigger control Support 4 channel trigger control
    Mini USB interface Support mouse control or U flash disk
    Shockproof level 4G
    Power supply DC9V-24V
    Connector 4PIN or RCA
    Power consumption <12W
    Maximum current <1000mA
    Working temperature -20℃ to 70℃
    Storage temperature -30℃ to 80℃
    Size 107*75*22mm
    Weight About 0.36 g
    Accessories Power cable, remote control, screws, user manual

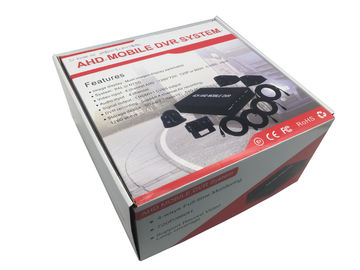

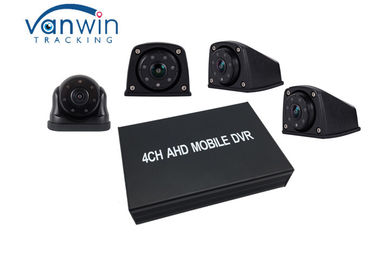

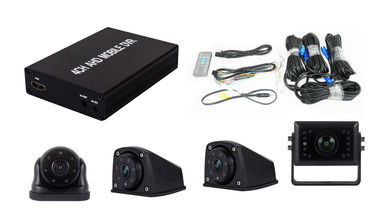

    The Picture for the Complete kit



    360 Degree SD Card Mobile DVR High Definition Mini Basic 4CH AHD With 128GB TF Card
