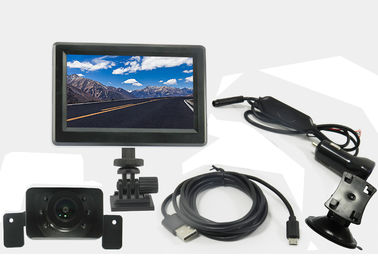

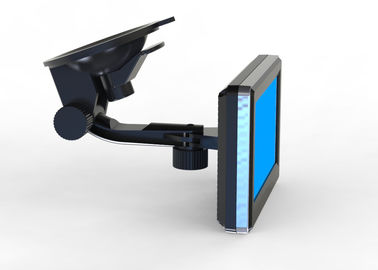

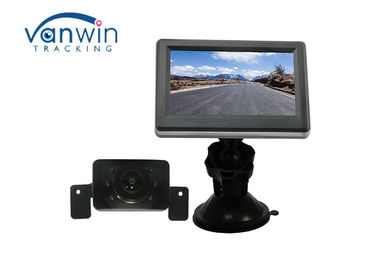

Mini Portable TFT Car Monitor 4.3” 2.4G Digital Wireless Reversing Camera System

Mini Portable TFT Car Monitor 4.3” 2.4G Digital Wireless Reversing Camera System

    • Mini Portable TFT Car Monitor 4.3” 2.4G Digital Wireless Reversing Camera System
    • Mini Portable TFT Car Monitor 4.3” 2.4G Digital Wireless Reversing Camera System
    • Mini Portable TFT Car Monitor 4.3” 2.4G Digital Wireless Reversing Camera System
    • Mini Portable TFT Car Monitor 4.3” 2.4G Digital Wireless Reversing Camera System
  • Mini Portable TFT Car Monitor 4.3” 2.4G Digital Wireless Reversing Camera System

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-M420W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month; Mini portable 4.3” 2.4G Digital Wireless Car Monitor + Car Reversing camera system with Bracket
    Contact Now
    Detailed Product Description
    Power Supply: DC12-24V Screen: 4.3 Inch Digital Panel
    Monitor Resolution: 480* RGB* 272 Camera Resolution: 960*576
    Viewing Angle: Hor. L(70) R(70) Ver. UP(50) DOWN(70) 2.4G Transmission Distance: 100M In Open Area
    AV Input: Channel 2.4G Wireless Video Signal Input Application: Small Car

    Mini portable 4.3” 2.4G Digital Wireless Car Monitor + Car Reversing camera system with Bracket​

    This product uses high-resolution TFT color LCD display, 2.4G digital wireless technology, and adopts special shockproof technology in the structure. Which is convenient to install, easy to connect, no radiation,
    low power consumption, flicker-free, with gorgeous vivid color and more stable transmission signal. Boot automatically within 1 second after powered on, and shutdown automatically if there are no signal
    with 10 seconds. Only suitable for small cars.



    Main Parameters



    4.3” 2.4G Digital Wireless Car Monitor
    Specifications Model number:VW-30W
    LCD 4.3 inch digital panel
    Screen ratio 16:09
    Resolution 480xRGBx272
    Backlight LED, 250cd/㎡
    Contrast 800:01:00
    Viewing angle Hor. L(70) R(70) Ver. UP(50) DOWN(70)
    OSD control English, Simplified Chinese
    Shockproof level 4G
    2.4G transmission distance 100M in open area
    Power supply DC12-24V
    Power consumption <3W
    Maximum current <110mA DC 12V
    Working temperature -20 to 70 degree
    Storage temperature -30 to 80 degree
    Size 117mm*78mm*19mm
    Weight 0.54KGS
    AV input 1 channel 2.4G wireless video signal input
    Other features Startup automatically once powered on, with parking guide line, Mirror and non-mirror switchable
    2.4G frequency point 2412-2484MHZ
    Transmission power 17DBm
    Receive sensitivity -89DBm

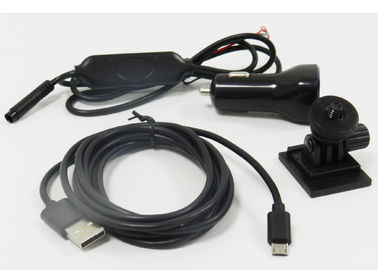

    Accessories Cigarette lighter, USB cable, sticker bracket, suction bracket, user manual



    Mini Portable TFT Car Monitor 4.3” 2.4G Digital Wireless Reversing Camera System

    2.4G Digital Wireless Car Camera
    Image sensor 1/3″CLCC PC1058K
    Pixel 960*576 resolution
    Viewing angle 140 degree
    Night vision No
    Waterproof level IP67
    Shockproof level 4G
    2.4G transmission distance 100M in open area
    Power supply DC12-24V
    Power consumption <3W
    Emission power 18DBm
    Maximum current <110mA DC 12V
    Working temperature -20 to 70 degree
    Storage temperature -30 to 80 degree
    Size 89mm*37mm*45mm
    Weight 0.35KGS



    Outline Dimensional drawing

    Mini Portable TFT Car Monitor 4.3” 2.4G Digital Wireless Reversing Camera System





    How to install the system?



                 Mini Portable TFT Car Monitor 4.3” 2.4G Digital Wireless Reversing Camera System

           Mini Portable TFT Car Monitor 4.3” 2.4G Digital Wireless Reversing Camera System

    1. Remove the plane installation screws, peel off 3M double-sided adhesive film, then insert the camera into the plate and fix it with screws.

    2. Adjust the camera's viewing angle to make the parking guide line shown on the monitor 3M with the back car and then fix the inner hexagonal screws.

    3. Check whether the distance is 3M between the parking guide line and back car.
