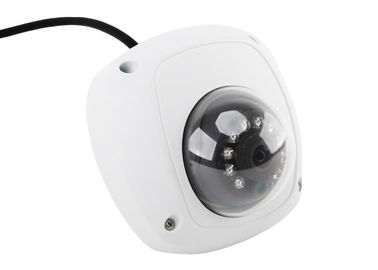

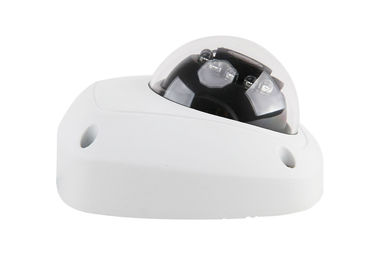

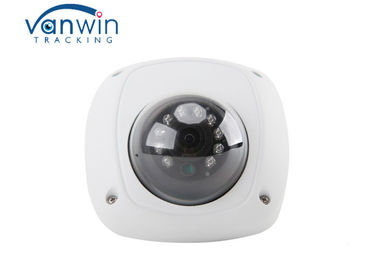

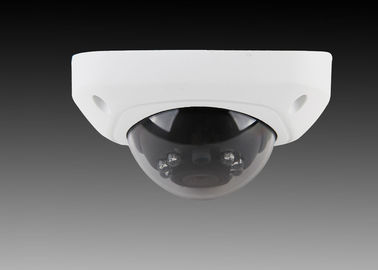

1/3 Sony CCD WDR Bus inside Camera Night Vision with Audio built-in

1/3 Sony CCD WDR Bus inside Camera Night Vision with Audio built-in

    • 1/3 Sony CCD WDR Bus inside Camera Night Vision with Audio built-in
    • 1/3 Sony CCD WDR Bus inside Camera Night Vision with Audio built-in
    • 1/3 Sony CCD WDR Bus inside Camera Night Vision with Audio built-in
    • 1/3 Sony CCD WDR Bus inside Camera Night Vision with Audio built-in
    • 1/3 Sony CCD WDR Bus inside Camera Night Vision with Audio built-in
  • 1/3 Sony CCD WDR Bus inside Camera Night Vision with Audio built-in

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-122

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiated
    Packaging Details: Neutral carton box package by default
    Delivery Time: 2-3 days for samples, 5-10 days for large orders
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 5,000pcs per month, 1/3 Sony CCD WDR Bus inside Camera Night Vision with Audio built-in
    Contact Now
    Detailed Product Description
    Product Name: Bus CCTV Camera Image Sensor: Analog / AHD, CCD Or CMOS
    TV System: PAL Or NTSC Power: DC12 Or 24V
    Good Night Vision: Yes Lens Angle: 140 Degree Wide Angle
    Working In Water: IP67 IR Light: 10pcs
    Application: Inside Or Outside For Bus Connector: 4 PIN Connector Or RCA Connector

    1/3 Sony CCD WDR Bus inside Camera Night Vision with Audio built-in


       This vehicle car camera with Sony CCD image sensor has better picture's clarity, color contrasting and sharpness than CMOS camera,  and with 10pcs of IR lights, which also shows very clear images at night. It's very popular for vehicle, like bus, school bus, train and truck.

    Main Features:

    1.    1/3 SONY CCD image sensor;
    2.    Waterproof, vandalproof;
    3.    Resolution: 500tvl/600tvl/700tvl/800tvl optional;
    4.    Night vision, IR distance 10~20m, with 12pcs LEDs;
    5.    Rugged design, vandalproof;
    6.    Cabale jack: aviation/BNC/RCA optional;
    7.    PAL/NTSC optional, DC12V power supply

    Specifications:



    1080P 2.0MP for example


    Technology infrared
    Sensor HD 1080P
    Shape dome camera
    Types Indoor car camera
    Waterproof IP66
    Audio Optional audio
    Lens 2.8MM/3.6MM
    IR LED 10PCS
    Power DC12V/24V
    Color White
    Connector 4 PIN connector or RCA connector
    Material aluminium alloy
    Effective Pixels 720P 1.0MP, 960P 1.3MP, 1080P 2.0MP
    Operating Temperature -25℃~70℃
    Warranty 1 Years

    1/3 AHD 1080P
    Chip Technical Parameters
    Image Sensor 1/2.9" IMX323 2.0MP Video Out 1CH BNC AHD output,
    Support TVI/CVI/CVBS Mode
    Image System PAL/NTSC WDR auto
    Resolution 1920 (H)×1080(V) SNR >45db
    Min.illumination 0.01Lux full color White Belance AWB
    Electronic Shutter 1/25s~1/100,000s DR 76db
    Video Standard AHD Advanced Function 2D_DNR
    Frame Rate 1920×1080@25 fps;
    1920×1080@30 fps;
    Working Environment -25℃~+70℃,Humidity 95%
    Lens 2.1/2.8/3.6 Power supply DC 12V +/-15%,



    Adavantages

    1. HD


    The camera is high-definition CCD chip, max can be up to 800TV line.



    2. Wide Angel



    It can support Angel of 170 degrees, the maximum range of display berth abstacles,



    stop the car after the blind angel.



    3. Night Vision



    LED night vision camera with 8 pcs, as the fill light chip automatically fill light, the night vision more clearly.



    4. Waterproof



    The camera have reached level of industrial grade IP67 waterproof standard, deal with dust or rain wash trail, high-pressure flushing



    Chips Available for Option

    • Sony CCD 600TVL
    • Sony CCD 700TVL
    • Sony CCD 800TVL
    • Sony CMOS/ CCD AHD 720P/960P/1080P


    Connetor Available for Option

    • 4Pin Aviat connector
    • DC+RCA connector
    • CCTV security BNC connector


    Application

    • inside car camera or outside car camera (inside or outside vehicle installation)
    • used in bus, taxi, truck, school bus, goods van, police car, escort car, tanker truck, etc.

    1/3 Sony CCD WDR Bus inside Camera Night Vision with Audio built-in


    Other Cameras for Option


    1/3 Sony CCD WDR Bus inside Camera Night Vision with Audio built-in
