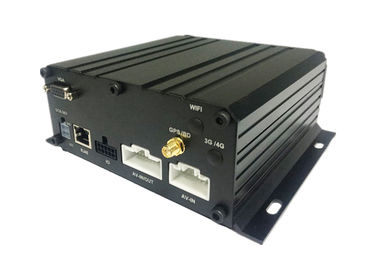

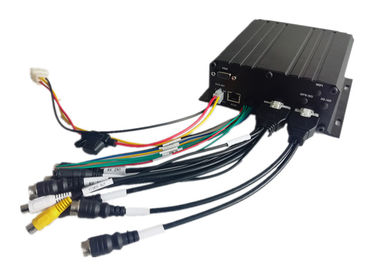

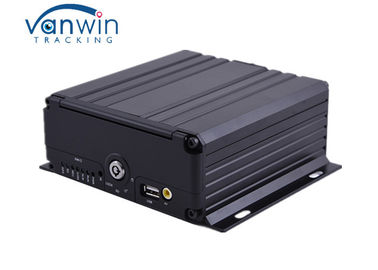

6CH 1080P HD Mobile DVR GPS 4G Support 2T 2.5 Inch HDD 256GB SD Card Storages

6CH 1080P HD Mobile DVR GPS 4G Support 2T 2.5 Inch HDD 256GB SD Card Storages

    • 6CH 1080P HD Mobile DVR GPS 4G Support 2T 2.5 Inch HDD 256GB SD Card Storages
    • 6CH 1080P HD Mobile DVR GPS 4G Support 2T 2.5 Inch HDD 256GB SD Card Storages
    • 6CH 1080P HD Mobile DVR GPS 4G Support 2T 2.5 Inch HDD 256GB SD Card Storages
  • 6CH 1080P HD Mobile DVR GPS 4G Support 2T 2.5 Inch HDD 256GB SD Card Storages

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW6806HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month; 6CH 1080P HD Mobile DVR with GPS 4G support 2T 2.5 inch HDD & 256GB SD card storage
    Contact Now
    Detailed Product Description
    Power Supply: 8V-36V Storage Capacity: HDD/SSD, Can Support 2TB
    Basic Function: 6 1080P Cameras Monitoring With 3G Real Time, GPS Tracking, Wi-Fi Software Support: Client, Server, Playback Software
    Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets System Upgrading: Supporting SD Card, Hard Drive Upgrading And Remote Upgrading
    Cameras: 1~6 Analog Or AHD 1080P Cameras WIFI Download: Support
    Dimensions: 150*137*60MM ODE/OEM: Support
    Mouse Operating: Support Alarm Inputs: 4CH Level Alarm Inputs

    6CH 1080P HD Mobile DVR with GPS 4G support 2T 2.5 inch HDD & 256GB SD card storage

    The MDVR supports 6 channel FULL 1080P video recording, 3G/4G wireless live video transmission through PC&phone remotely, with GPS tracking on google map, wifi auto downloading, with RJ45, RS232&485, I/O port interface for multiple outer device integration. Its storage (max 2TB) lasts more than 14 days recording.



    The complete system includes:



    1. One 6CH MDVR with 3G GPS WIFI G-sensor for Option
    2. 6 cameras with extension cables
    3. One monitor for the driver
    4. HDD 500GB/1TB/2TB
    5. Micphone, Talkback device, Panic button


    HD Mobile DVR Main Features

    • H.264 video compression, multi code stream.
    • Support 6CH 1080P/720P HD real-time video inputs. Also, support 6CH analog cameras inputs or compound inputs for 2CH HD cameras and 2CH analog cameras.
    • 1CH VGA output is optional.
    • With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable.
    • 8-36V wide voltage power supply, super low power consumption. With overload/ undervoltage/ shortcircuit/ reversing protection, support all vehicles.
    • Support a 2T 2.5 -inch HDD and 1 256G SD card storage
    • With watchdog abnormal restart protection function, it can better protect the machine and video.
    • Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).
    • Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.
    • Support 6CH alarming inputs and 1CH independent alarm input.
    • Optional for 1CH RS232 Serial port or 1CH RS485 extension.
    • Support GPS/G-Sensor.
    • Support remote operation and monitoring by 3G/4G.
    • Support ministry of communications agreement, support SMS remote configuration and equipment control.
    • Support voice broadcast, intercom and text schedule dispatch.
    • Support fuel sensor, temperature sensor, POS, LED advertising screen.
    • Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.
    • With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.
    • Support all vehicles, including bus, taxi, truck, school bus, etc.

    HD Mobile DVR Main Specification



    Operating System Linux
    Language English, Chinese or Customized language.
    Video Compression H.264
    OSD Support time, date, vehicle ID, image, etc.
    GUI OSD Interface Can external connect to LCD and set the system specifications by remote
    Video and Recording Video Input 6CH 1080P/720P AHD/Analog/Compound video input, aviation connector, 1.0Vp-p, 75Ω
    Video Output 1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω.
    Support 1CH full screen and 4CH division.
    Preview Single/4CH Pictures Preview, support full screen of event trigger or back view of car reversing
    Recording Resolution Support 1080P/720P/D1/HD1/CIF, support at maximum 8 Channels 1080P
    Recording Quality Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest.
    Video and Recording Video Rate PAL:100 fps,CCIR625line,50 scenes
    NTSC:120 fps,CCIR525line,60 scenes
    CIF:256Kbps - 1.5Mbps,8 grades image quality for optional
    HD1:600Kbps - 2.5Mbps,8 grades image quality for optional
    D1:800Kbps - 3Mbps,8 grades image quality for optional
    720P:800Kbps - 4Mbps,8 grades image quality for optional
    1080P:2Mbps -6Mbps,8 grades image quality for optional
    Audio Recording Mode Default automatic video recording, support ignition video recording, schedule video recording, alarm video recording, etc
    Audio Input 6CH Aviation connector inputs
    Audio Output 1CH Aviation connector output, Output level:1V - 2V
    Compression format G.726, Speed for 8KB/s
    Alarm Input 4CH level alarm inputs
    Alarm Output 1CH level signal output
    Communication Interface Optional for 1CH RS232 or 1CH RS485
    Wireless Transmission Support built-in 3G/4G wireless transmission, WCDMA, CDMA2000, TDD-LTE, FDD-LTE.
    Support expansion built-in/external WIFI transmission, compatible with GPRS, EDGE
    Location /G-sensor Support built-in GPS/BD module, built-in G-sensor, can analysis and playback for vehicle driving route
    Video Storage Storage Support a 2T 2.5 -inch HDD and 1 256G SD card storage
    Upgrade Method Support SD card local upgrade, remote upgrade automatically
    File Format H.264 general video format
    File System FAT32 exclusive file system
    Video Playback Video Search Search recorded video files by recording time and recording method
    Playback Support at max 4 channel synchronous playback, suspend, forward, backward
    Support 2/4/8/16 times speed forward or backward
    Security Management User Password or administrator password management, support screen locked
    Expansion functions TTS Voice broadcast Support TTS voice broadcast
    Series port expansion Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc
    Power and Power Management Self-adaptive wide voltage input, with protect functions for overload, undervoltage, short circuit, reversing connection, etc
    Consumption Support time setting startup/shutdown, delayed power off function
    Power and Consumption Input Voltage DC:+8V - +36V
    Output Voltage +12V/1.5A,+5V/1.5A
    Power-off Protection UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off.
    Consumption Normal working < 14W, standby < 0.5W
    Working environment Temperature -20℃ - +70℃
    Humidity 20% - 80%
    SD Card Type Series Dimension 150*137*60MM
    Weight 1.65KG





    6CH 1080P HD Mobile DVR GPS 4G Support 2T 2.5 Inch HDD 256GB SD Card Storages

    Installing Cases from Customes

        6CH 1080P HD Mobile DVR GPS 4G Support 2T 2.5 Inch HDD 256GB SD Card Storages

    Cameras for Option



    6CH 1080P HD Mobile DVR GPS 4G Support 2T 2.5 Inch HDD 256GB SD Card Storages
