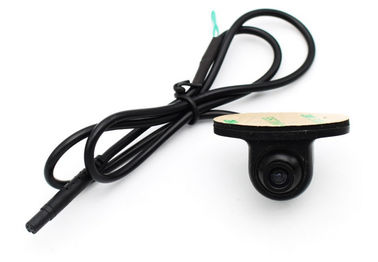

Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle

Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle

    • Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle
    • Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle
    • Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle
  • Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-C532

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiated
    Packaging Details: Neutral carton box package by default;
    Delivery Time: 1-2 days for samples, 3-10 days for large orders
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 5,000pcs per month; Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle
    Contact Now
    Detailed Product Description
    Type: Rear View Camera Resolution: CMOS 480 TV Lines
    TV System: PAL Or NTSC Voltage: DC12
    Car Make: Universal, For Any Car View Angle: 170 Degree
    Image Sensor: HD 7440H 0R 7070D 1/4"CMOS Warranty: 12 Months

    Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle



    Main Features:

    • Image Sensor: HD 7440H 0R 7070D 1/4" CMOS
    • TV system: NTSC/PAL for optional
    • Effective Pixels: PAL: 628(H)*582(V) NTSC: 510(H)*492(V)
    • Lens: 13.5mm F 1.9MM 5G
    • View Angle: 150 degree
    • S/N Ratio: >48dB
    • Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
    • Video Output: 1.0Vpp, 75Ω
    • White Balance: Auto
    • Power: DC 12V
    • Waterproof: IP68
    • Package weight: 178g



    The package includes:

    • 1 x Car Rear View Camera
    • 1 x Video Cable
    • 1 x Power Cable
    • 1 x English user menu
    • The 3M sticker and screws

    Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle

    Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle

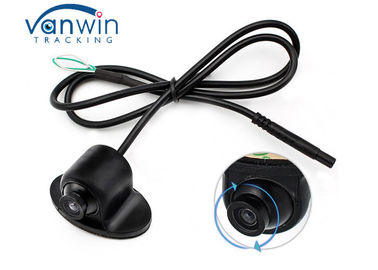

    Guideline Adjustable



    The green wire is controling parking line

    The white wire is controling the mirrior image

    Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle

    Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle

    The installing Paces as reference

    Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle
