Product Details:

Place of Origin: Shenzhen,Guandong
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-913MQ-DVR

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: negotiated
Packaging Details: Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn
Delivery Time: 3-7 working days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 5000 pcs per month;
Get Best Price Contact Now

Detail Information

Power Supply: 12V-24V DC Optional Screen Size: 7 Inch / 9 Inch / 10 Inch TFT LCD With DVR Quad Picture
Resolution: Support 720p, D1, 1, CIF, Maximum Support 1080p Screen Type: 16:9
View Angle: Hor. L(70) R(70) Ver. UP(50) DOWN(70) Placement: Dashboard
Car Make: Universal, All Cars, Coach, Buses, Bus Warranty: 12 Months
Storage: SD Card, Max Support 128GB Cameras: Analog / AHD
High Light:

car video monitors

,

car rear view monitor

Product Description

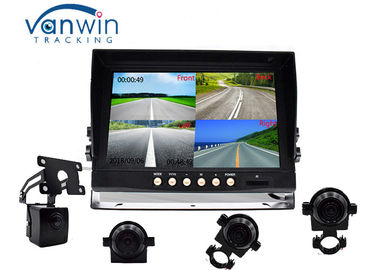

360° 7" Car video lcd monitor DVR System with 128GB SD Card Recording, 4 Cameras Inputs

1. The system can work with 1~4 cameras to monitor the front, side and back of Truck, Van, Bus, Benz Motor - home, commercial van and can       also support 128GB SD card recording.
2.It's widely used in the Truck and Van for reversing and monitoring.
3. We also have waterproof monitor, wireless DVR, mobile DVR for option.

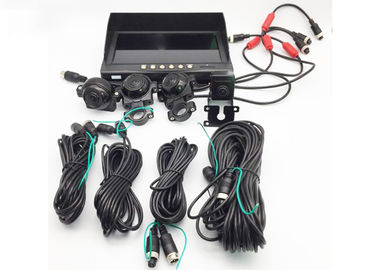

360° 7" Car video lcd monitor DVR System with 128GB SD Card Recording, 4 Cameras Inputs 0
7" Car video lcd monitor Main Features
1. Industrial design, super mini fuselage, air head input, easy installation, compact and reliable;
2. Using the international mainstream video h.264 main profile coding format, audio g.726
coding, high compression ratio, clear image, less disk space;
3. Professional car power supply, can be adapted to 8 to 36 V ultra wide voltage input, with
overloading/short circuit/back connection and other protection circuits;
4. High and reliable air head input and output interface, easy to install and plug, more seismic
performance;
5. Professional video file system, storage space pre-allocation, four-channel single file record, with
extremely high stability and reliability;
6. Support for 4 or 8 channels of video, audio input, variable rate picture quality adjustable;
7. Support for 256g high-capacity Kafka videos;
8. The video has power failure protection function, and the video is automatically restored when the
call is made to support the video loss alarm function.
9. An independent power shutdown circuit can be used to support the operation of the system after
the shutdown of the vehicle, and the timing can be set by itself.
10. Supporting client platform, providing playback, analysis, management and other functions;
11. Support for software upgrades through Kafka;

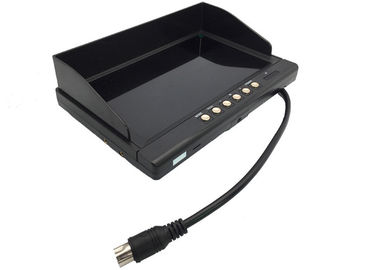

360° 7" Car video lcd monitor DVR System with 128GB SD Card Recording, 4 Cameras Inputs 1

7" Car video lcd monitor DVR System Main Specifications

ProjectParameter
Operating systemEmbedded silicon
System languageChinese, English, other (customizable)
Video compression formatH.264 compression model
OBECharacter overlay function that supports time date, vehicle ID, etc.
GBA

Figure oer
Interface

System parameters can be set by remote control operation through external display.

Video and video
System

Video inputRoad 4 or 8 video input, air head interface, 1.0vp-p, 75
Video outputRoad 1 composite video output, air head interface, 1.0vp-p, 75-200.
Preview functionSingle or multi-frame preview, support manual/event triggering full screen display function
Video resolutionQuadrant support 720p/D1/R1/CIF optional, maximum support 4 route 720p;Eight roaders support D1/R1/CIF options, with maximum support of 8 road D1.
Video qualityA level 1 to 4 video can be matched, with an optimal level 4 and a minimum level 4.
Video rate

Pal: 100x/s, ccz 625 line, 50 games
NTT: 120 +/s, CC + 525 line, 60 games;
CIF: 256kbps ˜ bps, 4 class quality optional
+ 1: kbps ˜ 2.5 Mbps, class 4 quality optional
D1: 800kbps ˜ 3mbps, level 4 quality optional
720p: 800kbps ˜ 4mbps, class 4 quality optional

Video modeDefault automatic video, support ignition video, manual video, alarm video, etc.
AudioAudio inputRoute 4 or 8, air terminal
Audio outputRoute 1, air terminal
Compression formatG.726 compressed format, rate 40kb/s
Alarm input4 alarm input, with alarm function.
Alarm outputOutput of circuit weights
PositionSupport built-in GPS/BD modules
SensorSupport for issensor acceleration sensor
Video storageKafka1 to 2 large capacity video cards, maximum support 128g, loop video, data automatic cover.
Upgrade methodSupport for Kafka upgrades
File formatH.264
File systemUnique vehicle pre-assigned professional file system.
Video playbackVideo searchThrough video time, video means, and other ways to search video files.
Put backSupport multi-path synchronous playback, pause, fast forward, quick retreat
Support 2,4,8,16, double fast forward or backward
Power supply and power supplyPower managementIt has the function of overloading, overpressure, underpressure, short circuit, backconnection and so on.Support regular shutdown, shutdown function.
Input voltageDC: 8 ˜ 36v
Output voltage+ 12v @ 2a,
ToMaximum normal work: 5w, standby: 0.5w
Working environmentTemperature-20 to + 70
Humidity20% to 80%
Safety managementPassword accessUser password, administrator password two levels management.
OtherSize:147 (wide) x42 (high) x142 (long) mm
Weight:400 G
