CMOS CCD 2000TVL Vehicle Surveillance Camera IR Night IP68
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-385 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| TV System: | PAL Or NTSC | Test Time: | Over 48 Hours |
|---|---|---|---|
| Waterproof: | IP68 | IR Lights: | 18pcs |
| Type: | Surveillance Camera | Lens: | 2.1mm/2.8mm/3.6mm/6.0mm |
| Connector: | 4 PIN Or RCA BNC Connector | Mode: | AHD Camera Or Analog Camera |
| Advantage: | SMT Factory Plus Strict Production | Sensor: | AHD 1080P,1/3" 1.3 Mega Pixels CMOS |
| Resolution: | CMOS CCD Analog/720P/960P/1080P Optional | ||
| High Light: | 2000TVL Vehicle Surveillance Camera,CMOS CCD Vehicle Surveillance Camera,IP68 IR Night Surveillance Camera |
||
Product Description

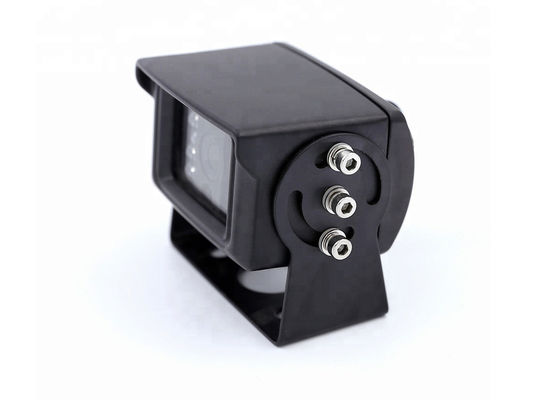

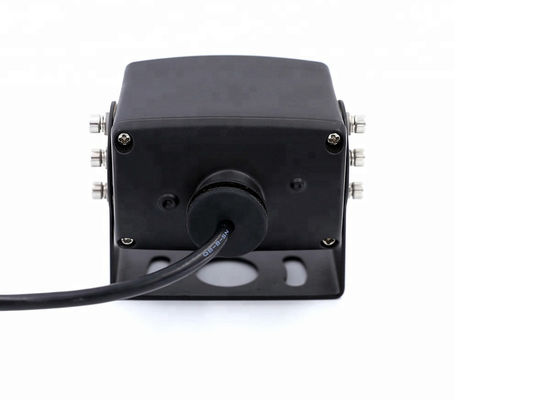

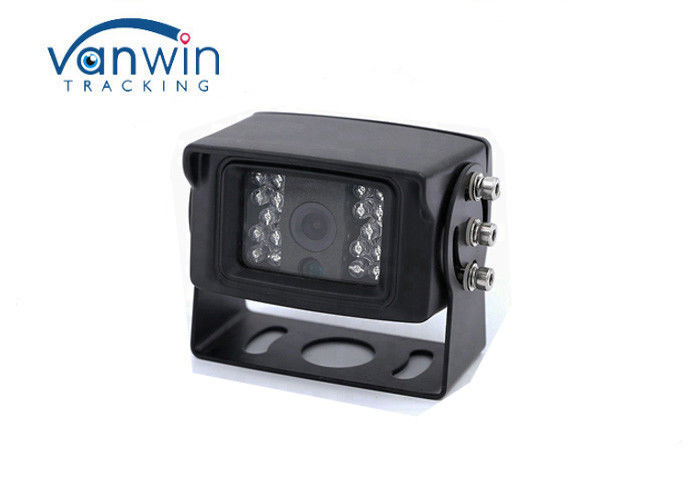

Sturdy 1080P 2000TVL Vehicle Surveillance Camera with IR night mode cut
VW-385 is one of our hot selling model which used for ligger vehicle like truck, bus, van as the reversing/front camera.
It can support Analog CCD 600TVL/700TVL or AHD 720P/960P/1080P for option with 4pin/BNC/RCA connector.
There is also different lens and chips to meet different customers' requirement.
Our 1080P Truck reverse camera main features for 1080P chip:
- Adopt 1080P 2.0MP San CMOS, can capture moving images
- Support AHD / TVI / CVI coaxial HD output, with clear and delicate image
- Illumination 0.01Lux @ (F1.2, AGC ON), 0LUX with IR
- Support IR-CUT switch, CDS external control, realize day and night monitoring
- Support OSD menu control, suitable for users to define settings
- Support Digital Wide Dynamic
- Adapt to digital noise reduction, 3D-DNR, 2D-DNR
- Support UTC function
- Video 6KV lightning protection, power capacitor design
- Support DC 6-15V wide voltage supply
- 32x32/38x38(mm)
Main Specifications
| Specifications: | |
| Model | FH53-V1 |
| Parameters | oaxial surveilance camera mo |
| 2MP 4-in-1 coaxial surveillance camera module | |
| Sensor | 1/2.9＂GC2053 |
| ISP Model | FH8536H |
| Image System | PAL/NTSC |
| Resolution | 1920(H)x1080(V) |
| Min. illumination | 0.01Lux@(F1.2,AGC ON),0LUX with IR |
| Shutter | AUTO |
| Night Mode | Outside control(default)/Auto/W&B/ Color |
| Synchronization | Inter synchronization |
| Frame Rate | 1080P@25fps / 1080P@30fps |
| Video Output | AHD/TVI/CVI/CVBS for option |
| Exposure | Brightness/Exposure mode/gain |
| White Balance | AWB/MWB |
| Night Mode | IR/Inner auto/color/W&B |
| Video Setting | Contrast / Sharpness / Saturation / Digital Noise Reduction / Video Format / Digital WDR |
| Language | ENGLISH/中 /ESPANOL/FRANCAIS/繁体中/本語/Pyccknn/ITALIANO/EAAHNIKA/POLSKI//Portugues/한국어. |
| Working enviroment | -20℃ to 60℃, Humidity 95% |
| Voltage | DC12V(±20%) - 65MA |
Our advantages
We are different from other suppliers.Welcome you to test and compare.
1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.
2. Careful production Process:
Raw Material---- Accessories High Temperature Test---Assembly----Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing
3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much .Nearly all clients have been coorperating with us all the time .
4.We explore some wide angle or special cameras to meet your requirements that others don't have.
