1080P NTSC 0.01Lux Bus Rear View Camera Dc12V 24V IP67
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-388 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | Mini Truck Video Camera , Bus Surveillance Camera | Resolution: | Sony 600TVL/700TVL Or AHD 720P / 960P /1080P |
|---|---|---|---|
| IR LED: | 18pcs | Waterproof: | IP67/IP68 |
| TV System: | PAL Or NTSC | Material: | Metal Housing |
| Power Supply: | DC12 Or DC24 | Lens Angle: | 120 Degree Wide Angle |
| Sensor: | CMOS And CCD,AHD 1080P | Lens: | 6.0mm,3.6mm,2.8mm,2.1mm Fixed Lens |
| High Light: | 0.01Lux Bus Rear View Camera,NTSC Bus Rear View Camera,IP67 Wireless Surveillance Security Camera |
||
Product Description
1080P Sony Chip Bus rear view camera support power supply dc 12V / 24V
Vehicle surveillance camera Main Features
1. Horizontal Resolution: CMOS 600TVL, Sony CCD 600/700TVL, AHD 720P/960P/1080P
2. Water Resistance: IP67
3. Suitable for safety and security
4. Waterproof and can be installed on your license plate
5. Mirror / Normal image Adjustment (depending on the chips)
Vehicle surveillance camera Specifications
| Specifications : | |
| V30E+IMX323 | |
| Image Sensor | 1/2.9 " SONY_IMX323 |
| Image System | PAL/NTSC |
| Resolution | 1920 (H)×1080(V) |
| Min.illumination | 0.01Lux full color |
| Electronic Shutter | 38*38,32*32 |
| Video | Standard AHD |
| Frame Rate | 1920×1080@25 fps；1920×1080@30 fps |
| Lens | 2.1/2.8/3.6 |
| Video Out | 1CH BNC AHD output, Support TVI/CVI/CVBS Mode |
| WDR | auto |
| SNR | >45db |
| White Belance | AWB |
| DR | 76db |
| Advanced Function | 2D_DNR |
| Working Environment | ,-25℃～+70℃,Humidity 95% |
| Power supply | DC 12V +/-15%, |
| Dimensions(mm) | 38*38,32*32 |
1/4 AHD 720P for example
| Chip Technical Parameters | |||
| Image Sensor | 1/4 CMOS H62 100W | Video Out |
1CH BNC AHD output, Support TVI/CVI/CVBS Mode |
| Image System | PAL/NTSC | WDR | auto |
| Resolution | 1280 (H)×720(V) | SNR | >45db |
| Min.illumination | 0.1Lux full color |
White Belance |
AWB |
| Electronic Shutter | 1/25s~1/100,000s | DR | 76db |
| Video Standard | AHD |
Advanced Function |
2D_DNR |
| Frame Rate | 1280×720@25 fps; 1280×720@30 fps; |
Working Environment |
-10℃~+60℃, Humidity 95% |
| Lens | 2.8/3.6mm | Power supply | DC 12V +/-15% |

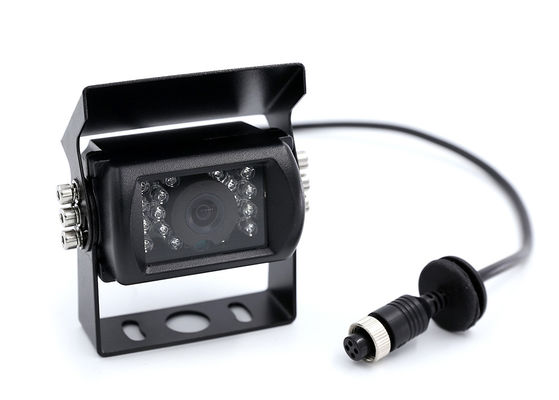

Connetor Available for Option
- 4Pin Aviation connector
- DC+RCA connector
- CCTV security BNC connector
Application
The vehicle surveillance camera is widely used in bus, dangerous cargo truck, police car, van, Train, ship, home security etc
for outside.
Quality Control
1) All our products must be 100% pre-tested before shipping by our professional QC Team
2) Items have 18 months warranty since the date receving the goods.
3) Aging time 48 hours to ensure stable quality
4) Life time tech support
5) Use a metal shell, color of the lacquer that bake, better resistance to rust, prolong life.
6) Super Waterproof Design: We adopt special sealing method, and work more than 20 hours of bubber water test process,
put an end to any water infiltration.
Packing Detail
1. Neutral Box.
2. Your Logo is also Welcomed.
