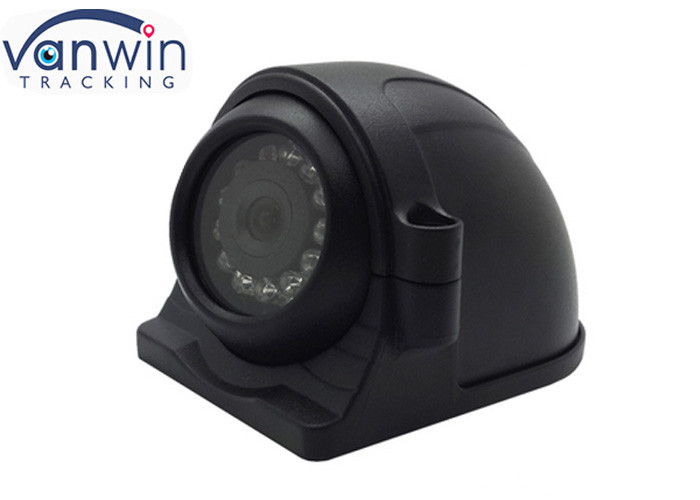

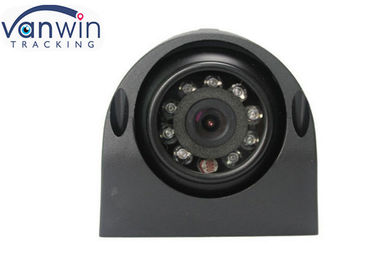

Truck Metal Waterproof Side View HD Recording Camera 800TVL SONY CCD
Product Details:
Place of Origin: | Shenzhen, China |
Brand Name: | Vanwin Tracking |
Certification: | CE/FCC/RoHS |
Model Number: | VW-206 |
Payment & Shipping Terms:
Minimum Order Quantity: | 5 pcs |
---|---|
Price: | negotiated |
Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 5,000pcs per month |
Detail Information |
|||
Car Make: | Truck/Bus/Taxi/Coach | Resolution: | 600TVL/700TVL/800TVL |
---|---|---|---|
Feature: | Waterproof,dustproof | Color: | Housing Black |
Viewing Angle: | 120 Degree | Warranty: | 12 Months |
TV System: | PAL Or NTSC | Power: | DC12 Or 24V |
High Light: | mobile surveillance cameras,cctv surveillance camera |
Product Description
Truck Metal Waterproof Side View HD Recording Camera 800TVL SONY CCD
The camera is used with Mobile DVR / Car DVR (with 3G, 4G, GPS,WiFi) for vehicle real time monitoring, applied with car cameras used for vehicle monitoring in bus, taxi, school, bus, truck, police car, tour bus, tanker truck, escort car etc.
Main Features:
- Side View Camera for Heavy-duty or Bus
- 600TVL/700TVL/800TVL for options
- 9PCS Infrared LED lights
- CE,FCC,RoHS Certificates
Technical Specification
Image Sensor | 1/3" 600TVL SONY CCD | 1/3 700TVL SONY CCD |
Video System | PAL/NTSC | PAL/NTSC |
Pixels | PAL:752(H)×582(V) | PAL:976(H)×582(V) |
NTSC:768(H)×494(V) | NTSC:976(H)×494(V) | |
Horizontal Resolution | 600 TVL | 700 TVL |
Min Illumination | 0.01LUX(0 Lux IR on) | 0.01Lux (0 Lux IR on) |
SNR | ≥46dB | ≥48dB |
Electronic Shutter | 1/50-1/10000(S) | 1/50(1/60) - 1/100000 (S) |
Video Output | 1.0V±0.5Vp-p 75Ω | 1.0V±0.5Vp-p 75Ω |
View Angle | 120° | 120° |
Working Voltage | DC12V±0.5V | DC12V±0.5V |
Consumption | 100mA±10% | 70mA±10% |
Display image | Mirror/normal optional | Mirror/normal optional |
MIC | Optional | optional |
