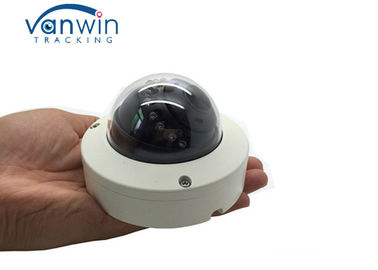

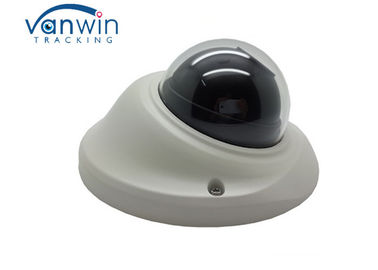

Bus Surveillance Car Dome Camera Wide View Angle Vandal Proof

Bus Surveillance Car Dome Camera Wide View Angle Vandal Proof

    • Bus Surveillance Car Dome Camera Wide View Angle Vandal Proof
    • Bus Surveillance Car Dome Camera Wide View Angle Vandal Proof
    • Bus Surveillance Car Dome Camera Wide View Angle Vandal Proof
    • Bus Surveillance Car Dome Camera Wide View Angle Vandal Proof
  • Bus Surveillance Car Dome Camera Wide View Angle Vandal Proof

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-C201

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiated
    Packaging Details: Neutral carton box package by default
    Delivery Time: 2-3 days for samples, 5-10 days for large orders
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 5,000pcs per month , HD Wide view angle 800TVL SONY CCD Vandal proof bus Surveillance cameras for MDVR
    Contact Now
    Detailed Product Description
    Product Name: Vandal Proof Bus Surveillance Cameras For MDVR Image Sensor: SONY CCD 600/700/800TVL
    TV System: PAL Or NTSC Power: DC12 Or 24V
    Night Vision: Yes Lens Angle: 140 Degree Wide Angle
    Application: For Truck Or Bus Working In Water: IP67



    Bus Surveillance Car Dome Camera Wide View Angle Vandal Proof





       This bus surveillance camera with Sonny CCD image sensor has better picture's clarity, color contrasting and sharpness than CMOS camera,  and with 12pcs of IR lights, which also shows very clear images at night. It's very popular for buses or trucks management.





    Main Features:

    1.    1/3 SONY CCD image sensor;
    2.    Waterproof, vandalproof;
    3.    Resolution: 500tvl/600tvl/700tvl/800tvl optional;
    4.    Night vision, IR distance 10~20m, with 12pcs LEDs;
    5.    Rugged design, vandalproof;
    6.    Cabale jack: aviation/BNC/RCA optional;
    7.    PAL/NTSC optional, DC12V power supply;

    Specifications:



    Model

    VW-C201

    TV System

    PAL or NTSC Optional

    Image Sensor

    1/3" SONY EX-view HAD CCD II

    Resolution

    500TVL

    600TVL

    700TVL

    Effective Pixels

    PAL:976×582; NTSC:976×494

    PAL:976×582; NTSC:976×494

    PAL:976×582; NTSC:976×494

    Min Illumination

    0.01 LUX

    0.01LUX

    0.001LUX

    Lens

    2.5mm/ 2.8mm/ 3.6mm optional

    Gain Control

    Auto

    Audio

    Optional

    Waterproof

    Yes

    Night Vision

    Yes

    IR Distance

    10~20M, 12pcs led lights;

    Features

    Low Operational Voltage; Vibrate-proof; High Stability; Durable; High Definition at Daytime; Good Night-Vision Effect; High Sensitivity; Low Noise

    Cable Jack

    Aviation/BNC/RCA Optional

    Housing

    Metal Housing

    Power Supply

    DC12V

    Dimension

    ---

    Weight

    0.4kg







    Adavantages



    1. HD





    The camera is high-definition CCD chip, max can be up to 800TV line.







    2. Wide Angel



    It can support Angel of 170 degrees, the maximum range of display berth abstacles,



    stop the car after the blind angel.







    3. Night Vision







    LED night vision camera with 8 pcs, as the fill light chip automatically fill light, the night vision more clearly.







    4. Waterproof



    The camera have reached level of industrial grade IP67 waterproof standard, deal with dust or rain wash trail, high-pressure flushing









    Chips Available for Option



    • Sharp CCD 420TVL
    • Sony  CCD 480TVL
    • Sony CCD 600TVL
    • Sony CCD 700TVL
    • Sony CCD 800TVL



    Connetor Available for Option

    • 4Pin Aviat connector
    • DC+RCA connector
    • CCTV security BNC connector





    Accessories



        Manual 1pcs, Screw:4pcs







    Application



    • inside car camera or outside car camera (inside or outside vehicle installation)
    • used in bus, taxi, truck, school bus, goods van, police car, escort car, tanker truck, etc.

    Bus Surveillance Car Dome Camera Wide View Angle Vandal Proof







    Other Cameras for Option





    Bus Surveillance Car Dome Camera Wide View Angle Vandal Proof





    Installation Pictures



    Bus Surveillance Car Dome Camera Wide View Angle Vandal Proof
