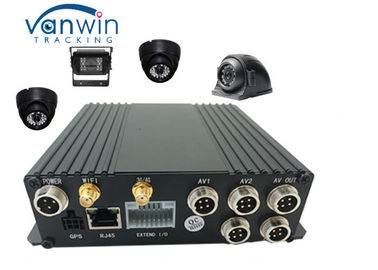

128G X Two SD Card 720P HD Mini 4CH SD Card Mobile DVR with GPS Track

128G X Two SD Card 720P HD Mini 4CH SD Card Mobile DVR with GPS Track

    • 128G X Two SD Card 720P HD Mini 4CH SD Card Mobile DVR with GPS Track
    • 128G X Two SD Card 720P HD Mini 4CH SD Card Mobile DVR with GPS Track
    • 128G X Two SD Card 720P HD Mini 4CH SD Card Mobile DVR with GPS Track
    • 128G X Two SD Card 720P HD Mini 4CH SD Card Mobile DVR with GPS Track
  • 128G X Two SD Card 720P HD Mini 4CH SD Card Mobile DVR with GPS Track

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW618

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month
    Contact Now
    Detailed Product Description
    Power Supply: 8V-36V Storage Capacity: 128GB * Two SD Cards
    H.264 Format: YES Software: Client, Playback Software
    Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Feature: GPS 3G WIFI Optional
    Resolution: 720P AHD Type: For Fleet Management

    128G X Two SD Card 720P HD Mini 4CH SD Card Mobile DVR with GPS Track





    Features






       1) 8V~36V Wide Range Power Input;



       2) 4 Channel Full AHD 720P Realtime Video Audio Recording;

       3) Supports two  128GB SD Card(maximum);


       4) RJ45 lan port ,6ch alarm input&2 ch alarm output



       5)G-sensor ,RS232/485 interface ,UPS Technology (3~5s Power-off delay after power cut);


       6) GPS Positioning & Tracking;



       7) G-sensor alarm recording;

       8) 3G/ 4G Remote View on PC or Smartphone;

       9) Solid state, anti-vibration design;



      10)World class anti-vibration technology







    Specifications






    Video

    Video input

    4CH Video Inputs (1.0Vp-p/ 75 Ohms)

    Video output

    1CH Video output (1.0Vp-p/ 75 Ohms)

    Preview

    1 CH/ 4 CH Preview.

    Recording Ratio

    PAL: 25 Frame/s; NTSC: 30 Frame/s

    Image Compression

    H.264 Main profile

    Audio

    Audio input

    1-CH

    Audio output

    1-CH

    Recording mode

    Audio & Video sync.

    Image processing

    & Storage





    Video Quality

    D1/HD1/CIF adjustable for each channel;

    Highest Video Quality: 4CH AHD 720P

    Bit Rate

    D1: 800Kbps~3Mbps,

    HD1: 600Kbps~2Mbps,     CIF: 256Kbps ~ 1.5Mbps

    8 levels optional.

    Storage

    2 pcs  128GB SD Card (maximum)

    Alarm

    G-sensor Alarm

    Yes

    Wireless



    3G

    Built in WCDMA/ CDMA2000 Module (Optional)

    Wi-Fi

    Built in Wi-Fi Module (Optional)

    GPS

    Built-in GPS module

    G-Sensor

    Yes

    Upgrade

    Support SD card Firmware Upgrading

    Operation Environment

    Temperature

    -25 degrees to +70 degrees

    Humidity

    10% to 95%

















































































    FAQ




    1) Can we get our own look and feel for the client when we have our own?



    Re: As for the Clients app, we could add your logo or your company name on it if you need, but the others, like menus, functions, structures etc are the same. You could not change the Clients software even you have your own server since the software is developed by our technician, only they could change or decorate.



    2) Is it correct that when we want to connect audio, we can connect a camera less to the system?



    Re: You mean you want to hear the voice when you see the video? If so, no need to connect less camera, you just need to buy a sound pickup to connect together with one or two of the cameras, then the one or two channel will be with audio.





    3) Is it possible to rename the vehicle ID? For example for a name or a licence plate?

    (for example: 08-PVP-5)



    Re: Yes, of course, it is editable, you could rename and make your own specific vehicle ID or name or license plate etc. if you use our server, you will need us to revise the vehicle ID for you if you set up your own server, there is software for all the configuration, so you could set the vehicle ID by the software config.



    4) Can it support Mobile APP in APP store for Andriod or IOS phone?



    Re: Yes, can download mobile APP in Andriod or IOS phone




    Detailed Fuction



    128G X Two SD Card 720P HD Mini 4CH SD Card Mobile DVR with GPS Track

    128G X Two SD Card 720P HD Mini 4CH SD Card Mobile DVR with GPS Track

    128G X Two SD Card 720P HD Mini 4CH SD Card Mobile DVR with GPS Track
