DC24V Car Rearview Camera Metal Housing Water Resistance IP67

DC24V Car Rearview Camera Metal Housing Water Resistance IP67

    • DC24V Car Rearview Camera Metal Housing Water Resistance IP67
    • DC24V Car Rearview Camera Metal Housing Water Resistance IP67
    • DC24V Car Rearview Camera Metal Housing Water Resistance IP67
  • DC24V Car Rearview Camera Metal Housing Water Resistance IP67

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-389

    Payment & Shipping Terms:

    Minimum Order Quantity: 5PCS
    Price: negotiated
    Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
    Delivery Time: 2-3 days for samples, 5-10 days for large orders
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 5,000pcs per month , DC 24V Waterproof auto shutter wide view rear view camera kit for truck lorry heavy duty
    Contact Now
    Detailed Product Description
    Type: Rear View Camera Kit For Truck Lorry Heavy Duty IR LED: 18pcs
    Night Vision: Yes Lens Angle: 120 Degree Wide Angle
    Power: DC12 Or DC24 Resolution: 800TVL/700TVL/600TVL/480TVL/420TVL
    Material: Metal Housing Waterproof: IP67/IP68

    DC24V Car Rearview Camera Metal Housing Water Resistance IP67



    Main Features



     1. Horizontal Resolution: 800TVL/700TVL/600TVL/480TVL/420TVL

     2. Water Resistance: IP67

     3. Suitable for safety and security

     4. Waterproof and can be installed on your license plate

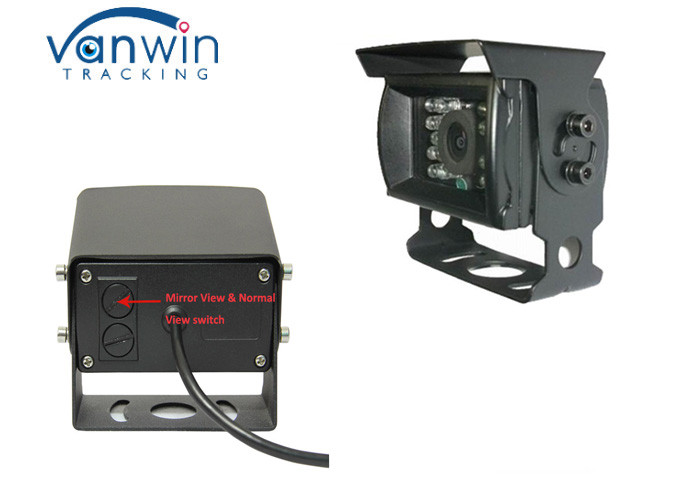

     5. Mirror / Normal image Adjustment (depending on the chips)




    Specifications


    Conch Dome, 24 IR LED, night vision distance 10-20 meters, using low
    power panels, stable performance
    Image Sensor: SONY 1/3 "CCD
    Effective pixels: 500 (H) x582 (V)
    Horizontal resolution: 800TVL/700TVL/600TVL/480TVL/420TVL
    Conch Dome, 18 IR LED, night vision distance 10-20 meters, using low
    power panels, stable performance
    Image Sensor: SONY 1/3 "CCD
    Effective pixels: 500 (H) x582 (V)
    Horizontal resolution: 800TVL/700TVL/600TVL/480TVL/420TVL
    Power consumption: 1000mA
    Working temperature: -10 ~ +50 degrees
    Humidity: 40% ~ 90%
    AGC: Auto / Auto
    IR LED: 24PCS
    IR distance: 20 meters
    LED life: 20000 hrs
    Focus: Fixed / Fix



    Chips Available for Option



    • Sony  CCD 480TVL
    • Sony CCD 600TVL
    • Sony CCD 700TVL
    • Sony CCD 800TVL


    Connetor Available for Option


    1. 4Pin Aviation connector
    2. DC+RCA connector
    3. CCTV security BNC connector



    Application

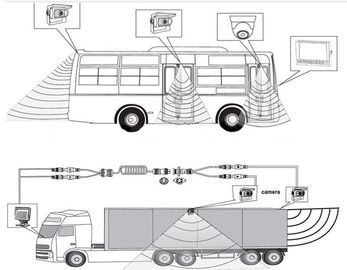

    The mini bus dome camera is widely used in bus, car, taxi, dangerous cargo truck, police car, van, Train, ship, home security etc.


    Quality Control

    1) All our products must be 100% pre-tested before shipping by our professional QC Team
    2) Items have 18 months warranty since the date receving the goods.
    3) Aging time 48 hours to ensure stable quality
    4) Life time tech support
    5) Use a metal shell, color of the lacquer that bake, better resistance to rust, prolong life.

    6) Super Waterproof DesignWe adopt special sealing method, and work more than 20 hours of bubber water test process,

     put an end to any water infiltration.




    Packing Detail

    1. Neutral Box.
    2. Your Logo is also Welcomed.
     DC24V Car Rearview Camera Metal Housing Water Resistance IP67

    DC24V Car Rearview Camera Metal Housing Water Resistance IP67



    Other Cameras for Option



    DC24V Car Rearview Camera Metal Housing Water Resistance IP67

    Heavy duty 1/3'' Sony ccd 700tvl dvr car rearview camera with mirophone for all types of vehicles:



    DC24V Car Rearview Camera Metal Housing Water Resistance IP67
