4CH Wifi Camera Board Module CCTV DVR Kit with Multi-view cctv dome camera

4CH Wifi Camera Board Module CCTV DVR Kit with Multi-view cctv dome camera

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW619HD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month ;
Get Best Price Contact Now

Detail Information

Working Temperature: -20°C - 65°C Power Supply: 8V-36V
Storage: 2TB Hard Drive And SSD Functions: 3G Live Video ,GPS Track
Software: Playback Software, Client Software, Server Software Video Format: H.264 Or ASF
Service: OEM/ODM Resolution: 4CH 720P/D1/CIF
Agent: Welcome
High Light:

vehicle camera dvr

,

hd car dvr

Product Description

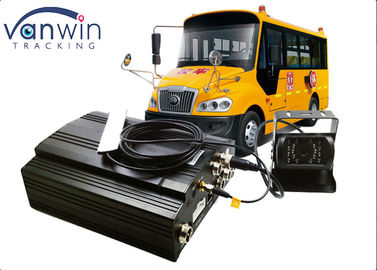

4CH Wifi Camera Board Module CCTV DVR Kit with Multi-view cctv dome camera


Main Features

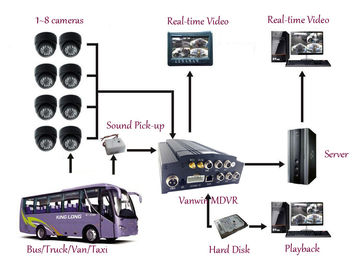

1. It is 1080P AHD 4CH mobile dvr ,so can connect with 4 AHD cameras from 1.0 Mega pixels /1.3 MP/2.0 MP or analog camera both .It will take you high resolution video .
2. GPS tracking ,3G live video ,Wifi for optional ,it will let you see realtime monitoring with GPS track
3. RJ45 lan port
4. G-sensor ,UPS tech both to record crash level and protect video safe.
5. 6ch alarm input
7. World class anti-vibration technology for over 8 years lifetime ,widely used in Government or Military'vehicles fleeting .


Specification


Item Description
OS Linux
Graphics Operation Interface System parameters can be set through external display and remote controller
Security Management 2-level management for user password, administrator password, supporting encrypted transmission
Video and Preview Video Input, Output 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω
  OSD Character superposition function, information superposition of time and date, device ID and GPS, etc.
  Video Compression Format Compression coding. Applying Hisilicon hi-performance processor.
  Dual-Stream Supported
  Preview Function Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images
  Frame Rate PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
  Resolution AHD 720P,D1, HD1 ,CIF 4channel
  Quality Grade 1 to grade 5 for selection (descending)
  Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection
D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

Audio Audio Input, Output 4-channel input, 1-channel output
  Compression Format G.726 coding
Recording Storage Medium Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;
  File Format/ System Special file system
  Video Strategies Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
  Video Search Searching by time, type, storage device and other conditions
  Video Playback Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files
    Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
Alarm Alarm Input/ Output 8-channel on/off signal alarm input, 1-channel on/off signal alarm output
  Alarm Recording Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min
  Storage Space Alarm Supporting settings for alarm of storage space
  Function Alarm GPS overspeed alarm, acceleration alarm, motion detection alarm
Communication Ports 485,RS232, RJ45 10M/100M self-adaptable network interface
Wireless Transmission (Optional) Supporting Wi-Fi;
GPS (Optional) Supporting external GPS
PTZ Control Supporting PTZ control realized by local;
Parameter Configuration Supporting parameter configuration functions for mobile DVR coding channel;
G-Sensor Embedded
System Upgrading Supporting SD card, hard drive upgrading and remote upgrading
Power Supply and Power Consumption Power Supply

1. ACC on/off
2. Hard drive lock on/off
3. Delayed shutdown
4. Timed on/off

  Input Voltage DC:+8V ~ +36V
  Output Voltage +12V@5*0.5A;
  Power-off Protection With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
  Power Consumption <10W in normal operation; <0.5W in standby mode
Operating Environment Temperature Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
  Humidity 10% to 95%
