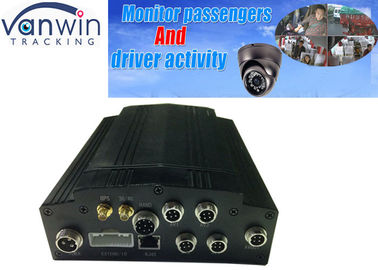

4CH Mobile 720P Car Mobile IP DVR Kit GPS With fuel sensor, remotely cut oil for Tank Truck

4CH Mobile 720P Car Mobile IP DVR Kit GPS With fuel sensor, remotely cut oil for Tank Truck

    • 4CH Mobile 720P Car Mobile IP DVR Kit  GPS With fuel sensor, remotely cut oil for Tank Truck
    • 4CH Mobile 720P Car Mobile IP DVR Kit  GPS With fuel sensor, remotely cut oil for Tank Truck
    • 4CH Mobile 720P Car Mobile IP DVR Kit  GPS With fuel sensor, remotely cut oil for Tank Truck
    • 4CH Mobile 720P Car Mobile IP DVR Kit  GPS With fuel sensor, remotely cut oil for Tank Truck
  • 4CH Mobile 720P Car Mobile IP DVR Kit  GPS With fuel sensor, remotely cut oil for Tank Truck

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW619HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month ; 4CH Mobile 720P Car Mobile IP DVR Kit GPS With fuel sensor, remotely cut oil for Tank Truck
    Contact Now
    Detailed Product Description
    Power Supply: 8V-36V Video Input: 4 Channels
    Functions: 4 Cameras Recording ,3G Realtime Monitoring ,GPS Tracking ,Wifi Optional Software: Playback Software, Client Software, Server Software
    Support: Mobile Or PC Monitoring Service: OEM/ODM
    Alarm: 6CH Alarm Inputs Working Temperature: -20°C - 65°C
    Type: 4CH Mobile 720P Car Mobile IP DVR Kit GPS With Fuel Sensor, Remotely Cut Oil

    4CH Mobile 720P Car Mobile IP DVR Kit GPS With fuel sensor, remotely cut oil for Tank Truck



    Specification



    Item Description
    OS Linux
    Graphics Operation Interface System parameters can be set through external display and remote controller
    Security Management 2-level management for user password, administrator password, supporting encrypted transmission
    Video and Preview Video Input, Output 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω
      OSD Character superposition function, information superposition of time and date, device ID and GPS, etc.
      Video Compression Format Compression coding. Applying Hisilicon hi-performance processor.
      Dual-Stream Supported
      Preview Function Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images
      Frame Rate PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
      Resolution AHD 720P,D1, HD1 ,CIF 4channel
      Quality Grade 1 to grade 5 for selection (descending)
      Bit Rate

    CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

    HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

    D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

    Audio Audio Input, Output 4-channel input, 1-channel output
      Compression Format G.726 coding
    Recording Storage Medium Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;
      File Format/ System Special file system
      Video Strategies Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
      Video Search Searching by time, type, storage device and other conditions
      Video Playback Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files
        Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
    Alarm Alarm Input/ Output 8-channel on/off signal alarm input, 1-channel on/off signal alarm output
      Alarm Recording Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min
      Storage Space Alarm Supporting settings for alarm of storage space
      Function Alarm GPS overspeed alarm, acceleration alarm, motion detection alarm
    Communication Ports 485,RS232, RJ45 10M/100M self-adaptable network interface
    Wireless Transmission (Optional) Supporting Wi-Fi;
    GPS (Optional) Supporting external GPS
    PTZ Control Supporting PTZ control realized by local;
    Parameter Configuration Supporting parameter configuration functions for mobile DVR coding channel;
    G-Sensor Embedded
    System Upgrading Supporting SD card, hard drive upgrading and remote upgrading
    Power Supply and Power Consumption Power Supply

    1. ACC on/off

    2. Hard drive lock on/off

    3. Delayed shutdown

    4. Timed on/off

      Input Voltage DC:+8V ~ +36V
      Output Voltage +12V@5*0.5A;
      Power-off Protection With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
      Power Consumption <10W in normal operation; <0.5W in standby mode
    Operating Environment Temperature Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
      Humidity 10% to 95%





    How to realise function

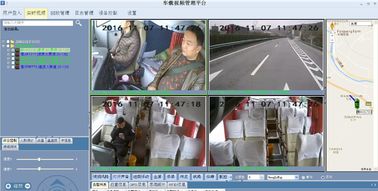

    1.Realtime live video on client platform

    2. Playback

    4CH Mobile 720P Car Mobile IP DVR Kit  GPS With fuel sensor, remotely cut oil for Tank Truck

    4CH Mobile 720P Car Mobile IP DVR Kit  GPS With fuel sensor, remotely cut oil for Tank Truck





    How to instal MDVR



    4CH Mobile 720P Car Mobile IP DVR Kit  GPS With fuel sensor, remotely cut oil for Tank Truck

    4CH Mobile 720P Car Mobile IP DVR Kit  GPS With fuel sensor, remotely cut oil for Tank Truck
