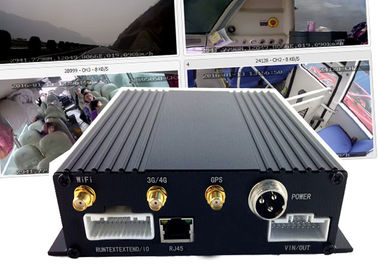

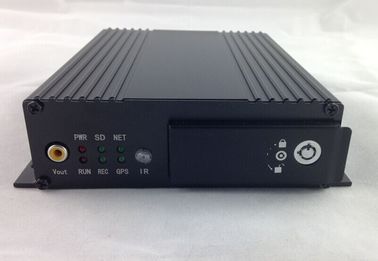

School Bus H.264 HD Car DVR Video Recorder Dual SD Card Wifi AHD MDVR

School Bus H.264 HD Car DVR Video Recorder Dual SD Card Wifi AHD MDVR

    • School Bus H.264 HD Car DVR Video Recorder Dual SD Card Wifi AHD MDVR
    • School Bus H.264 HD Car DVR Video Recorder Dual SD Card Wifi AHD MDVR
    • School Bus H.264 HD Car DVR Video Recorder Dual SD Card Wifi AHD MDVR
  • School Bus H.264 HD Car DVR Video Recorder Dual SD Card Wifi AHD MDVR

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW618HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month; 4CH HD Camera Wifi 3G AHD SD card MDVR 1080P Live streaming Camera for school bus
    Contact Now
    Detailed Product Description
    Power Supply: 8V-36V Storage: Dual SD Cards, Max 128GB
    Video Input: 4 Channels Software Support: Client,server,playback Software
    Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Intercom: Support
    Warranty: 12 Months 3G/4G: Support
    GPS Tracking: Support

    School Bus H.264 HD Car DVR Video Recorder Dual SD Card Wifi AHD MDVR





    MDVR Overview





    The AHD SD Card MDVR is a practical 3G+GPS system for Veihcle mobile serveillance purpose which combines latest high technology such as Audio&Video Coding&Decoding, Mass HD&SD storage, Streaming media network, Audio&Video denoising, Mechanical Shockproof(Anti-vibration), UPS power protection, Flexible wide voltage range and etc.

    Application:
                   A. Road Transportation
                   B. Railway Transportation
                   C. Water Transportation
                   D. Air Transportation
                   E. Other ways with live surveillance purpose




    Main Features



     1. Standard H.264 compression format ensures high rate, less storage space and clear.

     2. SD card support, faster recording speed and easy installation.

     3. Advanced PCB layout&design and reliable SMT processing

     4. 8 - 36 VWide voltage

     5. 5V/0.5A for Input, 12V/2A for output, compatible and easy installation

     6. 4 Alarm in, 1 Alarm out. 4 Video in, 1 Video out. 4 Audio in, 1 Audio out. RS485/232 Support.

     7. Professional management platform and PLAY software

     8. Support Brake alarm, Reverse alarm, Motion detect, Door opening alarm,CMS platform,

        Customized Player.

     9. Support Geo fence, Location, Speed alarm, G-sensor etc.

    10. Support oil sensor, Fuel cut, Power cut, SOS alarm, Alarm button, Online tracking, Live talkback,

    11. Live surveillance, Live simultaneous storage, Dispatching system, Camera rotation,                                     PTZ cloud control, SMS function, CMS platform, iOS&Android client(for Apple and Android phone),             Remote control and etc.





    Specifications





    Item

    Description

    OS

    Linux

    Graphics Operation Interface

    System parameters can be set through external display and remote controller

    Security Management

    2-level management for user password, administrator password, supporting encrypted transmission

    Video and Preview

    Video Input, Output

    4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

    OSD

    Character superposition function, information superposition of time and date, device ID and GPS, etc.

    Video Compression Format

    Compression coding. Applying Hisilicon hi-performance processor.

    Dual-Stream

    Supported

    Preview Function

    Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images

    Frame Rate

    PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

    Resolution

    CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most

    Quality

    Grade 1 to grade 5 for selection (descending)

    Bit Rate

    CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

    HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

    D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

    Audio

    Audio Input, Output

    4-channel input, 1-channel output

    Compression Format

    G.726 coding

    Recording

    Storage Medium

    Supporting SD card, which supports up to 32G

    File Format/ System

    ASF/FAT32

    Video Strategies

    Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

    Video Search

    Searching by time, type, storage device and other conditions

    Video Playback

    Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

    Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

    Alarm

    Alarm Input/ Output

    6-channel on/off signal alarm input, 1-channel on/off signal alarm output

    Alarm Recording

    Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

    Storage Space Alarm

    Supporting settings for alarm of storage space

    Function Alarm

    GPS overspeed alarm, acceleration alarm, motion detection alarm

    Communication Ports

    RS232,

    Wireless Transmission (Optional)

    Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection;

    Compatible with GPRS, EDGE;

    Embedded Wi-Fi module;

    GPS (Optional)

    Supporting external GPS

    Remote Data Transmission Channel Selection

    Supporting 3G; supporting remote downloads of back-end recording strategies;

    PTZ Control

    Supporting PTZ control realized by local ad client software;

    Parameter Configuration

    Supporting parameter configuration functions for mobile DVR coding channel;

    G-Sensor

    Embedded

    System Upgrading

    Supporting SD card, hard drive upgrading and remote upgrading

    Power Supply and Power Consumption

    Power Supply

    1. ACC on/off

    2. Hard drive lock on/off

    3. Delayed shutdown

    4. Timed on/off

    Input Voltage

    DC:+8V ~ +36V

    Output Voltage

    +12V@4*A

    Power-off Protection

    With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

    Power Consumption

    <10W in normal operation; <0.5W in standby mode

    Operating Environment

    Temperature

    Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

    Humidity

    10% to 95%

    Dimensions

    160(W) x62(H) x200(D) mm.

    Weight

    Net: 1000g, Gross: 1500g





    Environmental Adaptability

    Applicable to various applications, and the indexes are detailed as follows:





    Item

    Index

    Upper limit of temperature for storage

    65℃

    Upper limit of temperature for operation

    55℃

    Lower limit of temperature for storage

    -40℃

    Lower limit of temperature for operation

    0℃, or -25℃ with hard drive heating module

    Working altitude

    –300 ~ 3048m (10, 000 ft)

    Transmission altitude

    –300 ~ 12, 192m (40, 000 ft)

    RH

    20%~95%

    Max. temperature gradient

    20℃/h

    Vibration threshold (Unpowered)

    No greater than 5mm p-p (5 – 22Hz)

    49m/s2 (5.0G) (22 – 500Hz)

    Vibration threshold (Normal operation)

    No greater than 1.0mm p-p (5 - 22Hz)

    9.8 m/s2(1.0G) (22 – 500Hz)

    Impact threshold (Unpowered)

    No greater than 1200G, (11, 760m/s2)

    (duration 1 ms, 1m height, semi sine wave)

    Impact threshold (Normal operation)

    No greater than 500G, (4, 900m/s2)

    (duration 2 ms, semi sine wave)

    IP of enclosure

    IP54







    Package and Shipping



    1. We have our standard package(Neutral box) for the products. We also welcome OEM packaging for products.



    Item: VW618HD

    QTY: 12 sets

    N.W.: 14 KG

    G.W.: 15 KG

    Carton size: 44 X 41 X 35 CM





    2. For shipping,



    We suggest Air express(DHL, Fedex, UPS, TNT and ect.) way for sample and small quantity.

    And sea way for big orders.







    FAQ





    1. Q: Does the MDVR support Hard drive and SD card?

    A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.

    The storage capacity can be from 32GB to 2TB.



    2. Q: Is it difficult to install MDVR into the vehicle?

    A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.

    And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.



    3. Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,

    is it available?

    A: Definitely yes!

    The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.

    In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,

    PTZ camera, and so on.





    4. Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?

    A: Yes, we have SDK ready and welcome your OEM customized order!
