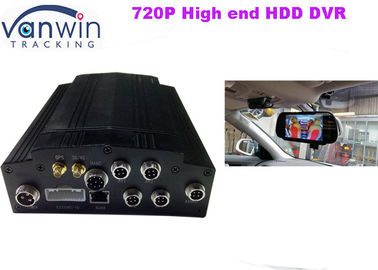

H.264 CCTV AHD 720P Bus Fleet HD Mobile DVR With Vehicle pc GPS Camera

H.264 CCTV AHD 720P Bus Fleet HD Mobile DVR With Vehicle pc GPS Camera

    • H.264 CCTV AHD 720P Bus Fleet  HD Mobile DVR  With Vehicle pc  GPS Camera
    • H.264 CCTV AHD 720P Bus Fleet  HD Mobile DVR  With Vehicle pc  GPS Camera
    • H.264 CCTV AHD 720P Bus Fleet  HD Mobile DVR  With Vehicle pc  GPS Camera
    • H.264 CCTV AHD 720P Bus Fleet  HD Mobile DVR  With Vehicle pc  GPS Camera
  • H.264 CCTV AHD 720P Bus Fleet  HD Mobile DVR  With Vehicle pc  GPS Camera

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW619HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month ;
    Contact Now
    Detailed Product Description
    Power Supply: 8V-36V Storage: 2TB Hard Disk
    Functions: 3G Live Video ,GPS Tracking ,WIFI Download Highlights: High End Level,RJ45 Lan Port,RS232/485 Interface,G-sensor,UPS
    Software: Server,Client,Player,Upgrade OEM/ODM: YES
    Resolution: 4CH 720P/D1/CIF Type: H.264 CCTV AHD 720P Bus Fleet HD Mobile DVR With Vehicle Pc GPS Camera

    H.264 CCTV AHD 720P Bus Fleet HD Mobile DVR With Vehicle pc GPS Camera


    Specification

    1. AHD 1080P MDVR ,both support analog camera and AHD 1.0/1.3/2.0 Mega pixels cameras
    2. RJ45 lan port
    3. G-sensor for recording crash level
    4. RS232/485 interface for more functions customization
    5. UPS tech to protect sudden power off
    6. The world class anti-vibration technology for over 8 years lifetime


    ItemDescription
    OSLinux
    Graphics Operation InterfaceSystem parameters can be set through external display and remote controller
    Security Management2-level management for user password, administrator password, supporting encrypted transmission
    Video and PreviewVideo Input, Output4-channel video input, 1channel video output; 1.0Vp-p, 75Ω
     OSDCharacter superposition function, information superposition of time and date, device ID and GPS, etc.
     Video Compression FormatCompression coding. Applying Hisilicon hi-performance processor.
     Dual-StreamSupported
     Preview FunctionPreview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images
     Frame RatePAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
     ResolutionAHD 720P,D1, HD1 ,CIF 4channel
     QualityGrade 1 to grade 5 for selection (descending)
     Bit Rate

    CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

    HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection
    D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

    AudioAudio Input, Output4-channel input, 1-channel output
     Compression FormatG.726 coding
    RecordingStorage MediumSupporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;
     File Format/ SystemSpecial file system
     Video StrategiesRecording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
     Video SearchSearching by time, type, storage device and other conditions
     Video PlaybackSupporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files
      Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
    AlarmAlarm Input/ Output8-channel on/off signal alarm input, 1-channel on/off signal alarm output
     Alarm RecordingPrerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min
     Storage Space AlarmSupporting settings for alarm of storage space
     Function AlarmGPS overspeed alarm, acceleration alarm, motion detection alarm
    Communication Ports485,RS232, RJ45 10M/100M self-adaptable network interface
    Wireless Transmission (Optional)Supporting Wi-Fi;
    GPS (Optional)Supporting external GPS
    PTZ ControlSupporting PTZ control realized by local;
    Parameter ConfigurationSupporting parameter configuration functions for mobile DVR coding channel;
    G-SensorEmbedded
    System UpgradingSupporting SD card, hard drive upgrading and remote upgrading
    Power Supply and Power ConsumptionPower Supply

    1. ACC on/off
    2. Hard drive lock on/off
    3. Delayed shutdown
    4. Timed on/off

     Input VoltageDC:+8V ~ +36V
     Output Voltage+12V@5*0.5A;
     Power-off ProtectionWith patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
     Power Consumption<10W in normal operation; <0.5W in standby mode
    Operating EnvironmentTemperatureNormal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
     Humidity10% to 95%

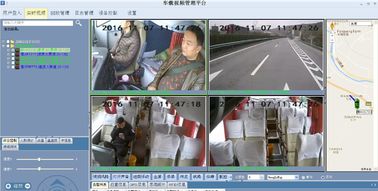

    CMS Platform and playback

    H.264 CCTV AHD 720P Bus Fleet  HD Mobile DVR  With Vehicle pc  GPS Camera
    H.264 CCTV AHD 720P Bus Fleet  HD Mobile DVR  With Vehicle pc  GPS Camera



    Testing Procedure

    H.264 CCTV AHD 720P Bus Fleet  HD Mobile DVR  With Vehicle pc  GPS Camera
