    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW618HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month ; Wifi Router Sim Card SD card 3G Mobile DVR HD MDVR Vehicle DVR AHD 720P
    Contact Now
    Detailed Product Description
    Format: H.264 Storage Capacity: 128G SD Card Or 256G Dual SD Card
    Funtion: Monitoring , Record , GPS Tracking, 3G And Wifi Optional Highlights: RJ45 Lan Port,UPS ,G-sensor,6CH Alarm Input,RS232/485 Interface
    Resolution: Real 720P Customization: Yes
    Warranty: One Year Agents: Negotiable

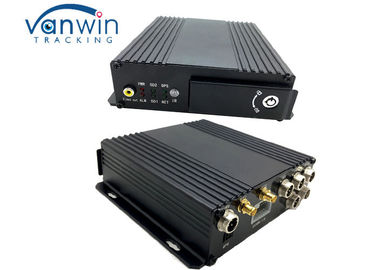

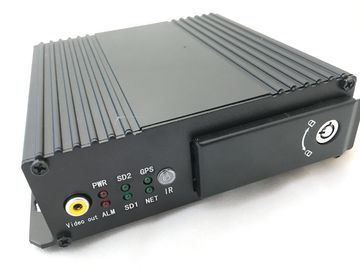

    Wifi Router Sim Card SD card  3G Mobile DVR HD MDVR Vehicle DVR AHD 720P

    Brief information of this production:



    4 channel 720P

    SD card----max 128GB

    Support realtime video (you need pay for the extra 3G module)

    GPS----show the location of vehicle on the map

    Free iFar Player and CMS software

    720P/D1/CIF optional



    Specification



    A. Standard H.264 compression format ensures high rate, less storage space and clear.
    B. G.726 format for 4 audio in with 1 out
    C. 6 Alarm in with 2 out
    D. RJ 45 Lan port
    E. Double Stream for recording and Multiple windows watching
    F. UPS technology Automatic protection against sudden power off
    G. G-sensor ,RS232/485 interface
    H. Wide voltage range of 8 - 36 V and Automatic heater
    I. support PTZ camera
    J. ASF format for Video play, Universal VLC player support
    K. 3G, WIFI and GPS model optional

    L. Mobile phone support(Android/iOS)

    M. Support Brake alarm, Reverse alarm, Motion detect, Door opening alarm, CMS platform, Customized Player.

    Support Geo fence, Location, Speed alarm, G-sensor etc.
    Support oil sensor, Fuel cut, Power cut, SOS alarm, Alarm button, Online tracking, Live talkback, Live surveillance, Live simultaneous storage, Dispatching system, Camera rotation, PTZ cloud control, SMS function, CMS platform, iOS&Android client(for Apple and Android phone), Wireless WIFI, Remote control and etc.





     H.264 video code compression, dual stream output; SD Mobile DVR Manual V6.0 9

     G.726 audio compression format, 4-channel audio input, 1-channel audio output.

     Power-off protection in emergency, adopting special UPS technology which ensures the device to work for 3-5 seconds after the external power supply is cut, thus ensure complete video data and avoid file damage;

     Real-time local recording, multiple formats for selection, supporting full screen of single channel or multi-window stitching upon accidents;

     Switch signal interface, 8-channel alarm input, 2-channel alarm output;

     PTZ control;

     Multiple recording modes: record upon startup, timed recording and triggered recording;

     Special file system: can be played with Special playback software, supporting 1-channel or 4-channel or 8-channel synchronous playback;

     Data storage, supporting a 2.5” hard drive and 1 SD card with the capacity up to 128G; supporting dual-stream mirror image video recording, SD card recording upon loss of hard drive, supporting hard drive heating, applying drawer-type hard drive box;

     Wide voltage design, 9-36V DC wide voltage input, suitable for various vehicles; DC 12V/2.5A output;

     Rapid startup, capable of entering normal working mode within 25 seconds after startup; supporting on/off with key switch, timed on/off and delayed on/off, etc.;

     Optional functions:

    •  3G wireless transmission;
    •  Wi-Fi wireless transmission;
    •  GPS, G-sensor acceleration sensor, with precise time correction;
    •  IP calling;



    Our Advantages





    1. Our dvr has the world class anti-vibration technology,widely used in military .It is very long lifetime  for over 10 years.
    2. We are professional manufacturer,who can offer you great price and technology support.
    3. We have a very warm and capable technical team,who can customize many projects for you.We have many examples .Please check our offical website for more details.
    4. Great Service.

    5.Our new products:3G DVR with oil sensor,AHD DVR,3G DVR with video people counter,our customized projects like VPN DVR ,Wifi Ads,Train surveilllance,Web-based software combination with DVR and so on.
