Anti-explosion Car Surveillance Camera for Oil Tank Rear View or Monitoring

Anti-explosion Car Surveillance Camera for Oil Tank Rear View or Monitoring

Anti-explosion Car Surveillance Camera for Oil Tank Rear View or Monitoring

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-158

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral carton box package by default
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month , Anti-explosion Car Camera for Oil Tank Rear View or Monitoring
Contact Now
Detailed Product Description
Type: Oil Tank Camera Resolution: 800TVL/700TVL/600TVL
TV System: PAL Or NTSC Power: DC12 Or 24V
Warranty: 12 Months Lens Angle: 140 Degree Wide Angle
Camera Name: Anti-explosion Car Camera For Oil Tank Rear View Or Monitoring

Anti-explosion Car Surveillance Camera for Oil Tank Rear View or Monitoring

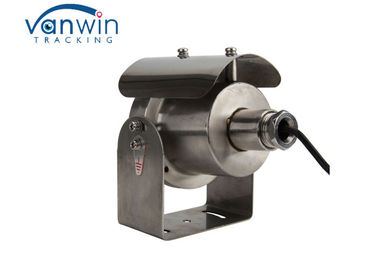

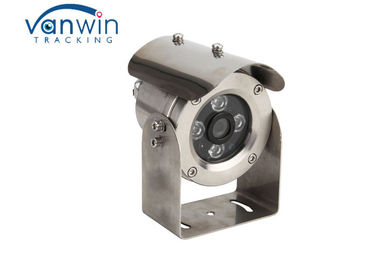

This is special model camera for oil tank,gas truck monitoring.It is metal hull with many IR lights for super good night vision .It is anti-explosion and IP68 waterproof.


Take 1/3 sony CCD specification for example.

There are many chips from 420TVL to 800TVL for optional.


Image Sensor 1/3" 600TVL SONY CCD
Video System PAL/NTSC
Pixels PAL:752(H)×582(V)
NTSC:768(H)×494(V)
Horizontal Resolution 600 TVL
Min Illumination 0.01LUX(0 Lux IR on)
SNR ≥48dB
Electronic Shutter 1/50-1/10000(S)
Video Output 1.0V±0.5Vp-p 75Ω
View Angle 140°
Working Voltage DC12V±0.5V
Consumption 100mA±10%
Display image Mirror/normal optional
MIC Optional
Camera Len f:3.6mm


 Anti-explosion Car Surveillance Camera for Oil Tank Rear View or Monitoring
