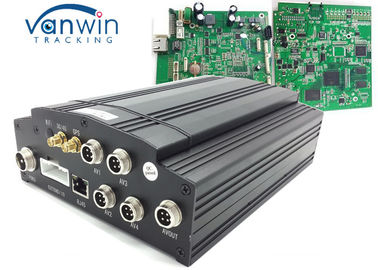

1T HDD Car Mobile DVR UPS Tracking 3G Vehicle CCTV 4 Channel Alarm System VW605

1T HDD Car Mobile DVR UPS Tracking 3G Vehicle CCTV 4 Channel Alarm System VW605

    • 1T HDD Car Mobile DVR UPS Tracking 3G Vehicle CCTV 4 Channel Alarm System VW605
    • 1T HDD Car Mobile DVR UPS Tracking 3G Vehicle CCTV 4 Channel Alarm System VW605
  • 1T HDD Car Mobile DVR UPS Tracking 3G Vehicle CCTV 4 Channel Alarm System VW605

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW605GSW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month ; 1T HDD 3G Car Mobile DVR UPS Tracking 3G Vehicle CCTV 4 Channel Alarm System VW605
    Contact Now
    Detailed Product Description
    Main Software: Client , Player, Server Software Storage Capacity: 1TB HDD And 64G SD Card
    3G GPS WIFI G-sensor: Optional Power Supply: 8~36V Wide Voltage
    Video Input/output: 4-channel Video Input, 1channel Video Output; OEM/ODM: YES Or Customize
    Video Format: H.264 Cameras: Support 4 Cameras
    Alarm Inputs: 6ch Alarm Inputs

    1T HDD Car Mobile DVR UPS Tracking 3G Vehicle CCTV 4 Channel Alarm System VW605

    Overview



    4CH MDVR is mainly used for vehicle fleet management with 3G live video ,GPS tracking,Wifi auto download.You can monitor realtime what passengers and drivers are doing in the bus or truck  or tailer ,especially for school bus for students'safety by PC or mobile phone; and also you can know where they are with GPS tracking ,and can playback the video in SD card or HDD if necessary.The security system  is very necessary all over in the world.

    605GSW model includes 3G ,GPS ,WIFI,G-sensor,Alarm input ,UPS technology to protect sudden power off ,talkback optional ,video people counter optional.





    Specification



    Item

    Description

    OS

    Linux

    Graphics Operation Interface

    System parameters can be set through external display and remote controller

    Security Management

    2-level management for user password, administrator password, supporting encrypted transmission

    Video and Preview

    Video Input, Output

    4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

    OSD

    Character superposition function, information superposition of time and date, device ID and GPS, etc.

    Video Compression Format

    Compression coding. Applying hisilicon hi-performance processor.

    Dual-Stream

    Supported

    Preview Function

    Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images

    Frame Rate

    PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

    Resolution

    CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most

    Quality

    Grade 1 to grade 5 for selection (descending)

    Bit Rate

    CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

    HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

    D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

    Audio

    Audio Input, Output

    4-channel input, 1-channel output

    Compression Format

    G.726 coding

    Recording

    Storage Medium

    Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology;

    File Format/ System

    ASF/FAT32

    Video Strategies

    Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

    Video Search

    Searching by time, type, storage device and other conditions

    Video Playback

    Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

    Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

    Alarm

    Alarm Input/ Output

    6-channel on/off signal alarm input, 1-channel on/off signal alarm output

    Alarm Recording

    Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

    Storage Space Alarm

    Supporting settings for alarm of storage space

    Function Alarm

    GPS overspeed alarm, acceleration alarm, motion detection alarm

    Communication Ports

    RS232, RJ45 10M/100M self-adaptable network interface

    Wireless Transmission (Optional)

    Supporting Wi-Fi;

    GPS (Optional)

    Supporting external GPS

    PTZ Control

    Supporting PTZ control realized by local;

    Parameter Configuration

    Supporting parameter configuration functions for mobile DVR coding channel;

    G-Sensor

    Embedded

    System Upgrading

    Supporting SD card, hard drive upgrading and remote upgrading

    Power Supply and Power Consumption

    Power Supply

    1. ACC on/off

    2. Hard drive lock on/off

    3. Delayed shutdown

    4. Timed on/off

    Input Voltage

    DC:+8V ~ +36V

    Output Voltage

    +12V@4*0.5A; +5V@0.5A

    Power-off Protection

    With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

    Power Consumption

    <10W in normal operation; <0.5W in standby mode

    Operating Environment

    Temperature

    Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

    Humidity

    10% to 95%

    Dimensions

    160(W) x62(H) x200(D) mm.

    Weight

    Net: 2200g, Gross: 3500g






    Our Advantages


    1. Our dvr has the world class anti-vibration technology,widely used in military .It is very long lifetime  for over 10 years.
    2. We are professional manufacturer,who can offer you great price and technology support.
    3. We have a very warm and capable technical team,who can customize many projects for you.We have many examples .Please check our offical website.
    4. Great Service.





    FAQ



    About Server:



    1)The server software is free? What are the system requirements to use this software?

    Yes, it is free of charge.

    For server setup, you need to buy a static IP adress from your local network provider, and then the computer should be with good performance (HDD capacity should be above 500GB, Memory above 4G, CPU above 2G, with dual core, Network interface should be 100 Mega or 1000 mega.



    2)What Operating system needs to be used? Windows 7 or 8 or Windows server? Can the WIFI auto download software be placed on the same system?

    RE: yes, you could use windows system, 7 or 8 are both okay. Also the wifi auto download software are with the same system. In fact, our current software are all based on windows system.(only Clients is with android system)



    3)When we start using your server and after some time we build our own, can the IP address in the units be changed remote or do we do this by wire?

    If you build your own server, then you could change the DVR local settings by manual. After you used your own server, then you could run the server TOOl software, then you could remotely change the settings of your vehicles, this is no problem.





    About Clients:

    1)Can we get our own look and feel for the client when we have our own?

    As for the Clients app, we could add your logo or your company name on it if you need, but the others, like menus, functions, structures etc are the same. You could not change the Clients software even you have your own server since the software is developed by our technician, only they could change or decorate.



    2)Is it correct that when we want to connect audio, we can connect a camera less to the system?

    You mean you want to hear the voice when you see the video? If so, no need to connect less camera, you just need to buy a sound pickup to connect together with one or two of the cameras, then the one or two channel will be with audio.





    3)Is it possible to rename the vehicle ID? For example for a name or a licence plate? (for example: 08-PVP-5)

    Yes, of course, it is editable, you could rename and make your own specific vehicle ID or name or license plate etc. if you use our server, you will need us to revise the vehicle ID for you if you set up your own server, there is software for all the configuration, so you could set the vehicle ID by the software config.



    4)Is there always a connection between the unit and the client? Is this adjustable? For example only in case of an alarm, or when someone looks in the client or the App to the images? I ask this because we want to use as less data as possible

    In fact, as long as there is 3G function and your sim card is workable, you could make such connection when you need to check the live vehicle running details. In fact, if you no need to check, you could close the Clients. If you need to check, then open it and login to check. As for alarm alert, yes, if the clients is open, you will get the alert in due time, but it the clients is closed, the live alert will be missed. If you set email notification or SMS sending by server, then the alert will never be missed even the 3G is not connected since servers works all the time no matter the 3G is connected or not.



    5)Is it necessary to create a different login for client and app? Is there a maximum of logins that can be created?

    In fact, for the accounts, you could create different ones with no problem( with your own server), the same account is applicable for both PC and phone, so usually we think no need to make different account, otherwise you want to give different authority to some users( like you dont' want UserA to monitor busA, then you could put busA out of UserA's account.). There is no limits for the accounts created.



    6)Is the GPS polling configurable? If so where can this be done?

    GPS polling is configurable. For the DVR local settings, we didn't make the interface to show such settings, because it is a kind of protection. If you need, we could also make a interface for such settings. By our current version, you could only set the GPS polling frequency by the server config( it means you have to set up your own server, then you could set the frequency by your own need)



    7)Is it possible to rename the alarm inputs? For example in burglary or SOS?

    Yes, our SDM605 supports 6 alarm inputs, such 6 alarm signals are customize for you, it means you could set different alarm signal to replace the original ones.( like you could set door open or window broken as the inputs, this is no problem)



    8)Can you explain where we can see (in the client) when an alarm input is triggered? We tried it and saw a car blinking on the map, but there was no report visible. The alarm input was activated by a positive 12V (manual page 15 art. 2.3.6). Re: As for the alarm list, you have to set the signals firstly, please click the above “setting” menu, then find “alarm linkage”, then there are many options for the signals, you could tick which you need, and upload a MP3 sound as alert. Please try and check.
