Home ProductsBus People Counter

GPRS network Bus Passenger Count System People Counting Number for 26 passenger bus

GPRS network Bus Passenger Count System People Counting Number for 26 passenger bus

    • GPRS network Bus Passenger Count System People Counting Number for 26 passenger bus
    • GPRS network Bus Passenger Count System People Counting Number for 26 passenger bus
    • GPRS network Bus Passenger Count System People Counting Number for 26 passenger bus
    • GPRS network Bus Passenger Count System People Counting Number for 26 passenger bus
  • GPRS network Bus Passenger Count System People Counting Number for 26 passenger bus

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW608CC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month
    Contact Now
    Detailed Product Description
    Technology: 2016 New And The 3rd Generation Product Name: Bus Passenger Count System By GPRS Network For People Counting Number
    Agents: Negotiable Highlights: Counting Cameras With Twin Lens
    Type: GPRS Model Support: Softwares And Technology Support
    Applicable: School Bus Or Bus Feature: Shaking-proof, Drop-proof, Data Encrypt Protect
    Warranty: One Year

    GPRS 3G network Bus Passenger Number Counting System for 26 passenger bus



    GPRS Bus Passenger Counting System Highlights



    It is 2018 full new model with double lens for each counting camera .Totally high accuracy.

    It is very necessay for Ticket system and for school bus.Developed by ourselves,

    and highly praised by clients since it come.Welcome you to test and be our agents in your country.

    It will take you very good business chance.We have more new products to show especially more customization projects .



    GPRS Bus Passenger Counting System Features



    * much higher accurate with twin lens for each counting camera.

    * High accuracy despite crowded group

    * Not affected by clothes color and passenger height etc

    * Long duration and low maintenance

    * Accurate counting for On and Off through Front and Back door

    * Automatically generate statistic report

    * Easy installation and uninstallation

    * More accurate surveillance and more effective management on ticket, conductor and driver.



    System: Linux
    CPU: TMS320DM6446

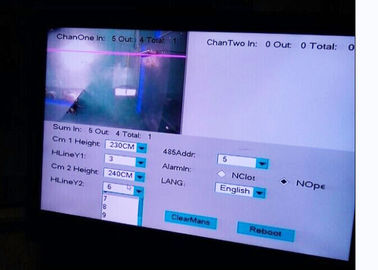

    Operation Interface: OSD with mouse and remote control
    Video Counting input: Max 2 channels
    Video Counting output: 1 channel
    operating voltage: DC 8—36V
    Operating power: ≤4W
    Operating temperature: -20°C -- +80°C
    Operating humidity: 10% -- 95%
    USB port: Standard 2.0


    1.1 Counting camera

    Image Sensor:1/3 SONY CCD

    TV System: PAL/NTSC

    TV Lines:700TVL

    Image Output: Synchronous sampling output

    Lens’ Spacing:5MM

    Len:960*576 Pixel,3.6 mm (2.8mm/3.6mm/4mm/6mm Optional)

    Viewing Angle:55 degree

    Installation height Range:2.1M~2.3M(3.6MM len), 1.9M~2.1M(2.8MM len),

    2.3M~2.5M(4MM len)

    Detecting Door Width Range:0.4M~1.2M

    White Balance:Auto

    Shutter:1/50-1/80000(s) 1/60-1/80000(s)

    Frame rate:25 FTPS

    Video Output Interface:Composite video output, 75Ω 1Vp-p Aviation

    Gain:Auto

    SNR:>48db

    Power Supply:DC12 V

    Power:≤1W

    Working Temperature:-30~+55℃

    Relative Humidity:10%~90% Not condensed

    Cooling: no active cooling, passive structure with heat dissipation

    Product Size:155(L)*50(W)*55(H)MM

    Weight:0.32KG



    1.2 Door Sensor
















    Contact Way:Connected when touch, disconnected when separate

    Max Power:10W

    Min Switch Voltage:100VDC

    Avalenche Voltage:200VDC

    Max Switch Current:0.5A

    Max Load Current:1A

    Max Contact Resistance:100mΩ

    Min Insulation Resistance:10~10Ω

    Moving Time:0.4ms

    Bounce Time:0.3ms

    Release Time:0.05ms

    Max Working Frequency:5000±400HZ

    Sensitivity:07-10AT

    Minimum Reset Index:5AT

    Max Contact Capacity:0.3pF

    Housing Material: Zinc Alloy

    Product Color: Gray

    Working Temperature:-30℃~80℃

    Working Relative Humidity:≤95%(40℃)

    Sense Magnetic /Release Distance:35-45MM

    GPRS network Bus Passenger Count System People Counting Number for 26 passenger bus

    Installing Instruction

    GPRS network Bus Passenger Count System People Counting Number for 26 passenger bus

    Please contact us for installation Manual in details
