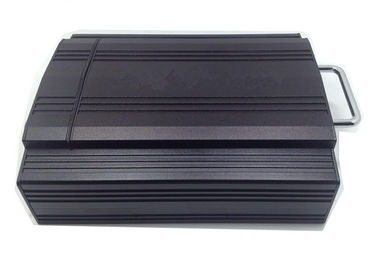

H.264 GPS HDD Mobile DVR 3G Hard Drive automotive dvr recorder with Free player

H.264 GPS HDD Mobile DVR 3G Hard Drive automotive dvr recorder with Free player

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW602

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month
Get Best Price Contact Now

Detail Information

Power Supply: 8V-36V Storage Capacity: 1TB Hard Drive, Max Support 2TB
Basic Function: 4 Cameras Monitoring With GPS Tracking Optional Resolution: D1/HD1/CIF
Main Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets 3G GPS WIFI: Optional
Shock Resistance: The World Class Level With Milatary Use H.264 Format: Yes
High Light:

car digital video recorder

,

hd car dvr

Product Description



H.264 GPS HDD Mobile DVR 3G Hard Drive automotive dvr recorder with Free player

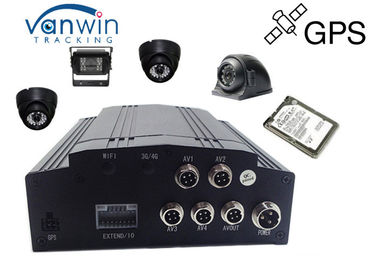

A complete set:



1) one MDVR with GPS(optional)

2) 4 car cameras with extension cables

3) one monitor, sound pick-up

4) HDD



Overviews



 The MDVR allows you to track and view your vehicles in REAL TIME via live video camera streaming from up to 4 cameras on your truck, car ,bus,taxis, police cars, excavators, petorl trucks, law enforcement vehicles, and other various types of vehicles with people counting,RFID card reader,fuel consumption sensor,LED display functions etc.



  Using the Internet, GPS, and Mobile CCTV technology, you can now view your vehicles, drivers and cargo from your office, wherever they are in the country. Our cloud-based Control Room software also allows you track your fleet, identifying speed, location, fuel-level and many more.

  Vehicle Tracking that lets you SEE the FULL picture.



1) 8V~36V Wide Range Power Input;

2) 4 Channel Realtime Video/ Audio Recording;

3) Supports HDD for storage;

4) Recording modes:power-on,timer,alarm and manual record

5) GPS optional

6) World Class anti-vibration Technology with very stable

quality

7) UPS Technology (3~5s Power-off delay after power cut);







Specification



Item

Description

OS

Linux

Graphics Operation Interface

System parameters can be set through external display and remote controller

Security Management

2-level management for user password, administrator password, supporting encrypted transmission

Video and Preview

Video Input, Output

4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

OSD

Character superposition function, information superposition of time and date, device ID and GPS, etc.

Video Compression Format

Compression coding. Applying Hisilicon hi-performance processor.

Dual-Stream

Supported

Preview Function

Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images

Frame Rate

PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

Resolution

CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most

Quality

Grade 1 to grade 5 for selection (descending)

Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

Audio

Audio Input, Output

4-channel input, 1-channel output

Compression Format

G.726 coding

Recording

Storage Medium

Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology;

File Format/ System

ASF/FAT32

Video Strategies

Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

Video Search

Searching by time, type, storage device and other conditions

Video Playback

Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

Alarm

Alarm Input/ Output

6-channel on/off signal alarm input, 1-channel on/off signal alarm output

Alarm Recording

Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

Storage Space Alarm

Supporting settings for alarm of storage space

Function Alarm

GPS overspeed alarm, acceleration alarm, motion detection alarm

Communication Ports

RS232, RJ45 10M/100M self-adaptable network interface

Wireless Transmission (Optional)

Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection;

Compatible with GPRS, EDGE;

Embedded Wi-Fi module;

GPS (Optional)

Supporting external GPS

Remote Data Transmission Channel Selection

Supporting 3G, Wi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies;

PTZ Control

Supporting PTZ control realized by local ad client software;

Parameter Configuration

Supporting parameter configuration functions for mobile DVR coding channel;

G-Sensor

Embedded

System Upgrading

Supporting SD card, hard drive upgrading and remote upgrading

Power Supply and Power Consumption

Power Supply

1. ACC on/off

2. Hard drive lock on/off

3. Delayed shutdown

4. Timed on/off

Input Voltage

DC:+8V ~ +36V

Output Voltage

+12V@4*0.5A; +5V@0.5A

Power-off Protection

With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

Power Consumption

<10W in normal operation; <0.5W in standby mode

Operating Environment

Temperature

Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

Humidity

10% to 95%

Dimensions

160(W) x62(H) x200(D) mm.

Weight

Net: 2200g, Gross: 3500g






Why choose us?



1. Professional Manufacturer of MDVR.We can produce 4CH or 8CH DVR for optiona.

Customize Different Projects like VPN MDVR , RFID ,Video people counter system , Train Surveillance Customization ,Oil Sensor and so on.They all are some of our examples.



2. The World Class Anti-vibration Technology with Very Stable Quality

3. Very Reasonable Price for Military Demand DVR

4. Our DVR , our Software ,our Best Service.Welcome you





Applications



 It's widely used in passenger cars, buses, taxis, police car, school bus, logistics vehicles, dangerous goods vehicles, train/subway/light rail, ship and ect.



Installation example



H.264 GPS HDD Mobile DVR 3G Hard Drive automotive dvr recorder with Free player 0
