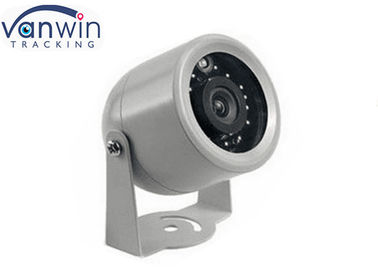

1.0 Mega Pixels Analog Bus Surveillance Camera , hd surveillance camera system High Resolution

1.0 Mega Pixels Analog Bus Surveillance Camera , hd surveillance camera system High Resolution

1.0 Mega Pixels Analog Bus Surveillance Camera , hd surveillance camera system High Resolution

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-100

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Type: 1.0 Mega Pixels Analog High Resolution Car Cameras For Bus Security System Resolution: 720P/960P/1080P Optional
TV System: PAL Or NTSC Lens Angle: 140 Degree Wide Angle
IR Cut: YES Operation Temperature: ‘-20℃ To 50 ℃
SMT Factory: YES Warranty: 12 Months



1.0 Mega Pixels Analog Bus Surveillance Camera , hd surveillance camera system High Resolution



Advantages



1. Professional manufacturer of MDVR and cameras with our own SMT factory also .

2. All kinds of chips like CMOS /CCD /AHD for optional

3. We also provide chips to cameras suppliers

4. We can produce many kinds of car cameras ,only if you can provide camera picture or link except some private mould .

5. We offer very best price

6. One year 12 months for warranty

7. We produce 500-800 pcs cameras per day .





Specification



Sensor 1/4 OV9712+ CMOS
TV System PAL NTSC
Effective Resolution PAL:1280(H)×720(V) NTSC:1280(H)×720(V)
Minimum Illumination 0.1 LUX / F1.2
Horizontal Resolution AHD:1.0 Mega Pixels720P,Analog:1000TVL
Scanning Frequency 50Hz 60Hz
Gamma Value 0.45
Electronic Shutter 1/50~1/100000s 1/60~1/100000s
SNR >46dB
Video Output 1.0V p-p
Operating Temperature ‘-20℃ to 50 ℃
Operating Humidity Relative humidity less than 95 %
Power DC12V (±10%)
