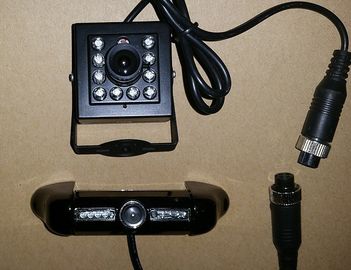

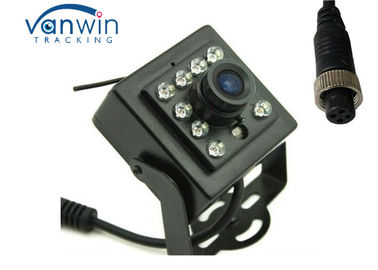

AHD Mini Square Metal IR Vehicle Hidden Camera For Taxi / Bus , 720p / 960p / 1080p
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-105 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | Drive Proof Taxi Safety Camera , Taxi Cameras | Resolution: | 1080P/960P/720P/800TVL/700TVL/600TVL |
|---|---|---|---|
| TV System: | PAL Or NTSC | Power: | DC12 Or 24V |
| IR Lights: | 10 Pcs | Lens Angle: | 140 Degree Wide Angle |
| Application: | For Car Or Taxi | Night Vision: | Yes |
| High Light: | hidden surveillance cameras,small hidden cameras |
||
Product Description
AHD Mini Square Metal IR Vehicle Hidden Camera For Taxi / Bus , 720p / 960p / 1080p
The mini camera is very popular for car or bus inside usage, which can support AHD/800TVL
/700TVL/600TVL; with color and IR Sensor vision, which can provide good picture on your screen,
also at night; with aviation plug, more stable, easy to instal; original factory with good price
Main Features
- 800TVL700TVL/600TVL /480TVL/420TVL for option
- Geat IR cameras, installed inside the vehicle
- Aviation plug, more stable ,easy to instal
- Original factory with good price
Take 1/3 sony CCD 700TVL specification for example.
| Model | VW-105 | |
| Image sensor | 1/3 SONY CCD | |
| TV system | PAL | NTSC |
| CCD solution | 4140+811 | 4140+810 |
| Resolution | 976(H)×582(V) | 976(H)×494(V) |
| Video input | 1.0Vp-p/75ΩCVBS | |
| Horizontal Resolution | 700TV | |
| Lu X | 0.001LUX | |
| S/N | >48dB (AGC OFF) | |
| Electronic shutter | 1/50 sec～1/100,000sec | 1/60 sec～1/100,000sec |
| Horizontal frequency | 50Hz | 60Hz |
| Input Voltage | DC12±10% | |
| WB | Auto/AWC→SET/Manual/Indoor/Outdoor/ Auto Track | |
| AGC | Auto/high/Middle/low | |
| BLC | On/off/ Ultra strong light suppression function | |
| ICR | auto/Outside / Color/BW | |
| XDR | on/off | |
| Noise Reduction | Option(Y/C) | |
| Privacy Shelter | On/Off | |
| Motion detection | On/Off(Option) | |
| Menu | Built-in | |
| Operating temperature | -10℃～ +50℃ | |
|
80% | |
| Storage Temperature | -20℃～ +60℃ | |
| dimension | 38*38 | |
| Weight | 12g | |
Payment&Delivery time
- Price terms: EXW or FOB Shenzhen, China
- Warranty period: one year or two years after delivery;It means free maintenance within the
- first or second year
- Payment terms: T/T (We have HSBC bank account), Western Union or Paypal is also welcomed
- Delivery: 2-15 days after order confirmation (depend on the quantity)
Our Commitment
- We would control our products quality strictly and use the best housing/case
- It is very an effective way to reduce the percentage of products sent back for repair and savethe
- cost for our oversea partners
- You could a very competitive price, but we can't promise our price is the lowest considering the quality.
- We value performance price more important than the lowest price.
Application:
Used with Mobile DVR / Car DVR (with 3G, 4G, GPS,WiFi) for vehicle real time monitoring, applied with car cameras used for vehicle monitoring in bus, taxi, school, bus, truck, police car, tour bus, tanker truck, escort car etc.
