12-24V 4 Split LCD 7/ 9 inch Digital TFT Car Monitor with Sun Visor , 32GB SD Card

12-24V 4 Split LCD 7/ 9 inch Digital TFT Car Monitor with Sun Visor , 32GB SD Card

    • 12-24V 4 Split LCD 7/ 9 inch Digital TFT Car Monitor with Sun Visor , 32GB SD Card
    • 12-24V 4 Split LCD 7/ 9 inch Digital TFT Car Monitor with Sun Visor , 32GB SD Card
    • 12-24V 4 Split LCD 7/ 9 inch Digital TFT Car Monitor with Sun Visor , 32GB SD Card
    • 12-24V 4 Split LCD 7/ 9 inch Digital TFT Car Monitor with Sun Visor , 32GB SD Card
  • 12-24V 4 Split LCD 7/ 9 inch Digital TFT Car Monitor with Sun Visor , 32GB SD Card

    Product Details:

    Place of Origin: Shenzhen,Guandong
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW702-DVR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: negotiated
    Packaging Details: Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn
    Delivery Time: 3-7 working days
    Payment Terms: T/T,Western Union,Paypal
    Supply Ability: 5000 pcs per month ;
    Contact Now
    Detailed Product Description
    Power Supply: 12V-24V DC Optional Screen Size: 9 Digital Screen
    Resolution: 800xRGBx480 Screen Type: 16:9
    Car Make: All Kinds Warranty: 12 Months
    Video Inputs: Four Ways Placement: Stand Alone
    Size: 235mm*170mm*76mm Function: Built-in DVR

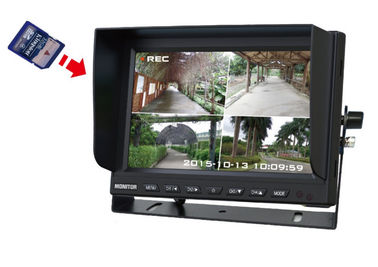

    12-24V 4 Split TFT LCD 7/ 9 inch Car Digital Monitor with Sun Visor, 32GB SD Card



    The 7/9 inch DVR can support 4 camera inputs and 1way audio input and 32GB sd card storage, which is widely used for truck, trailer, coach bus and ect.

    12-24V 4 Split LCD 7/ 9 inch Digital TFT Car Monitor with Sun Visor , 32GB SD Card



    Specification



    Screen Ratio:16:9
    Back Light Luminance:LED, 300cd/㎡
    Resolution:800xRGBx480
    Compatiblesystem:NTSC & PAL (automatically)
    OSD control:Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)
    View angle:Hor. L(70) R(70)   Ver. UP(50) DOWN(70)
    Image reversion:UP/Down and Left/Right
    Power requirement:12V DC (12-24V DC optional)
    Power consumption:<8W
    Size:180mm*121mm*24mm
    Key color: Black rubber oil, radium carving, through blue light
    Shockproof level:4G
    DVR image quality:DVR recording 4 channels video signal, VGA resolution:640*480, Recording speed: 60FPS, Storage format: AVI
    Memory interface:1 SD interface
    Video storage:SD high-speed card, maximum support 32G
    AV Inputs:4 way video input,1way audio input
    Number of Trigger and display:4 triggers
    Optional functions:4 PIN connector, Butterfly style bracket
    Other features:4 channel display for reversing, Full image/2 images/4 images adjustable, Built-in speaker, With removable visor

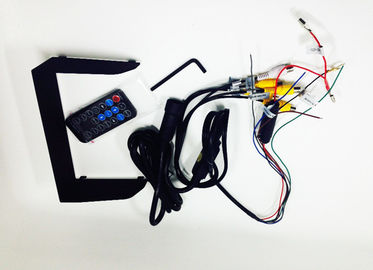

    Accessories:Remote controller, Power supply cable , User manual, Bracket

    Outline diagram

    12-24V 4 Split LCD 7/ 9 inch Digital TFT Car Monitor with Sun Visor , 32GB SD Card

    12-24V 4 Split LCD 7/ 9 inch Digital TFT Car Monitor with Sun Visor , 32GB SD Card

    RCA connection

    12-24V 4 Split LCD 7/ 9 inch Digital TFT Car Monitor with Sun Visor , 32GB SD Card



    12-24V 4 Split LCD 7/ 9 inch Digital TFT Car Monitor with Sun Visor , 32GB SD Card

    Packaging & Shipping



    1. Box can be color box, white box, OEM



    2. Package includes power line, bracket, remote controller, headrest frame, insert card and user manual.



    3. Goods will be shipped out within 2~7 days after the receipt of payment.



    Why choose us?

    1. 0.1% return rate , 99.5%qualified rate—strict QC system, complete QC process, including IQC,PQC,FQC, QAC,QC staff consist of engineers, technicians and production staff with 8+ years professional experience and fully trained to conduct QC

    2. 25% Profit is invested on R&D—20% profit is invested on R&D to meet the market demand, we focus on the market feedback and develop market-oriented new models. new items will be released each season by our 10-years-experience R&D technicians.

    3.Strictly follow the quality control system,five steps system:Incoming quality control→Semi-finished full-function test→Aging testFinal quality control→Out-going quality control.

    4. 24 hours a day to serve you—24 hours customer service to solve your problems at shortest time, your inquiry& request will be replied within 24hours.

    5.OEM&ODM professional service.
