4 Channel AHD basic GPS HDD MDVR , free player mobile dvr for vehicles
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW619HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Power Supply: | 8V-36V Wide Voltage | Talkback Device: | Support |
|---|---|---|---|
| Basic Function: | 4 Cameras Monitoring With 3G Real Time,GPS Tracking, WIFI Download | Software Support: | All Softwares, Like Client,server,playback Software |
| Applicable: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets | Resolution: | 720P/D1/CIF, Max 4CH 720P Recording |
| 3G GPS WIFI G-sensor: | Optional | Video Input: | 4channel/8channel |
| High Light: | vehicle camera dvr,hd car dvr |
||
Product Description
4 Channel AHD basic GPS HDD MDVR , free player mobile dvr for vehicles
VW619HD Series
4CH HDD MDVR with 4CH 720P basic recording
4CH HDD MDVR with 4CH 720P Basic Recording+ GPS Tracking
4CH HDD MDVR+ GPS tracking+ 3G Live Video
4CH HDD MDVR+ GPS tracking+ 3G LIve Video+ WIFI Download
1. Automobile video serveillance DVR supports 4 channel X 720P high definition resolution.
2. AHD 4 channel 720P 3G school bus car CCTV SD card MDVR with RFID and GPS is a practical 3G+GPS system for Veihcle mobile serveillance purpose which combines latest high technology such as Audio&Video Coding&Decoding, Mass HD&SD storage, Streaming media network, Audio&Video denoising, Mechanical Shockproof(Anti-vibration), UPS power protection, Flexible wide voltage range and etc.Application:for Road Transportation , Railway Transportation ; Water Transportation ; Air Transportation
3. Other ways with live surveillance purpose
Main Features
1) 4 Channel*720P or 1080P
2) H.264 compression format
3) 64GB SD Card
4) 2.5“ SATA 1TB Hard disk
5) GPS tracking
6) 3G remote control
7) Built-in WIFI for option
8) 6 alarm input, 2 alarm output
9) 2 way intercom
10) Remote oil&power cut-off
11) Mirror recording in SD card
12) Patent UPS continuously working to protect data upon sudden power-off
13) Customized GPS data format sending(optional)
14) Built-in Heater(optional)
15) Lockable, metal HDD handle, protect HDD efficiently
16) Watermark and Time/Date stamp in exported images
Main Specifications
| Item | Description | |
| OS | Linux | |
| Graphics Operation Interface | System parameters can be set through external display and remote controller | |
| Security Management | 2-level management for user password, administrator password, supporting encrypted transmission | |
| Video and Preview | Video Input, Output | 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
| OSD | Character superposition function, information superposition of time and date, device ID and GPS, etc. | |
| Video Compression Format | Compression coding. Applying Hisilicon hi-performance processor. | |
| Dual-Stream | Supported | |
| Preview Function | Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images | |
| Frame Rate | PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel | |
| Resolution | AHD 720P,D1, HD1 ,CIF 4channel | |
| Quality | Grade 1 to grade 5 for selection (descending) | |
| Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
|
| Audio | Audio Input, Output | 4-channel input, 1-channel output |
| Compression Format | G.726 coding | |
| Recording | Storage Medium | Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology; |
| File Format/ System | Special file system | |
| Video Strategies | Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | |
| Video Search | Searching by time, type, storage device and other conditions | |
| Video Playback | Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files | |
| Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time | ||
| Alarm | Alarm Input/ Output | 8-channel on/off signal alarm input, 1-channel on/off signal alarm output |
| Alarm Recording | Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min | |
| Storage Space Alarm | Supporting settings for alarm of storage space | |
| Function Alarm | GPS overspeed alarm, acceleration alarm, motion detection alarm | |
| Communication Ports | 485,RS232, RJ45 10M/100M self-adaptable network interface | |
| Wireless Transmission (Optional) | Supporting Wi-Fi; | |
| GPS (Optional) | Supporting external GPS | |
| PTZ Control | Supporting PTZ control realized by local; | |
| Parameter Configuration | Supporting parameter configuration functions for mobile DVR coding channel; | |
| G-Sensor | Embedded | |
| System Upgrading | Supporting SD card, hard drive upgrading and remote upgrading | |
| Power Supply and Power Consumption | Power Supply |
1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
| Input Voltage | DC:+8V ~ +36V | |
| Output Voltage | +12V@5*0.5A; | |
| Power-off Protection | With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure | |
| Power Consumption | <10W in normal operation; <0.5W in standby mode | |
| Operating Environment | Temperature | Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
| Humidity | 10% to 95% | |
| Dimensions | 160(W) x62(H) x200(D) mm. | |
| Weight |
Net: 2200g, Gross: 3500g
|
|

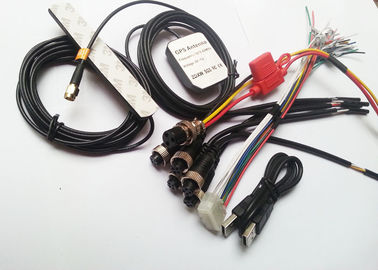

Accessories
