High definition Small Car Ball Camera Sony CCD 700TVL for bus surveillance DVR

High definition Small Car Ball Camera Sony CCD 700TVL for bus surveillance DVR

    • High definition Small Car Ball Camera Sony CCD 700TVL for bus surveillance DVR
    • High definition Small Car Ball Camera Sony CCD 700TVL for bus surveillance DVR
    • High definition Small Car Ball Camera Sony CCD 700TVL for bus surveillance DVR
    • High definition Small Car Ball Camera Sony CCD 700TVL for bus surveillance DVR
  • High definition Small Car Ball Camera Sony CCD 700TVL for bus surveillance DVR

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-C401

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiated
    Packaging Details: Neutral carton box package by default
    Delivery Time: 2-3 days for samples, 5-10 days for large orders
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 5,000pcs per month
    Contact Now
    Detailed Product Description
    Type: Car Ball Camera Resolution: 1080P/960P/720P/800TVL/700TVL/600TVL
    TV System: PAL/NTSC Power: DC12 Or 24V
    Lens Angle: 120 Degree Wide Angle Warranty: 12 Months
    Material: Metal IR Lights: NO

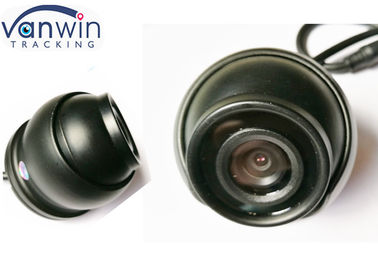

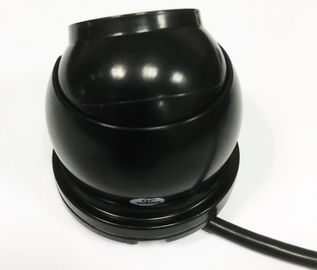

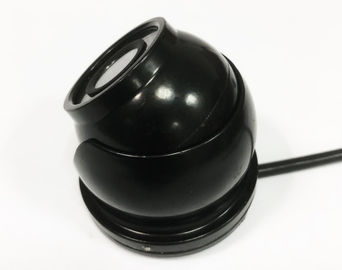

    High definition Small Car Ball Camera Sony CCD 700TVL for bus surveillance DVR

    It is very popluar model due its high definition resolution and also small size .Used for vehicle security monitoring system .There are many chips from 420TVL to 800TVL and AHD for optional.


    Image Sensor 1/3" 600TVL SONY CCD
    Video System PAL/NTSC
    Pixels PAL:752(H)×582(V)
    NTSC:768(H)×494(V)
    Horizontal Resolution 600 TVL
    Min Illumination 0.01LUX(0 Lux IR on)
    SNR ≥48dB
    Electronic Shutter 1/50-1/10000(S)
    Video Output 1.0V±0.5Vp-p 75Ω
    View Angle 140°
    Working Voltage DC12V±0.5V
    Consumption 100mA±10%
    Display image Mirror/normal optional
    MIC Optional
    Camera Len f:3.6mm


    High definition Small Car Ball Camera Sony CCD 700TVL for bus surveillance DVR

    High definition Small Car Ball Camera Sony CCD 700TVL for bus surveillance DVR
