DVR Accessories 6V - 36V voltage 24V to 12V DC Step Down Buck Power Converter
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-P10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 peice |
|---|---|
| Price: | $2 |
| Packaging Details: | plastic foam packing |
| Delivery Time: | 1-2 days for samples,15-30 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5000 pcs per day |
|
Detail Information |
|||
| Usage: | Vehicle Power Converter | Function: | Voltage Up Or Down |
|---|---|---|---|
| Input Voltage: | Less 39V Or Customized | Output Voltage: | Optional |
| Output Power: | Optional | Converting Efficiency: | Over 90% |
| Working Temperature: | -40 To 85 ℃ | Customization: | Yes,welcome |
| High Light: | monitor plug adapter,female male connector |
||
Product Description

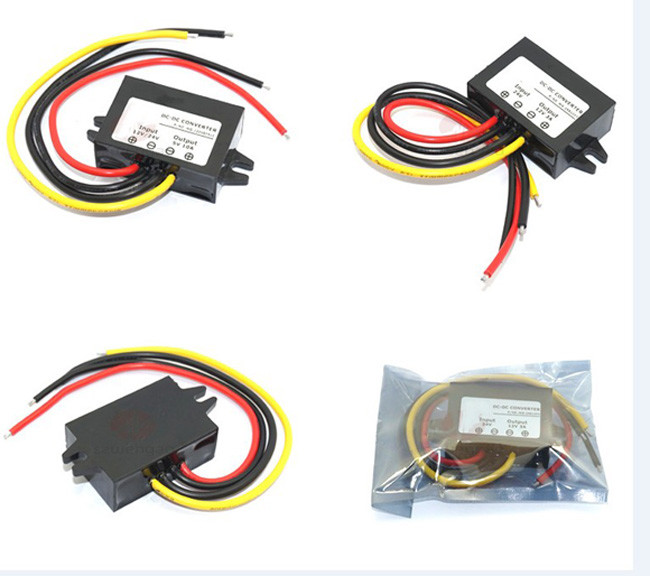

DVR Accessories 6V - 36V voltage 24V to 12V DC Step Down Buck Power Converter
Vehicle Power Adaptor Converter DVR Accessories 6V - 36V voltage adjustment
We can provide or customize all kinds of vehicle power converter up or down .The below specification is just for reference.
Features :
1. Industry grade converter, operating temperature: -40C ~ +80C.
2. Casting aluminum case, injected with epoxy resin. So it is waterproof & anti-shock protection.
3. NO Reverse polarity protection ,please carefully connect it .
4. Auto-recovery when device is back to normal operating.
5. Power conversion efficiency: 90%
6. Non-isolated
- Input voltage: DC24V
- Output parameter: DC12V, MAX 20A
Notice this module can't work on 20A for a long time.just was the peak current.
| Input Voltage | DC24V(15-35V) |
| Output Voltage | 12V |
| Output Electricity | 1.5A/3A/5A |
| Output Power Consumption | 18W/36W/60W |
| Convertion Efficiency | over 90% |
| Installation Length | 13-14CM |
| Working Temperature | -40 to 85 degree centigrade |
| Volume | 1.5A:58*40*22mm 3A5A:46*32*18mm |
| Protection Functions | Short circuit protection over temperature protection over-current protection |
