Public Bus Wifi Router 3G Mobile DVR GPS 4CH Hard Disk With Sim Card 8V - 36V

Public Bus Wifi Router 3G Mobile DVR GPS 4CH Hard Disk With Sim Card 8V - 36V

    • Public Bus Wifi Router 3G Mobile DVR GPS 4CH Hard Disk With Sim Card 8V - 36V
    • Public Bus Wifi Router 3G Mobile DVR GPS 4CH Hard Disk With Sim Card 8V - 36V
    • Public Bus Wifi Router 3G Mobile DVR GPS 4CH Hard Disk With Sim Card 8V - 36V
    • Public Bus Wifi Router 3G Mobile DVR GPS 4CH Hard Disk With Sim Card 8V - 36V
  • Public Bus Wifi Router 3G Mobile DVR GPS 4CH Hard Disk With Sim Card 8V - 36V

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW619HD-GSW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month; GPS 4CH Hard Disk Wifi Router Mobile DVR With sim card for Public Bus
    Contact Now
    Detailed Product Description
    Power Supply: 8V-36V Storage Capacity: HDD/SSD, Can Support 2TB HDD
    Functions: 4G 3G, GPS Tracking, Wi-Fi, G-sensor, 6CH Alarm Input, Lan Port Software Support: Client, Server, Playback Software
    External Hard Drive: Supported Size: 160(W) X62(H) X200(D) Mm
    Accessories: HDD, Cameras, Extension Cables, Monitor, Sound Pik-up Panic Button: Supported
    Talkback Device: Supported Oil Sensor: Optional

    GPS 4CH Hard Disk Wifi Router Mobile DVR With sim card for Public Bus

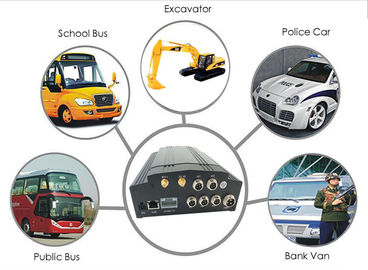

    3G Mobile DVR is mainly used for vehicle fleeting management with live video and monitoring ,and you can know where the vehicle is with GPS tracking especially necessary for school bus or goods truck or bank money carrying cars. Live monitoring what they are doing.Welcome you.



    1. 4 channel Bus security with 3G GPS WIFI for option
    2. Deter bullying, fighting behavior, Data protection
    3. Front ,side ,back 360 degress recording to monitor your vehicle
    4. 3G live and tracking with PC or Mobile Phone

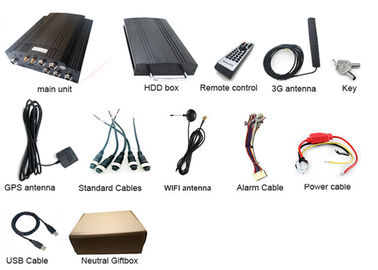

    How the MDVR works?

    1. One MDVR with 3G GPS WIFI G-sensor for Option
    2. 1~4 cameras with extension cables
    3. One monitor for the driver
    4. HDD 500GB/1TB/2TB
    5. Micphone, Talkback device, Panic button

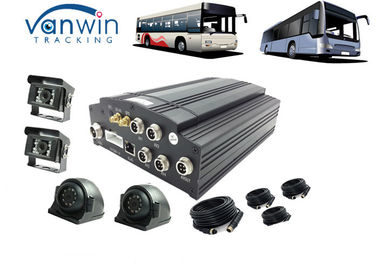

    The MDVR is a DVR Black Box Recorder system that records both the inside and outside of your vehicle to prove what really happened in any situation.

    The 4 camera device uses 2 regular cameras as well as 2 night/day cameras, up to 28 days
    of footage can be saved to its hard disk to ensure a moment is never missed.

    All video recorded is full D1/720P. The DVR device is a power managed and wide voltage +8V~+32VDC.

    It is designed for all commercial vehicles, especially those that carry passengers.




    Main Features

    • 4CH, Support 4 cameras
    •  H.264 compression format
    • 64GB SD Card
    • 2.5“ SATA 2TB Hard disk
    • GPS tracking
    • 3G remote control
    • Built-in WIFI for option
    • 6 alarm input, 1 alarm output
    • 2 way intercom
    • Remote oil&power cut-off
    • Mirror recording in SD card
    • Patent UPS continuously working to protect data upon sudden power-off
    • Customized GPS data format sending(optional)
    • Built-in Heater(optional)
    • Lockable, metal HDD handle, protect HDD efficiently
    • Watermark and Time/Date stamp in exported images

    Specification



    Item

    Description

    OS

    Linux

    Graphics Operation Interface

    System parameters can be set through external display and remote controller

    Security Management

    2-level management for user password, administrator password, supporting encrypted transmission

    Video and Preview

    Video Input, Output

    4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

    OSD

    Character superposition function, information superposition of time and date, device ID and GPS, etc.

    Video Compression Format

    Compression coding. Applying hisilicon hi-performance processor.

    Dual-Stream

    Supported

    Preview Function

    Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images

    Frame Rate

    PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

    Resolution

    CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most

    Quality

    Grade 1 to grade 5 for selection (descending)

    Bit Rate

    CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

    HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

    D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

    Audio

    Audio Input, Output

    4-channel input, 1-channel output

    Compression Format

    G.726 coding

    Recording

    Storage Medium

    Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology;

    File Format/ System

    ASF/FAT32

    Video Strategies

    Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

    Video Search

    Searching by time, type, storage device and other conditions

    Video Playback

    Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

    Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

    Alarm

    Alarm Input/ Output

    6-channel on/off signal alarm input, 1-channel on/off signal alarm output

    Alarm Recording

    Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

    Storage Space Alarm

    Supporting settings for alarm of storage space

    Function Alarm

    GPS overspeed alarm, acceleration alarm, motion detection alarm

    Communication Ports

    RS232, RJ45 10M/100M self-adaptable network interface

    Wireless Transmission (Optional)

    Supporting Wi-Fi;

    GPS (Optional)

    Supporting external GPS

    PTZ Control

    Supporting PTZ control realized by local;

    Parameter Configuration

    Supporting parameter configuration functions for mobile DVR coding channel;

    G-Sensor

    Embedded

    System Upgrading

    Supporting SD card, hard drive upgrading and remote upgrading

    Power Supply and Power Consumption

    Power Supply

    1. ACC on/off

    2. Hard drive lock on/off

    3. Delayed shutdown

    4. Timed on/off

    Input Voltage

    DC:+8V ~ +36V

    Output Voltage

    +12V@4*0.5A; +5V@0.5A

    Power-off Protection

    With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

    Power Consumption

    <10W in normal operation; <0.5W in standby mode

    Operating Environment

    Temperature

    Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

    Humidity

    10% to 95%

    Dimensions

    160(W) x62(H) x200(D) mm.

    Weight

    Net: 2200g, Gross: 3500g






    Public Bus Wifi Router 3G Mobile DVR GPS 4CH Hard Disk With Sim Card 8V - 36V



    Our Advantages


    1. Our dvr has the world class anti-vibration technology,widely used in military .It is very long lifetime  for over 10 years.
    2. We are professional manufacturer,who can offer you great price and technology support.
    3. We have a very warm and capable technical team,who can customize many projects for you.We have many examples .Please check our offical website.
    4. Great Service.



    FAQ



    1)Is the GPS polling configurable? If so where can this be done?



    Re:GPS polling is configurable. For the DVR local settings, we didn't make the interface to show such settings, because it is a kind of protection. If you need, we could also make a interface for such settings. By our current version, you could only set the GPS polling frequency by the server config( it means you have to set up your own server, then you could set the frequency by your own need)





    2)Is it possible to rename the alarm inputs? For example in burglary or SOS?



    Re:Yes, othe model above supports 6 alarm inputs, such 6 alarm signals are customize for you, it means you could set different alarm signal to replace the original ones.( like you could set door open or window broken as the inputs, this is no problem)



    3)Can you explain where we can see (in the client) when an alarm input is triggered? We tried it and saw a car blinking on the map, but there was no report visible. The alarm input was activated by a positive 12V (manual page 15 art. 2.3.6).

    Re: As for the alarm list, you have to set the signals firstly, please click the above “setting” menu, then find “alarm linkage”, then there are many options for the signals, you could tick which you need, and upload a MP3 sound as alert. Please try and check.





    4)Where can we configure the email notifications in case of an alarm?

    Re:In fact, only when you set up the server, then you could configure the email notification by our server

    software.
