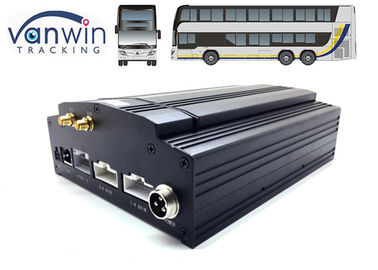

Vehicle MDVR D1 H.264 HDD 4G GPS 8channel dvr security system

    • Vehicle MDVR D1 H.264 HDD 4G GPS 8channel dvr security system
    • Vehicle MDVR D1 H.264 HDD 4G GPS 8channel dvr security system
    • Vehicle MDVR D1 H.264 HDD 4G GPS 8channel dvr security system
    • Vehicle MDVR D1 H.264 HDD 4G GPS 8channel dvr security system
    • Vehicle MDVR D1 H.264 HDD 4G GPS 8channel dvr security system
  • Vehicle MDVR D1 H.264 HDD 4G GPS 8channel dvr security system

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW610GSW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month; Vehicle MDVR D1 H.264 HDD 4G GPS 8channel dvr security system
    Contact Now
    Detailed Product Description
    Power Supply: 8V-36V Storage Capacity: HDD/SSD, Can Support 2TB
    Basic Function: 8 Cameras Monitoring With 3G Real Time,GPS Tracking,Wi-Fi Software Support: Client,Server,Playback Software
    Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Quality: The World Class Anti-vibration Technology

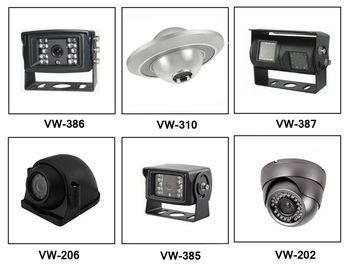

    System Upgrading: Supporting SD Card, Hard Drive Upgrading And Remote Upgrading Cameras: 1~8 Analog Cameras
    WIFI Download: Support APN: Can Customize

    Vehicle MDVR D1 H.264 HDD 4G GPS 8channel DVR security system

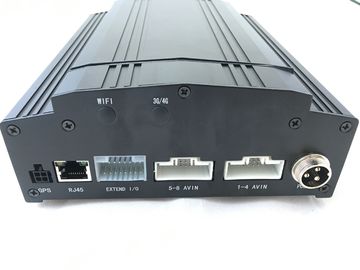

    The MDVR supports 8 channel FULL D1 video recording, 3G/4G wireless live video transmission through PC&phone remotely, with GPS tracking on google map, wifi auto downloading, with RJ45, RS232&485, I/O port interface for multiple outer device integration. Its storage (max 2TB) lasts more than 80 days recording.

    Vehicle MDVR D1 H.264 HDD 4G GPS 8channel dvr security system

    Specification



    Item

    Description

    OS

    Linux

    Graphics Operation Interface

    System parameters can be set through external display and remote controller

    Security Management

    2-level management for user password, administrator password, supporting encrypted transmission

    Video and Preview

    Video Input, Output

    8-channel video input, 1channel video output; 1.0Vp-p, 75Ω

    OSD

    Character superposition function, information superposition of time and date, device ID and GPS, etc.

    Video Compression Format

    Compression coding. Applying Hisilicon hi-performance processor.

    Dual-Stream

    Supported

    Preview Function

    Preview of 1-channle, 8-image stitching, supporting full screen triggered by event and switching of stitched images

    Frame Rate

    PAL: 200 frames/s, up to 25 frames/s per channel; NTSC: 240 frames/s, up to 30 frames/s per channel

    Resolution

    CIF, HD1 and D1 for selection, supporting 2 channels of D1  6 channels of CIF at the most

    Quality

    Grade 1 to grade 5 for selection (descending)

    Bit Rate

    CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

    HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

    D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

    Audio

    Audio Input, Output

    4-channel input, 1-channel output

    Compression Format

    G.726 coding

    Recording

    Storage Medium

    Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology;

    File Format/ System

    ASF/FAT32

    Video Strategies

    Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

    Video Search

    Searching by time, type, storage device and other conditions

    Video Playback

    Supporting playback on local device, supporting synchronous playback of up to 8 channels and analysis on vehicle information in the files

    Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

    Alarm

    Alarm Input/ Output

    6-channel on/off signal alarm input, 1-channel on/off signal alarm output

    Alarm Recording

    Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

    Storage Space Alarm

    Supporting settings for alarm of storage space

    Communication Ports

    RS232/485, RJ45 10M/100M self-adaptable network interface

    Wireless Transmission (Optional)

    Embedded Wi-Fi module;

    GPS (Optional)

    Supporting

    Remote Data Transmission Channel Selection

    SupportingWi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies;

    PTZ Control

    Supporting PTZ control realized by local;

    Parameter Configuration

    Supporting parameter configuration functions for mobile DVR coding channel;

    G-Sensor

    Embedded

    System Upgrading

    Supporting SD card, hard drive upgrading and remote upgrading

    Power Supply and Power Consumption

    Power Supply

    1. ACC on/off

    2. Hard drive lock on/off

    3. Delayed shutdown

    4. Timed on/off

    Input Voltage

    DC:+8V ~ +36V

    Output Voltage

    +12V@8*0.5A; +5V@0.5A

    Power-off Protection

    With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

    Power Consumption

    <10W in normal operation; <0.36W in standby mode

    Operating Environment

    Temperature

    Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

    Humidity

    10% to 95%

    Dimensions

    160(W) x62(H) x200(D) mm.

    Weight

    Net: 2200g, Gross: 3500g



    Main Features



    3) Supports max 2TB HDD and SD card;

    4) Motion Detect/ G-Sensor/ Alarm Record/ High Speed/ Low Speed Alarm;

    5) 6 I/O Alarm Input & 1 Alarm Output;

    6) UPS Technology (3~5s Power-off delay after power cut);

    7) Max. 4 Hours Power-off Delay after ACC-off;

    8) GPS Tracking

    9) 3G/ 4G Remote View on PC or Smartphone;

    10) Supports talkback function (2 Ways Audio);

    11) Geo-Fence/ Remote Engine Stopping/ Remote Oil Cut, etc;

    12) Welcome OEM ODM for VPN MDVR or 3G DVR with RFID , We Have More Examples for Customization.



    FAQ



    1. Q: Does the MDVR support Hard drive and SD card?

    A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card. The storage capacity can be from 32GB to 2TB.



    2.Q: Is it difficult to install MDVR into the vehicle?

    A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.

    And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.



    3. Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc, is it available?

    A: Definitely yes!

    The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.

    In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system, PTZ camera, and so on.



    4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?

    A: Yes, we have SDK ready and welcome your OEM customized order!



    5. Q: I ever bought MDVR from other supplier. But the anti-vibration is not strong. Now the MDVR works bad and video recording is not good. I am adfraid to buy again.

    A: This happens. Vehicle Mobile DVR has to stand the rough bumping situation in the vehicle. So it is vital and important for MDVR to have strong anti-vibration struction, design, materials, software and function.

    Not many factory can do this well.

    We Sodimax factory has realized this shockproof function and our MDVR definitely&stably stand rugged and fast bumping in transit.



    6. Q: How about the 3G setting, and the WIFI setting?

    A: The setting for MDVR is very important. Most functions need correct setting before use.

    The 3G setting depends on the Telecommunication company and rules in local country.

    Normally a simple call to your local telecommunication company can know the APN setting.

    WIFI setting is more easy. Just input the same data with Wireless router and server.



    7. Q: Does the MDVR come with accessroy, such as HDD, SD card, Microphone, Camera, Extension cable etc?

    A: We have all accessories ready. You can ask us to make the complete quote for one whole set.

    Normally the MDVR doesn't include any accessroy. Therefore it is advisable to inform us about your target

    accessory. All are can done right here. One-stop-serve purchasing.



    8. Q: Can I get a free sample to test before formal order?

    A: Yes, you can.

    We can provide free sample with 1 month test period.

    It will demand some deposit and the delivery(both send and resend) cost is supposed to be on your own side. If the deliver cost is not so high, we recommend this way.

    If not, then we do not recommend you do this. Do not forget the import tax as well.



    Installation



    Vehicle MDVR D1 H.264 HDD 4G GPS 8channel dvr security system

    Vehicle MDVR D1 H.264 HDD 4G GPS 8channel dvr security system
