IP69K Waterproof Truck Bus Car Rear View Monitor 7 Inch With 4 Split
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW718MQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD30-USD70 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Brightness: | 350-400cd/m2 | Video Input&display: | 4 Way Video Inputs, 4 Splits Display |
|---|---|---|---|
| Working Temperature: | -20℃ To 70℃ | Resolution: | 800*R.G.B*480 |
| Selling Point: | Waterproof IP69K(certified) | Power Supply: | Automobile Storage Battery (12-36V) ，12V Output |
| Color: | Black | Size: | 7 Inch(9inch, 10.1 Inch As Optional) |
| Format: | PAL,NTSC | Bracket: | Metal U Type Bracket, Detachable Sunshade |
| Product Name: | IP69K Waterproof Truck Bus Car Monitor 7 Inch Rear View Monitor With 4 Split | ||
| High Light: | 7'' rear view camera monitor,IP69K car rear view monitor,IP69K Waterproof rear view camera monitor |
||
Product Description
IP69K Waterproof Truck Bus Car Monitor 7 Inch Rear View Monitor with 4 split for Agricultural Construction forklift Vehi
SPECIFICATION
7 inch Car Waterproof LCD Quad View Monitor
Resolution: 800*R.G.B*480 ,Brightness:LED,350-400cd/m2
View angle:L/R 70°,UP:50°,down: 70° degree
4 ways video inputs
Full image/2 images/3images/4 images adjustable
4 ways Trig Trigger priority:V2>V1>V3>V4) :
Reference point and time control for reverse gear setting
with light sensor receiver,can adjust screen brightness automatically day & night
Power supply:DC 12V-36V input,12V output Operating
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Waterproof grade: IP69k
with shock resistance of:5.9G
Apearance color:Ferrous metal
standard:Metal U type bracket
RCA/ 4pin connector(Optional)
Dimension:188*127.2*34(79)mm

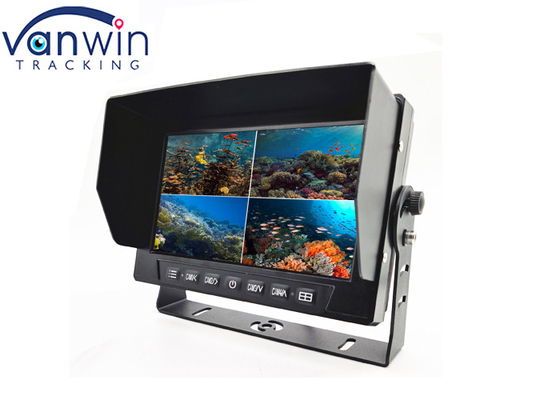

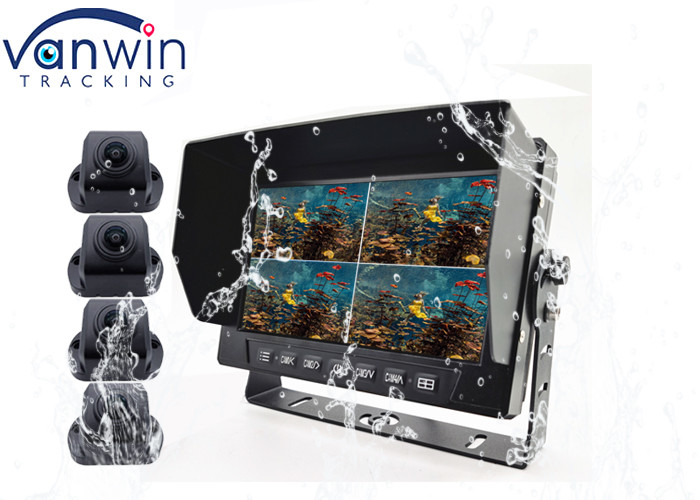

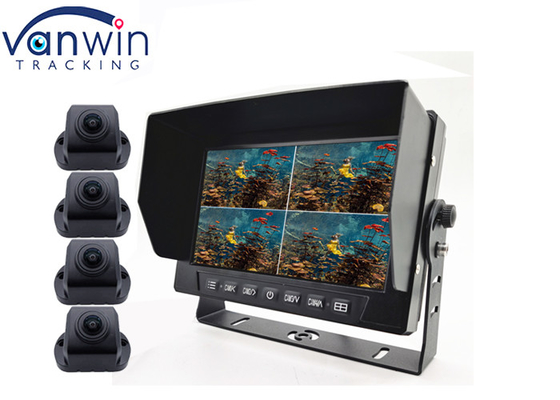

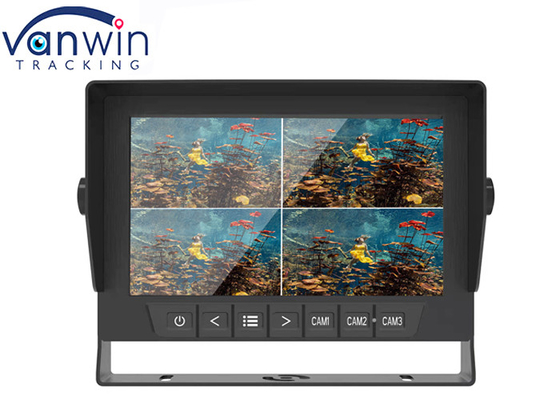

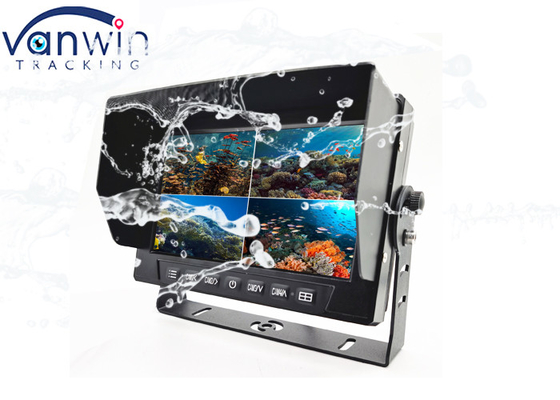

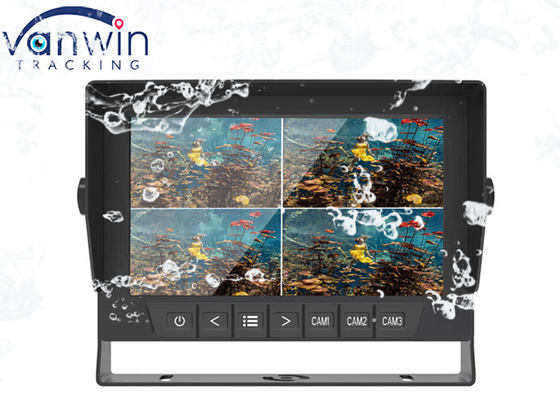

PRODUCT PICTURE
INSTALLATION
APPLICATION
