Vehicle Tracking System AHD 1080P Car Security Camera With 5-10M IR Distance And Waterproof IP68
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-59 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Power Supply: | DC12V±10% | Len Angle: | 170 Degrees |
|---|---|---|---|
| Working Temperature: | -20°C~+70°C | Lens: | 2.8mm |
| IR Distance: | 5~10M | Image Sensor: | 1/3" CMOS |
| Resolution: | 1920 (H)×1080(V) | White Balance: | Multi- Mode Selection |
| IR Lights: | 24pcs | Noise Reduction: | 3D |
| Dimension: | 72*50*58mm | Waterproof Level: | IP 68 |
| Highlight: | AHD 1080P Car Security Camera,IP68 Car Security Camera,5-10M IR Car Security Camera |
||
Product Description
AHD 1080P Car Security Camera Bus Surveillance Cameravehicle Tracking System Waterproof IP68
Car Security Camera Key Features:
- Material Quality:Constructed with premium 304 stainless steel, ensuring durability and resistance to corrosion.
- Protection Level:Equipped with an IP68 rating, which guarantees the product's ability to withstand dust, dirt, and water immersion, making it suitable for various harsh environments.
- Adaptive Lighting:Features infrared lighting that adjusts to different lighting conditions, ensuring clear visibility regardless of the environment.
- Heating Functionality:Includes an electric heating system designed to remove fog and frost, enhancing visibility in cold or humid conditions.
- Noise Reduction Technology: Incorporates advanced 2D and 3D noise reduction capabilities, which significantly improve the clarity and quality of the output images, providing a cleaner and more precise visual experience.
Car Security Camera Main Specifications
| Image Sensor | 1/3" CMOS |
| Horizontal Resolution | 600TV lines |
| TV System | PAL/NTSC |
| Effective Pixels |
PAL:1920(H) x 1080(V) NTSC: 1280(H) x 720(V) |
| Minimum Illumination | Color 0.001Lux;IR ON 0 Lux |
| S/N Ratio | ≥60dB(AGC OFF) |
| DAY&NIGHT MODE | COLOR MODE/AUTO MODE/B&W MODE |
| Auto Gain Control | AUTO/MANUAL,8 Value settings |
| Back Light Comp | Back light compensation, high light suppression |
| White Balance | Multi- mode selection |
| Noise Reduction | 3D |
| WDR | High/Middle/Low |
| Lens | 2.8MM |
| Electronic shutter | AUTO/1/50(1/60)-1(100,000Sec) |
| Video Out | 1.0V p-p 75, BNC connector |
| Control mode | OSD manual,support 8 languages |
| Synchronization System | Internal |
| Scanning System | 2:1 Interlaced |
| PRIVACY | 8 areas,freely set up position,size and 8 colors |
| Motion Detection | Grid tracking,4 areas,freely set up positions and size |
| IR LEDs | 18PCS |
| IR distance | 5~10M |
| Waterproof level | IP68 |
| Working temperature | -20°C~+70°C |
| Power supply | DC12V±10% |
| Power consumption | ≤3W |
| Dimension | 72*50*58mm |

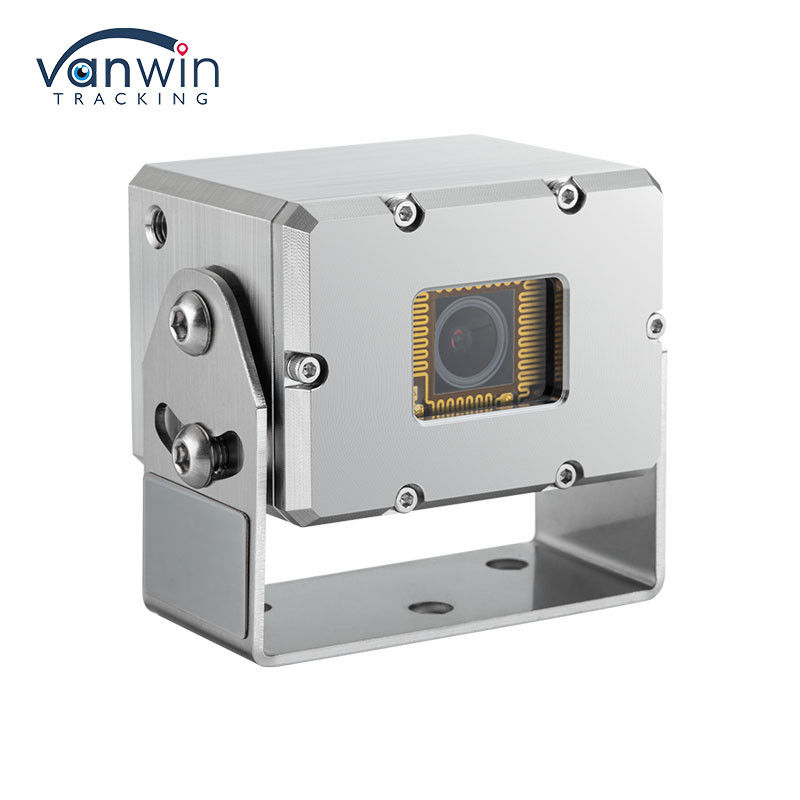

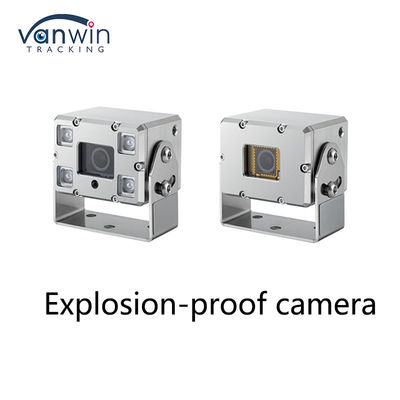

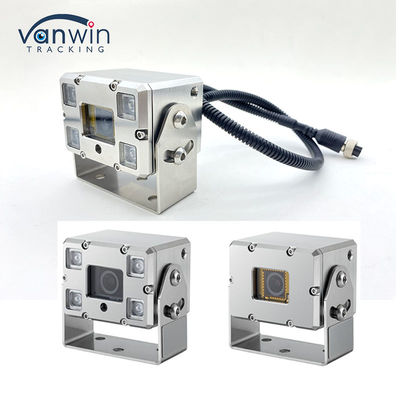

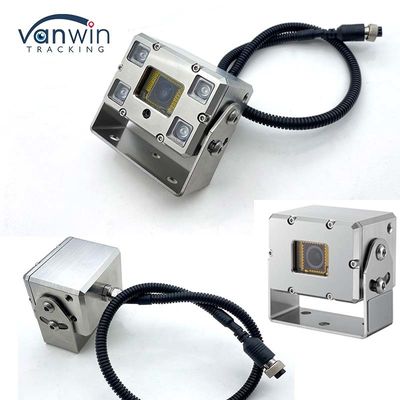

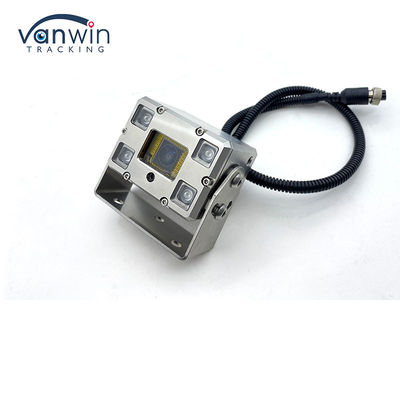

Car Security Camera Photoes:
Car Security Camera Wide Application
Why you choose us Vanwin Tracking?
Shenzhen Vanwin Tracking Co.,Ltd. is one high-tech industry specializing in R&D ,production,sales of vehicle video monitoring system, GPS monitoring kits, intellectual public transit dispatcher`s monitoring system ,video people counter and various customized solutions for 16 years.
1.Our Mission
Make drivers safe, make vehicles safe, make passengers safe, make thousands of families safe and benefit mankind with our best items&service.
2.Complete Solution
We provide all kinds of complete security solutions for vehicles such as
buses, coaches, trucks, taxis, agricultural machinery, boats, police cars, ambulances, etc.
Our items are car camera ,car monitor, AI car dash cam recorder for taxi etc and 4ch 8ch mobile dvr series. Welcome you to browse our website below .
3. Strict testing process
A. Camera aging test
B High and low temperature test
C. Waterproof vacuum test
D. Anti-vibration test
E. Salt spray test
F. Focusing technology test
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
