AHD/CVBS Multiple Video Mixed Input 4 Channel 7 Inch Split Display Car Monitor For Vehicle
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VM-M704QA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | 7 Inch AHD Mirror Car Monitor | Screen Ratio: | 7″high Digital New Panel ,16:9image |
|---|---|---|---|
| Cameras: | 4-8 CVBS AHD Cameras | Signal System: | PAL/NTSC |
| Video Format:: | H.264 | Storage: | SD Card |
| Cable Connector: | RCA / 4pin Connector (Optional) | Special Function: | Light Sensing Function, Can Automatically Adjust The Screen Brightness Day And Night, |
| Highlight: | 4 Channel Split Display Car Monitor,7 Inch Split Display Car Monitor,Vehicle Split Display Car Monitor |
||
Product Description
AHD/CVBS Multiple Video Mixed Input 4 Channel 7 Inch Split Display Car Monitor For Vehicle
This 7-inch AHD monitor is a high-performance device specifically designed for vehicles. It comes with a 4-channel feature and supports Full HD 1080P resolution, ensuring clear and detailed video surveillance for your vehicle. With its advanced AHD (Analog High Definition) technology, it provides a seamless and high-quality video transmission experience.
MDVR Split Display Monitor Paramenters
|
Model
|
VW-M704QA
|
|
Screen
|
7 inch 16:9
|
|
Resolution
|
1024*R.G.B*600
|
|
Back Light Luminance
|
LED 500-650cd/㎡
|
|
View angle
|
L/R: 85°
UP/Down: 85° |
|
Video Input
|
4-Channel AHD Video Input
Single/2/3/4 Quad Images Adjustable Supporting AHD 720P/960P/1080P Video Compatibility: CVBS /AHD |
|
Audio Input
|
Built-in speaker,1 way audio input(V2)
|
|
Reverse Trigger
|
4 Ways Trigger Priority:V2>V1>V3>V4
|
|
System
|
PAL & NTSC auto-switching
|
|
SD card
|
1 x SD High speed card (Max. 256G)
|
|
Video compression
|
H.264
|
|
OSD Menu
|
Video Recording is optional (Supporting 4CH video recording simultaneously and storage into four independent files simultaneously
Supporting quick photography, playback, pause, forward, backward and other operations. The video file can be locked for protection, and the locked file will not be overwritten or deleted. The memory card can be automatically overwritten or deleted manually |
|
Power supply:
|
Input 9V-36DC/output,12V
|
|
Protection Setting
|
High-low voltage protection & short circuit protection
|
|
Working temperature
|
-20℃ to 70℃
|
|
Storage temperature
|
-30℃ to 80℃
|
|
Housing:
|
Plastic & With Black Rubber Painted
|
|

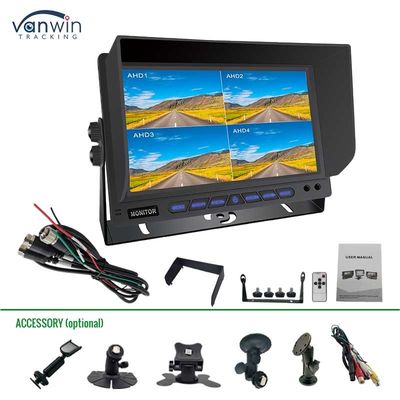

Accessories
|
Metal U type Bracket & Detachable Sunshade(Default)
Butterfly Bracket/Fan Bracket/ Suction Cup Bracket (optional) |
|
Cable Connector
|
RCA / 4pin connector (Optional)
|
|
Dimension
|
180*121*26(75)mm
|

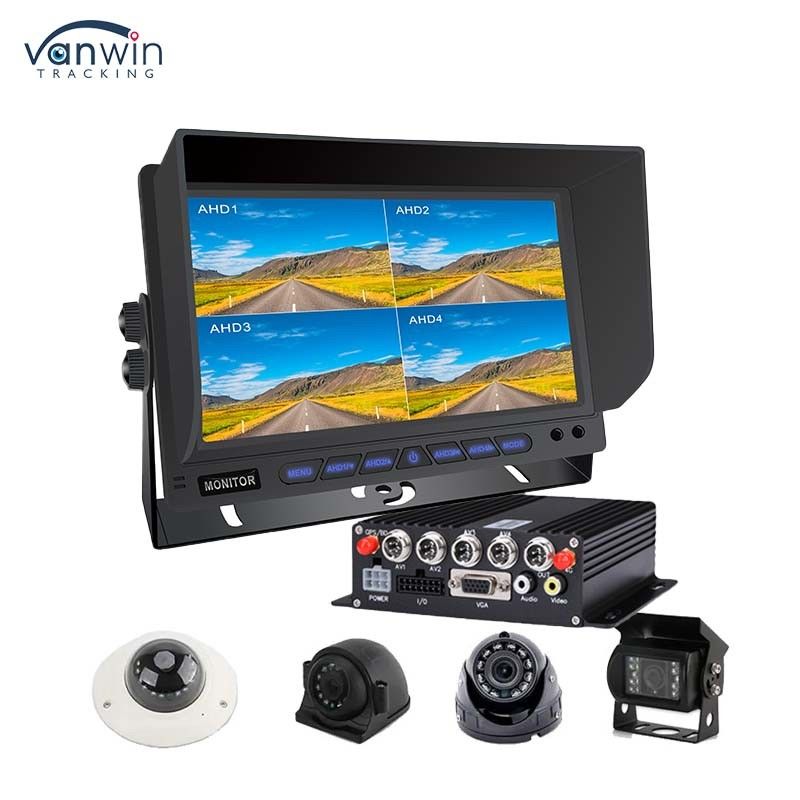

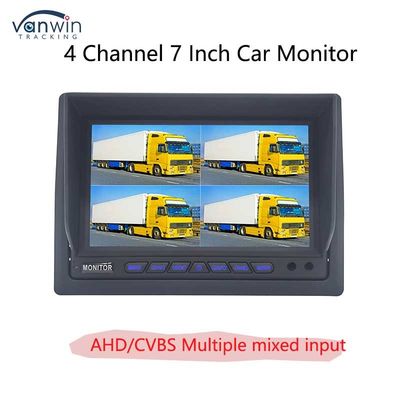

MDVR Split Display Monitor Photos
MDVR Monitor Applications:
Commercial Vehicle Monitoring
Public Transportation Systems
Logistics and Transportation
Security Surveillance
FAQ
Q1. What is the MDVR Split Display Monitor?
The MDVR Split Display Monitor is a high-resolution monitor designed for use with Mobile Digital Video Recording systems. It allows users to view multiple camera feeds simultaneously through its split-screen functionality.
Q2. How many video inputs does the monitor support?
The monitor supports up to four video inputs, enabling users to monitor different camera feeds at the same time.
Q3. What types of connections does the monitor have?
The monitor features multiple input interfaces, including HDMI, VGA, and AV, making it compatible with a wide range of devices.
Q4. Is the monitor suitable for outdoor use?
Yes, the monitor is built with rugged materials designed to withstand harsh environmental conditions, making it suitable for outdoor use.
Q5. Where can I purchase the MDVR Split Display Monitor?
The monitor can be purchased through various online retailers, electronics stores, or directly from manufacturers specializing in vehicle monitoring systems.
