Car Monitor 7 Inch VGA Output CCTV Auto-Compatible Security Surveillance Screen With Sun Hat With U Stand
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VM-M704QA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | 7 Inch AHD Mirror Car Monitor | Cameras: | 4-8 CVBS AHD Cameras |
|---|---|---|---|
| Screen Ratio: | 7″high Digital New Panel ,16:9image | Signal System: | PAL/NTSC (optional) |
| Video Format:: | H.264 | Storage: | SD Card (optional) |
| Voltage: | DC 12~36V | Wire Or Wireless: | Wire |
| Alarm Type: | Vehicle Backup Cameras,Front,Front Side,Rear Side | ||
| Highlight: | 7 Inch Car Monitor,VGA Output Car Monitor,Auto-Compatible Car Monitor |
||
Product Description
Car Monitor 7 Inch VGA Output CCTV Auto-Compatible Security Surveillance Screen With Sun Hat With U Stand
This 7-inch AHD monitor is a high-performance device specifically designed for vehicles. It comes with a 4-channel feature and supports Full HD 1080P resolution, ensuring clear and detailed video surveillance for your vehicle. With its advanced AHD (Analog High Definition) technology, it provides a seamless and high-quality video transmission experience.
- High Resolution: Offers a Full HD 1080P resolution, which enables you to clearly identify details in the monitored areas. Whether it's for security purposes or monitoring the surroundings while driving, the sharp and vivid image quality enhances visibility.
- 4 Channel Support: Allows you to connect up to 4 cameras simultaneously. This feature is extremely useful for comprehensive vehicle monitoring, covering multiple angles such as the front, rear, and sides of the vehicle. You can easily switch between different channels or display multiple channels on the screen at the same time with the split display function.
- Split Display Function: The monitor supports split display modes, including quad split (showing all 4 channels at once), dual split, and single channel display. This flexibility gives you the ability to customize the viewing experience according to your specific needs, whether you want to focus on a single camera or keep an eye on multiple areas simultaneously.
- MDVR (Mobile Digital Video Recorder) Integration: Built-in MDVR functionality enables continuous recording of the video from the connected cameras. The recorded footage can be stored on an external storage device (such as a microSD card, not included), allowing you to review the recordings later for security audits, accident investigations, or other purposes.
7 Inch Car Monitor Paramenters
|
Model
|
VW-M704QA
|
|
Screen
|
7 inch 16:9
|
|
Resolution
|
1024*R.G.B*600
|
|
Back Light Luminance
|
LED 500-650cd/㎡
|
|
View angle
|
L/R: 85°
UP/Down: 85° |
|
Video Input
|
4-Channel AHD Video Input
Single/2/3/4 Quad Images Adjustable Supporting AHD 720P/960P/1080P Video Compatibility: CVBS /AHD |
|
Audio Input
|
Built-in speaker,1 way audio input(V2)
|
|
Reverse Trigger
|
4 Ways Trigger Priority:V2>V1>V3>V4
|
|
System
|
PAL & NTSC auto-switching
|
|
SD card
|
1 x SD High speed card (Max. 256G)
|
|
Video compression
|
H.264
|
|
OSD Menu
|
Video Recording is optional (Supporting 4CH video recording simultaneously and storage into four independent files simultaneously
Supporting quick photography, playback, pause, forward, backward and other operations. The video file can be locked for protection, and the locked file will not be overwritten or deleted. The memory card can be automatically overwritten or deleted manually |
|
Power supply:
|
Input 9V-36DC/output,12V
|
|
Protection Setting
|
High-low voltage protection & short circuit protection
|
|
Working temperature
|
-20℃ to 70℃
|
|
Storage temperature
|
-30℃ to 80℃
|
|
Housing:
|
Plastic & With Black Rubber Painted
|
|
Accessories
|
Metal U type Bracket & Detachable Sunshade(Default)
Butterfly Bracket/Fan Bracket/ Suction Cup Bracket (optional) |
|
Cable Connector
|
RCA / 4pin connector (Optional)
|
|
Dimension
|
180*121*26(75)mm
|

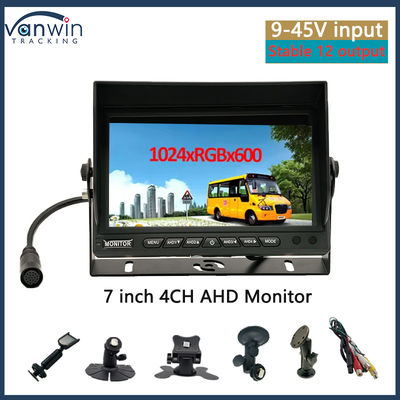

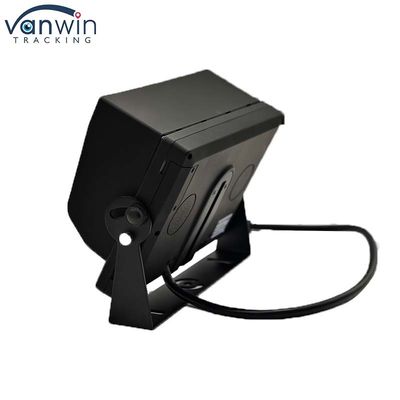

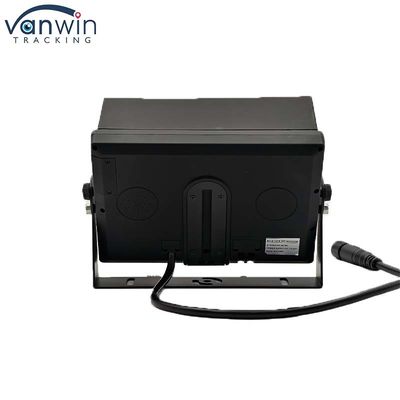

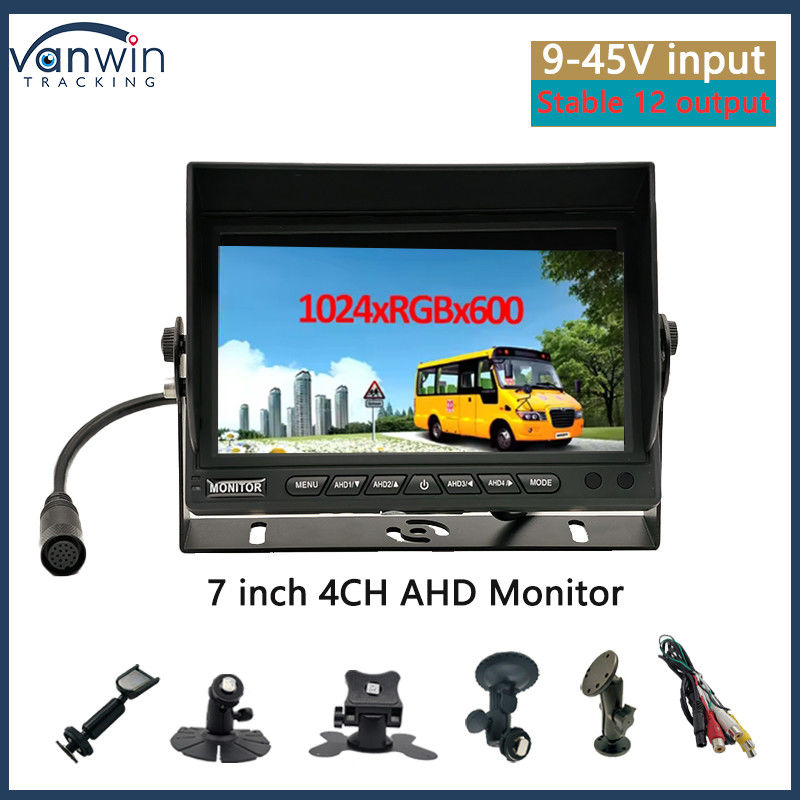

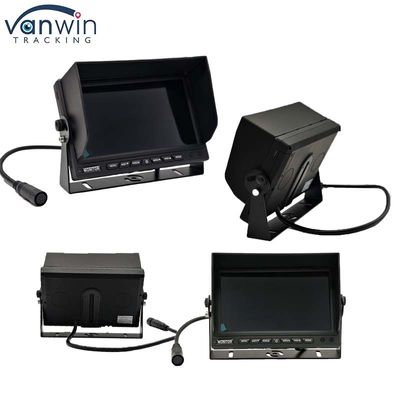

7 Inch Car Monitor Photos
- 1 x 7-inch AHD Monitor
- 1 x Power Cable
- 1 x Remote Control
- 1 x User Manual
7 Inch Car Monitor Application
