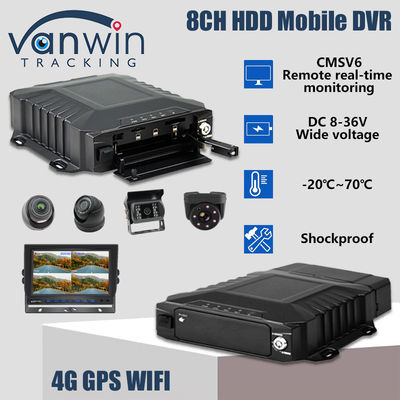

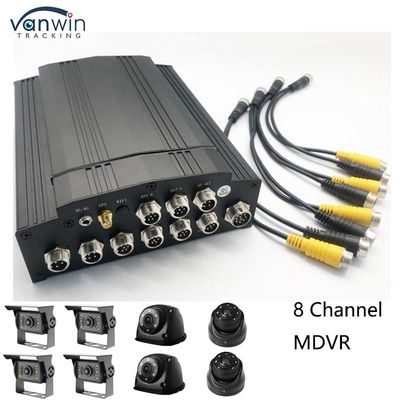

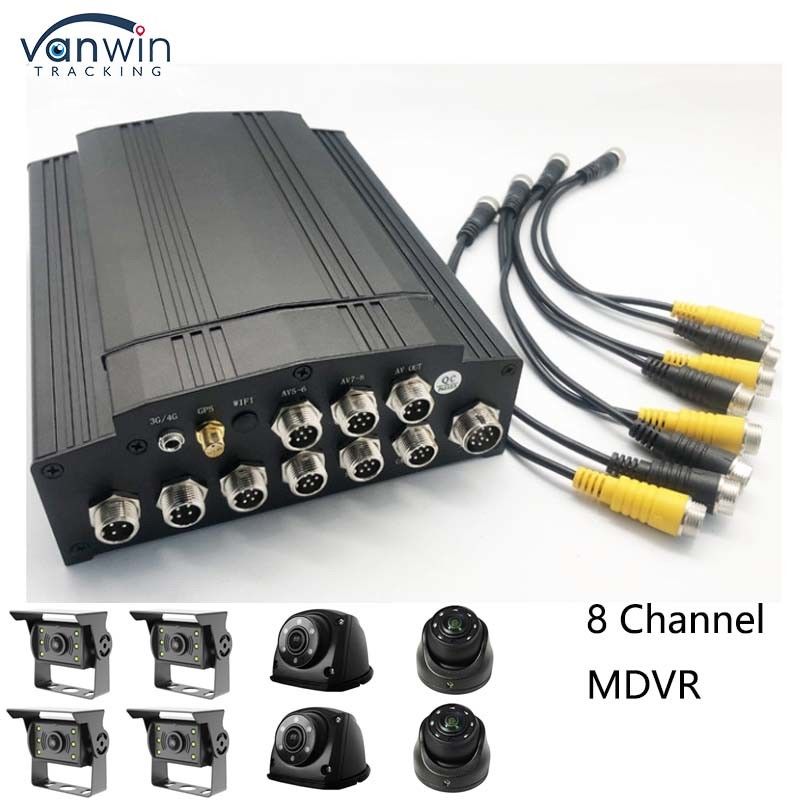

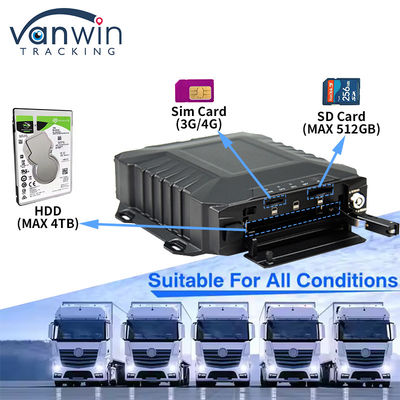

Heavy - Duty 8CH Mobile CCTV Recorder – 1080P AHD & SD Card Backup for Taxi / Bus / Truck
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9038B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Power Name: | 8 Channel Car Mobile DVR | Storage Card: | HDD(MAX 2TB)+SD Card(MAX 512G) |
|---|---|---|---|
| Vdieo Compression: | H264/H265 | Video Standard: | NTSC/PAL |
| Operation System: | Linux | Customized Logo: | Support |
| Modules: | 4G GPS WIFI Support | Mouse Operating: | Support |
| Highlight: | 1080P Mobile SD Card DVR,8 Channel Mobile SD Card DVR |
||
Product Description
Heavy-Duty 8CH Mobile CCTV Recorder – 1080P AHD & SD Card Backup for Taxi / Bus / Truck
Product Overview
This 8-channel DVR features a compact and rugged design, built to withstand the demanding environments of taxis, trucks, and buses. Its space-saving form factor allows for easy installation in tight vehicle spaces, while the durable construction ensures long-lasting performance even during vibrations and jolts on the road.
Key Features
- 8-Channel Recording: Supports up to 8 cameras simultaneously, allowing comprehensive coverage of the vehicle's surroundings.
- High-Definition Video Quality: Records in full HD (1080p) to ensure clear and detailed footage, crucial for identifying incidents and monitoring activities.
- Robust Design: Built to withstand harsh environments, the DVR is resistant to shocks, vibrations, and extreme temperatures, making it perfect for mobile use.
- Remote Access: Users can access live feeds and recorded footage remotely via a secure mobile app or web interface, facilitating real-time monitoring and management.
- Multiple Storage Options: Supports various storage solutions, including hard drives and SD cards, with ample capacity for extended recording periods.
- GPS Tracking: Integrated GPS functionality enables real-time location tracking of vehicles, enhancing fleet management and security.
- User-Friendly Interface: Intuitive menu navigation and easy setup process for quick installation and operation.
Technical Specifications
| Item | Description |
|---|---|
| Model | VW9038B |
| OS | Linux3.18 |
| Operating | Cell phone APP, PC client, Remote controller |
| Functions Summary | Preview, recording, playback, network transmission, positioning, AI analysis, multiple sensor data acquisition. |
| Video and Preview | Video Input, Output, Signal standard: AHD input:4ch 1080p/25fps, 4ch 720p/25fps, 4ch D1/25fps, IPC input:1ch default, externally expandable 1-4ch, Output: 1ch CVBS default, VGA optional(1024x768) Signal standard:1.0Vp-p, 75Ω, NTSC/PAL optional |
| OSD | Character superposition function, information superposition of time and date, device ID and GPS, alarm, etc. |
| Video Compression Format | Compression coding. Applying H264/H.265 hi-performance processor. |
| Image quality | Code stream, frame rate optional |
| Preview | 1/4/6/8/9 channel preview |
| Resolution | AHD: 1080P:25fps/1M/2M/4M/6M 720P: 25fps/1M/2M/4M/6M D1:25fps/512K/1M/2M IPC: 1080P: 30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M |
| Audio | Audio Input, Output: 4ch analog audio input, 1ch mic input; 2ch audio output. 2.0Vp-p, 4.7kΩ |
| Compression Format | G.711A, G.726 |
| Recording | Storage Medium: Supporting one 2.5" SATA hard drive and one SD card |
| Video Strategies | Recording at start up by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording |
| Alarm pre-recording | 0-60min |
| Alarm recording delay | 0-30min |
| Playback channel | Support local 1/4/6/8 channel playback |
| Browse mode | Time, channel, event. |
| Communication Ports | Position: GPS/BD: Positioning, speed detection, time synchronization |
| Power Supply and Power Consumption | Power Supply: 1ACC on/off Input Voltage: DC:+8V ~ +36V Output Voltage: +12V@1A; +5V@1A Power Consumption: Max 25W consumption, about 0W in standby mode |
| Operating Environment | Temperature: preheating: -20℃ ~ +70℃ Humidity: 8% to 90% |
| Dimensions | 324.6x238x116 mm |
| Weight | Net: 2KG |
Product Images
Applications
- Public transportation
- Fleet management
- Emergency vehicles
- Construction vehicles
- Outdoor surveillance
