4 Channel AI MDVR with GPS Vehicle Tracker Blind Spot Detection Vehicle Mounted Hard Disk Recorder
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-9304AGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for bulk orders |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 50,000pcs per month |
|
Detail Information |
|||
| Type: | AI MDVR | System: | PAL / NTSC |
|---|---|---|---|
| Sensor: | Hisilicon | Function: | ADAS+DMS+BSD |
| Material: | Metal | Connector: | RCA / 4PIN |
| Temperature: | -20 ~ 70 ℃ | Application: | Automotive Universal Car Models |
Product Description
4 Channel AI MDVR with GPS Vehicle Tracker Blind Spot Detection
Vehicle Mounted Hard Disk Recorder
Advanced AI video recorders can be equipped with the following functions
Advanced Driver Assistance Systems (ADAS): The forward-looking camera detects the vehicle/pedestrian in front of it, calculates the collision risk, and sends an audible and visual alarm 1.5-2 seconds in advance to reduce the probability of rear-end collision. Identify lane deviation behavior and remind the driver to correct the direction, especially for long-distance driving fatigue scenarios.
Blind spot monitoring (BSD): Detect blind spot vehicles in the rear side by radar or camera, and reduce scratch accidents by rearview mirror indicator or buzzer when changing lanes (measured can reduce the lane change accident rate by 15%).
Driver Behavior Management (DMS): Based on facial recognition technology, it can detect eye closing time, yawn frequency, head posture, etc., and judge tired driving (accuracy rate > 90%); They also monitor distracting behaviors such as smoking and talking on the phone.
4 Channel AI MDVR Specification
|
Audio and Video Inputs
|
video input
|
AHD:4ch 1080/25fps
IPC:Scalable 1-4ch |
|
audio input
|
4ch audio iuput
|
|
|
Audio and Video outputs
|
video output
|
Default 1-way CVBS output (VGA output optional)
|
|
speech output
|
1ch audio output
|
|
|
Audio and video parameter coding
|
video coding
|
H.264 Main Profile/H.265
|
|
· Resolution
|
1080P/720P/D1 optional
|
|
|
audio coding
|
Default G.726,G.711A optional
|
|
|
storage space
|
HDD
|
1 2.5-inch optional: SSD/HDD hard disk
|
|
SD
|
Support 1 SD card
|
|
|
wireless network
|
4G
|
Supports 1 SIM card, optional: all major communication modules in the world
|
|
WIFI
|
2.4/5.8G optional
|
|
|
locate mode
|
BD/GPS
|
Support for mixed positioning, speed detection, time synchronization
|
|
interface
|
USB
|
USB2.0 interface, support export data, external engineering treasure
|
|
serial port
|
Support 1 RS232, 1 RS485, can be connected with external sensor
|
|
|
I/O
|
4 level inputs, 2 analog inputs, 2 alarm outputs
|
|
|
network interface
|
Support external IPC, support hybrid NVR function
|
|
|
Intercom
|
1 special intercom handheld mark interface
|
|
|
work environment
|
operating temperature
|
-20〜+70℃
|
|
operating humidity
|
-8%〜90%(No condensation)
|
|
|
Other
|
operator schema
|
remote control,APP,WEB
|
|
· Gravity sensor
|
Built-in G-Sensor
|
|
|
Configurable AI algorithms
|
Face recognition,eople Counting
|

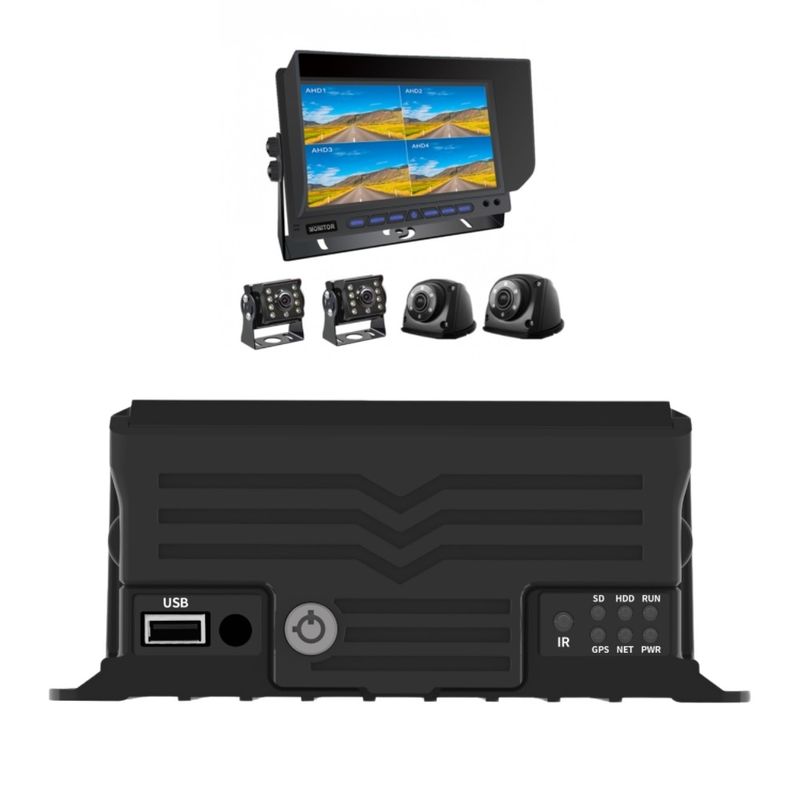

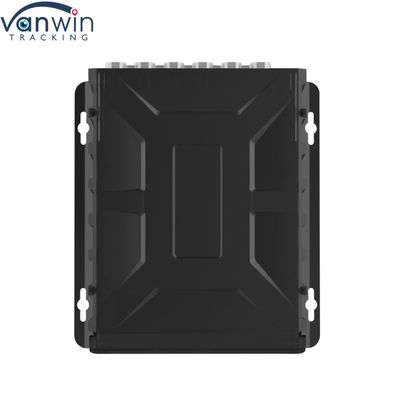

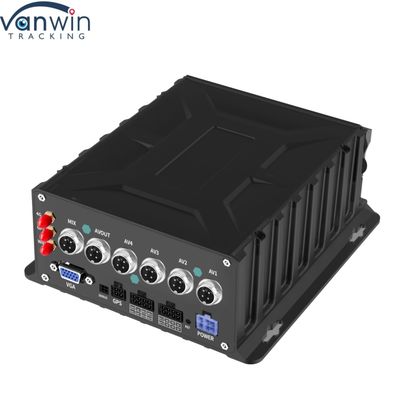

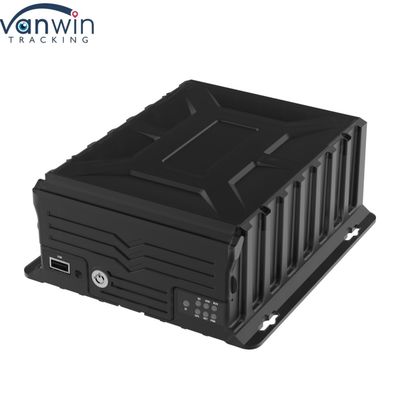

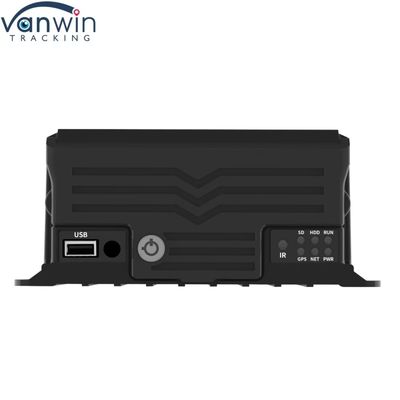

4 Channel AI MDVR Product Pictures
Why choose us?
We are a one-stop provider of vehicle-mounted monitoring systems dedicated to addressing vehicle safety, with fifteen years of professional experience. Our products comprehensively cover vehicle recorders, monitors, vehicle cameras, dash cams, and various expansion devices like fuel sensors, temperature sensors, fireproof boxes, alarms, tire pressure sensors and so on. We have provided customized solutions for hundreds of different customers in various application scenarios around the world, earning unanimous praise from our clients. We always uphold a sincere, kind, and enthusiastic service attitude, considering all aspects for our customers and bringing them value far beyond the products themselves.
FAQ
Q1. What is the nature of the company?
A1: We have our own factory and possess the capacity for independent research and development as well as production.
Q2. How to place an order?
A2: Process: Inquiry → Contract confirmation → Payment → Shipment. Supports T/T, Western Union, and Alibaba guarantee transactions.
Q3. Price discount?
A3: Large quantities are negotiable. Long-term cooperation enjoys additional discounts.
Q4. How to ensure quality? A4: Full-process quality inspection, 12-month warranty + lifetime technical support.
Q5. Technical support?
A5: Both pre-sale and after-sale services are provided. We will respond to any issues within 48 hours.
Q6. Delivery time?
A6: 1-3 days for samples and 7-15 days for bulk goods (express service available).
Q7. Logistics services?
A7: We can act as an agent for transportation and support EXW/FOB/CIF terms.
Q8. Packaging standards?
A8: Shockproof carton, customizable LOGO or special protection available.
Q9. Quality inspection process?
A9: 100% pre-factory inspection.
Q10. Long-term cooperation?
A10: Quality first, transparent pricing, and giving priority to meeting customized demands.
Want to Know more details about this product
