Vehicle Speed Limiter Built-in GPS Tracker With Dual Speed limiting
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin |
| Certification: | CE ROHS |
| Model Number: | DSL003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | USD20~USD40 |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1,000pcs per month |
|
Detail Information |
|||
| Material: | Engineering Plastic | Product Name: | Vehicle Speed Limiter Built-in GPS Tracker With Dual Speed Limiting |
|---|---|---|---|
| Applicable To Market: | Oman Etc Countries Who Need Dual Speed Limit | Feature: | Terrain Detect With Sensor, Switch To Secondary Speed |
| Function: | Speed Limit For Different Road Types, Record Speed Data Of Latest 72 Hours | Advantage: | Tamperproof |
Product Description

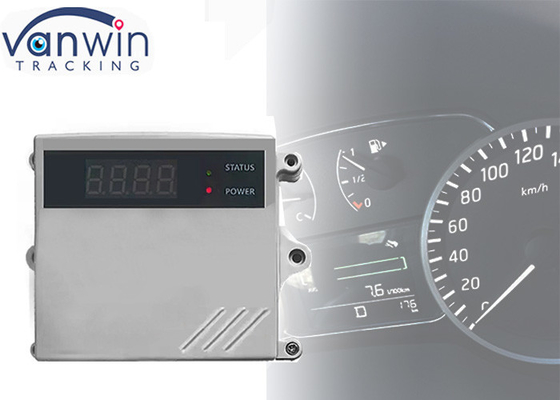

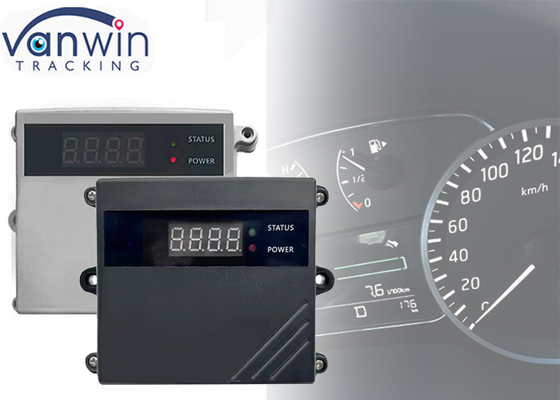

Vehicle Speed Limiter Built-in GPS Tracker With Dual Speed limiting
1. Basic Introduction
The Terrain-Based Dual Speed Limiter regulates speed based on terrain at two different speeds. It switches over to secondary speed by detecting the vibration of the vehicle. These two preset speeds can be set individually. A 6-axis vibration- sensor is used to detect the terrain type. It is also a driving recorder and can record 72 hours over speeding data. The limiting speed can be adjusted from 0 km to 120 km by Administrator.
For example:

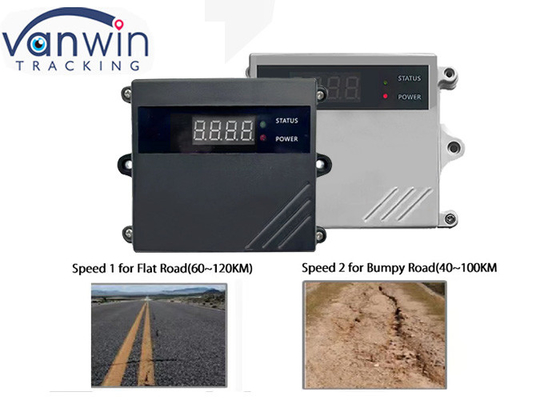

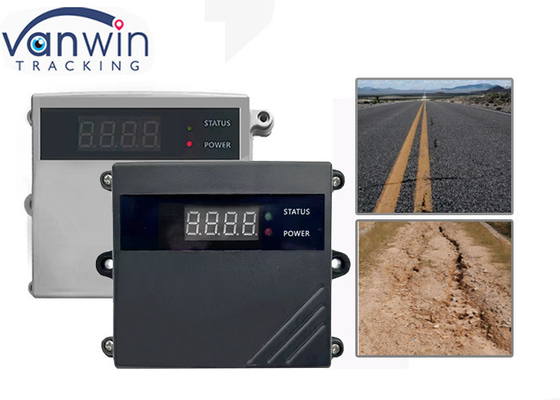

Speed1 for flat road [60~120KM]
Speed2 for bad t road [40~100KM]
2. Product Parameters:
Rang of speed limiting: 0-120km/h
Speed controlling band: ±3km/h (or±5%)
Anti-vibration character: 20~50Hz
Rated power dissipation: 2w
Working Voltage DC: 6.8~60V
Working Temperature:-40~85°C
Humidity: 10% to 90%
3. Product Features:

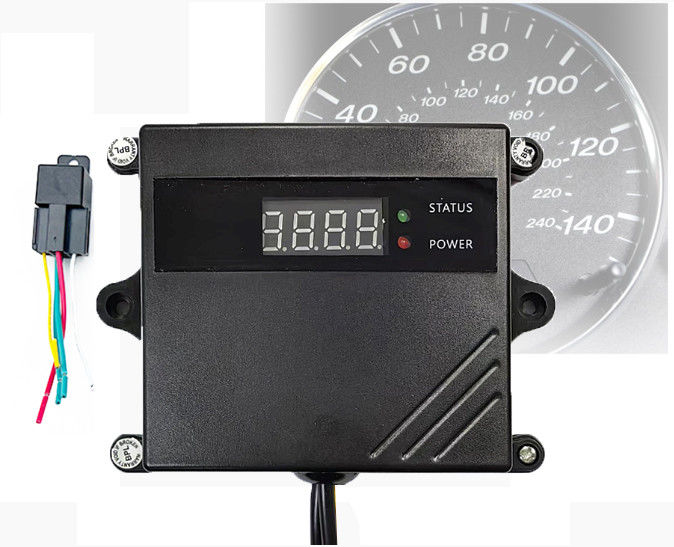

1) Speed Limiter with LCD display to display speed, with plastic housing,anti drop and anti smashing.
2) Without GPS, it will get the current driving speed from the vehicle Speed Signal Wire only.
3)When vehicle speed signal wire is disconnected, the vehicle’s speed will be limited to 40KM/H by default( The built-in GPS will detect the speed and do the limit)
4)3D acceleration sensor to detect the road conditions by shaking level.
5)Rang of speed limiting:
Speed1 for flat road 80KMH
Speed2 for rough road 100KMH
6) Easy calibration of the speed
7) Limiting the speed without affecting the functionality of the vehicle
8) Buzzer Warning for over speeding (Continuous sound)
9) Vibration Resistance
10) An overload protection prevent the circuit board from being damaged
11) Warning sound (Intermittent beeping) at 95% of the speed limit
4.Device Panel Introduction
The device has 3 working modes, working mode, setting mode, sleeping mode , No speed and no shake , it will enter sleep mode , close screen and Status light , only power LED light is on, as blow
For working mode and setting mode , There are 4 parts on the panel while device is in working mode or setting mode
| Index | Working mode | Setting Mode |
| ① |
Shaking Level (0~4) |
Function number (1~6) |
| ② | Speed of vehicle |
Details of parameters
note: (1km=637 *n, n is different with different brand vehicle, n=2,4,6,8,10,12,14,16)
|
| ③ |
Indicator of working status
|
|
| ④ |
Power indicator
|

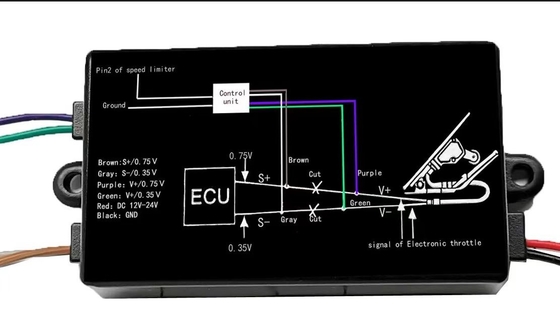

4 Installation
