5-inch IPS Monitor Wireless Security Camera System with Dual-Band 2.4/5.8G and Blind Spot Detection
Product Details:
| Place of Origin: | Shenzhen,Guandong |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW506W |
| Document: | VW-MW708.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | 10 PCS PER CTN; G.W.: 10.41 KGS; SIZE: 54.7*36*21.6 CM |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T,Western Union,Paypal; |
| Supply Ability: | 5000 pcs per month; Wireless rearview car 7 inch monitor truck wireless camera kit |
|
Detail Information |
|||
| Power Supply: | 12-24V | Screen Size: | 5 Inch |
|---|---|---|---|
| Resolution: | 800*R.G.B*480 | Placement: | Dashboard |
| Application: | Van, Trailer, Truck | TV System: | PAL&NTSC Automatically |
| Video Input: | 1 Way 2.4G Wireless Video Signal Input,support 720P@25/30 | Connector: | 4PIN/RCA/BNC |
| Brightness: | LED，500cd/㎡ | Wireless Signal: | 2.4G In Open Area:200M |
| Highlight: | 7 inch IPS wireless security camera system,dual-band wireless camera system with monitor,4 camera wireless security system with IPS |
||
Product Description

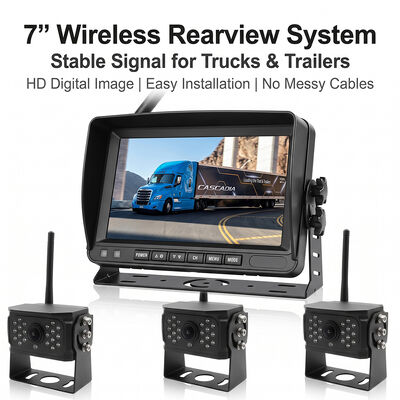

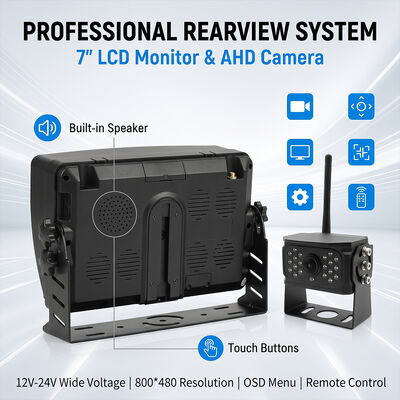

7" IPS Monitor Wireless Security Camera System with 4PCS Cameras Dual-Band 2.4/5.8G
This advanced wireless security camera system features a 7" IPS monitor and includes 4 cameras with dual-band 2.4/5.8G connectivity for reliable performance.
Key Features

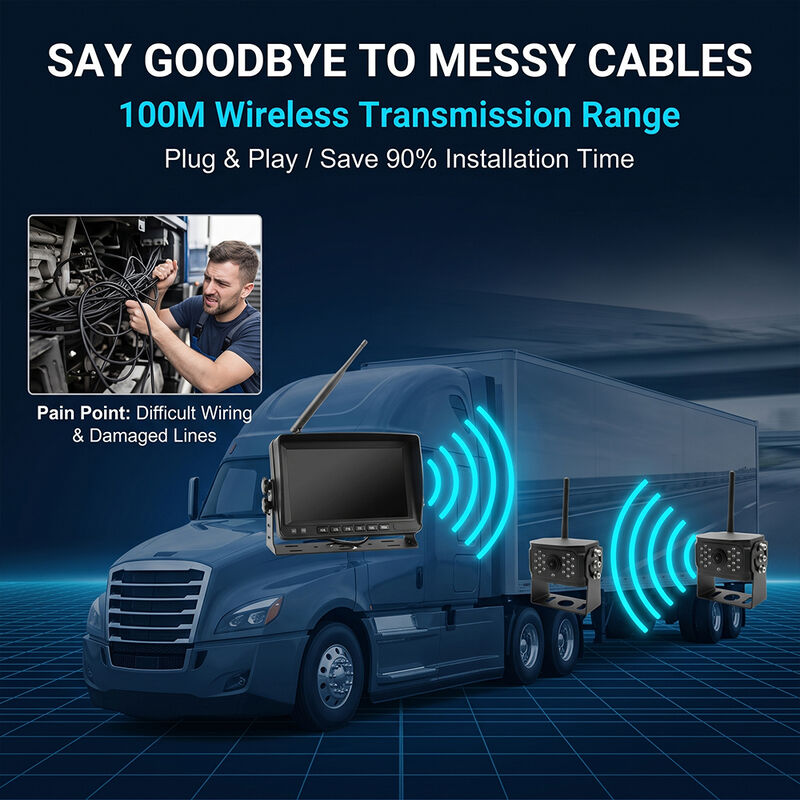

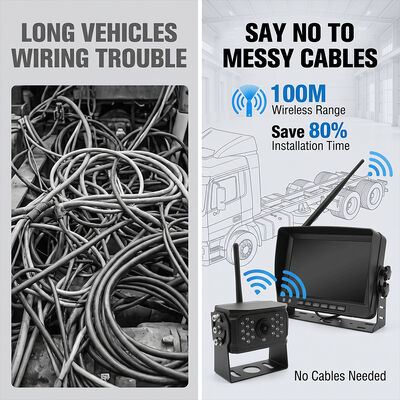

- Wireless transmission eliminates wiring hassles with strong signal and long-distance coverage
- High-resolution TFT LCD display with wide-angle view for clear, distortion-free images
- Dual wireless camera input supports simultaneous connection of 2 cameras for multi-scenario monitoring
- Intelligent BSD (Blind Spot Detection) system accurately identifies pedestrians and vehicles
- Portable design with magnetic base for tool-free installation and multi-angle fixation
- Excellent battery performance for extended operation
Technical Specifications
| Display Type | 5-inch AHD High Definition Wireless Rearview System (Digital Wireless) |
| Aspect Ratio | 16:9 |
| Resolution | 800*RGB*480 |
| Brightness | LED, 500cd/㎡ |
| View Angle | L/R: 70°, UP: 50°, DOWN: 70° |
| Wireless Input | 1 way 2.4G wireless video signal input, supports 720P@25/30 |
| Wireless Range | 200M in open area |
| Image Sensor | 1/3" 1.0MP CMOS Sensor 2.8MM |
| Effective Pixel | NTSC/PAL 1280(H)*720(V) 100W |
| Minimum Illumination | 0.5 lux |
| Night Vision | CDS night version change: Automatically switches to black and white image at night |
| Image Angle | 120° |
| Power Supply | 12V~24V |
| Waterproof Rating | IP67 |
| Construction | Aluminum alloy shell, outside hanging design |
| Environmental Protection | Waterproof, shockproof, infrared night vision, resistant to high temperature and humidity |
| Display Options | 1/2 images display adjustable (optional) |
Product Images
Applications
This system is widely used in trucks, vans, agricultural vehicles, wagons, lorries, and various other commercial and industrial vehicles for comprehensive safety monitoring and fleet management.
About Our Company
We are a professional manufacturer of 4ch/8ch mobile DVR systems with monitors and cameras. Our products are specifically designed for vehicle fleet management and safety monitoring. The complete system is essential for buses, trucks, school buses, trailers, bank money carrying cars, and similar applications. Our systems feature 3G remote viewing for real-time monitoring, allowing you to see what drivers and passengers are doing, along with GPS tracking capabilities.
We welcome you to test our quality and experience the reliability of our security solutions.
We welcome you to test our quality and experience the reliability of our security solutions.
