RS232 Binocular Lens 3G MDVR Camera Passenger Counter For Bus

RS232 Binocular Lens 3G MDVR Camera Passenger Counter For Bus
RS232 Binocular Lens 3G MDVR Camera Passenger Counter For Bus RS232 Binocular Lens 3G MDVR Camera Passenger Counter For Bus RS232 Binocular Lens 3G MDVR Camera Passenger Counter For Bus RS232 Binocular Lens 3G MDVR Camera Passenger Counter For Bus

Large Image :  RS232 Binocular Lens 3G MDVR Camera Passenger Counter For Bus

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW708HD-C
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month;

RS232 Binocular Lens 3G MDVR Camera Passenger Counter For Bus

Description
Power Supply: 8V-36V DC Voltage Type: Passenger Counter For Bus
USB Port: Standard 2.0 RS232/RS485: Supported
Sensor Type: Video Counting, 98% Accuracy Operation Interface: OSD With Mouse And Remote Control
Camera: Binocular Cameras&Monitoring Cameras AV Out: 4CH CCTV Cameras Inputs+4 Channel Counting Cameras Inputs
Installation: Vehicle Door,mounted On Ceiling Protocol: Support RS232/485 And 3G Communication Serial
Data Transmission: 3G, 4G, GPS, WIFI ,GPRS, RS232/485, HDD Storage Application: City Bus, School Bus And Other Transport Vehicle Ect.
High Light:

3G MDVR Camera Passenger Counter

,

Binocular Lens Camera Passenger Counter

,

RS232 Automatic Passenger Counter

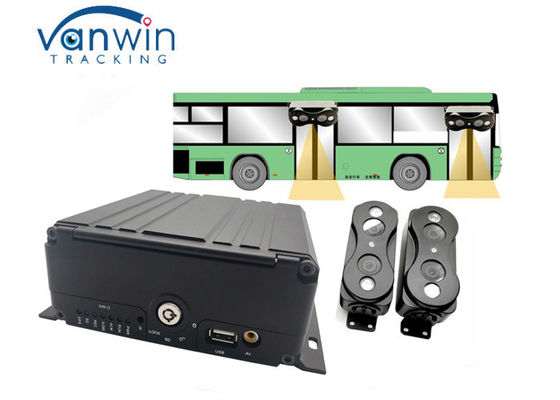

2 Doors Binocular Lens 3G MDVR camera System+Passenger Counter for Bus



Bus Automatic Passenger Counter can realize its counting function by the cameras installed on the front and back doors.

The positioning information and passenger volume for each bus line or each station will be synchronously send to the network platform,which offers great support for bus line optimization, bus dispatch, as well as real-time passenger volume dynamic analysis and forecast.

What’s more, Bus Passenger Volume Counting System can be integrated with electronical stations and mobile APPs so as to easily check the information for citizens'



Product Name
Passenger Counter
Connectors
4Pin Aviation
Voltage
DC12 Voltage input; ≤1W
Function
Statistics
Accuracy
95%
Humidity
10% ~ 95%
Temperature
-20℃ ~ +70℃
Shutter
1/50-1/80000(s); 1/60-1/80000(s)
Image output
Synchronous sampling output
Lens
2.8mm
White balance
Automatic
Radiating
Passive structure radiating
Software Platform
CMS
Package
Carton



RS232 Binocular Lens 3G MDVR Camera Passenger Counter For Bus 0



This Passenger Counter can be used for buses, subways, trains, ships, shopping malls, and building passages, etc.

Through capture video images and analyze the height, shape and direction of allobjects passing through the image,

so as to accurately judge the number of people and direction of entry and exit, and generate an entry and exit record.



The binocular camera with artificial human eye engineering design will collect real-time passenger movement information in the door range and rapidly computes the 3D data of the target passengers through the image processor.

The 3D data includes the height and shoulder width of the target passengers and so on. Accuracy up to 95%.



RS232 Binocular Lens 3G MDVR Camera Passenger Counter For Bus 1


RS232 Binocular Lens 3G MDVR Camera Passenger Counter For Bus 2



FAQ



1)What purpose does the sensor serve?

Re:The sensor is designed to count the number of bus passengers getting on or off.
All passengers are counted regardless of their payment method (cash, pass, welfare ticket, or discount ticket).

2)How is it used?
Re:The sensor can be used to get information on the usage status and crowding of bus passengers.
Take advantage of the sensor's abilities to create an optimum time table by knowing the number of passengers getting on or off at a particular stop, at what times, on which lines, and in which zones.
3)What type of sensor is it?

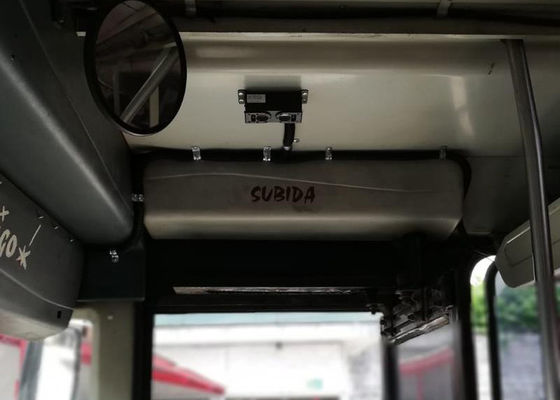

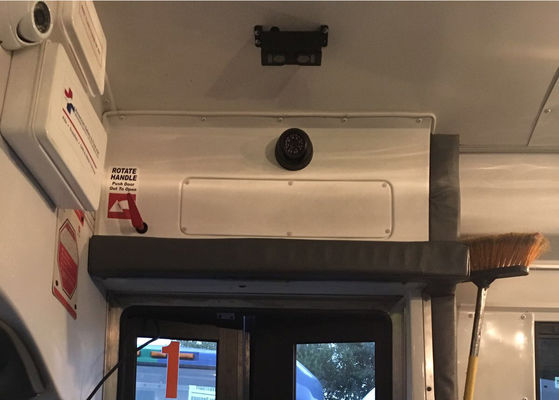

Re:The sensor (camera) is installed in the bus ceiling near an entrance and exit.
It is compact and easy to install.
A single sensor can count people getting both on and off.

4)Passenger counter and surveillance passenger cameras work with the same device or they work with their own one?

Re: we actually have 3 different models.

Model A is basic counter device

Model B is GPRS counter

Model C is HDD mdvr &counter all in one kit.

For model C, they supports 4ch recording, means you could connect max 4 another surveillance cameras with our main unit, so totally 2 counting cameras+ 4 surveillance cameras+ Main unit.



Please contact us for specific manual in details
